Remote Control Lever (R3 type)
CONTROLS AND FEATURES (R type)
REMOTE
CONTROL LEVER
NEUTRAL
REVERSE
FORWARD
NEUTRAL
FORWARD
REVERSE
REMOTE CONTROL LEVER
MAXIMUM
FORWARD
NEUTRAL
REVERSE
35° 35°
MAXIMUM
SHIFT
T
T
H
H
R
R
O
O
T
T
T
T
L
L
E
E
O
O
P
P
E
E
N
N
I
I
N
N
G
G
T
T
H
H
R
R
O
O
T
T
T
T
L
L
E
E
O
O
P
P
E
E
N
N
I
I
N
N
G
G
SHIFT
M
M
I
I
N
N
I
I
M
M
U
U
M
M
M
M
I
I
N
N
I
I
M
M
U
U
M
M
(SINGL
E TYPE)
(DUAL TYPE)

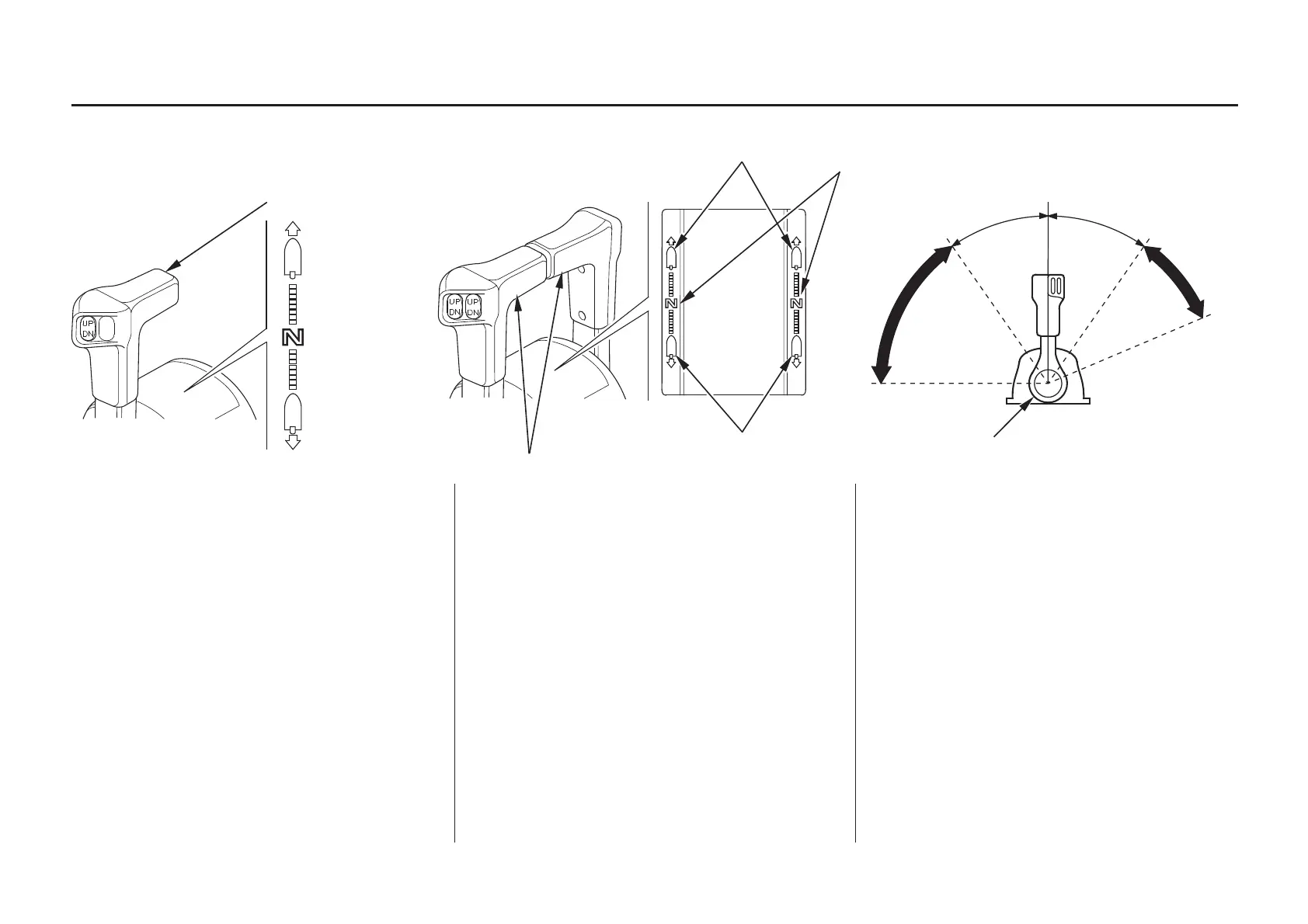

REMOTE CONTROL LEVERS
Shifting gear into forward, reverse,
or neutral and the engine speed
adjustment can be performed with
the remote control lever.
FORWARD: REVERSE:
Moving the lever to the FORWARD
position (i.e. approximately 35° from
the NEUTRAL position) engages the
gear into forward. Moving the lever
further from the FORWARD
position will increase the throttle
opening and the boat forward speed.
NEUTRAL:
Engine power is cut off from the
propelle r.
Moving the lever to the REVERSE
position (i.e. approximately 35° from
the NEUTRAL position) engages the
gear into reverse. Moving the lever
further from the REVERSE position
will increase the throttle opening and
the boat reverse speed.
