131
ReplacementInspection
MAINTENANCE

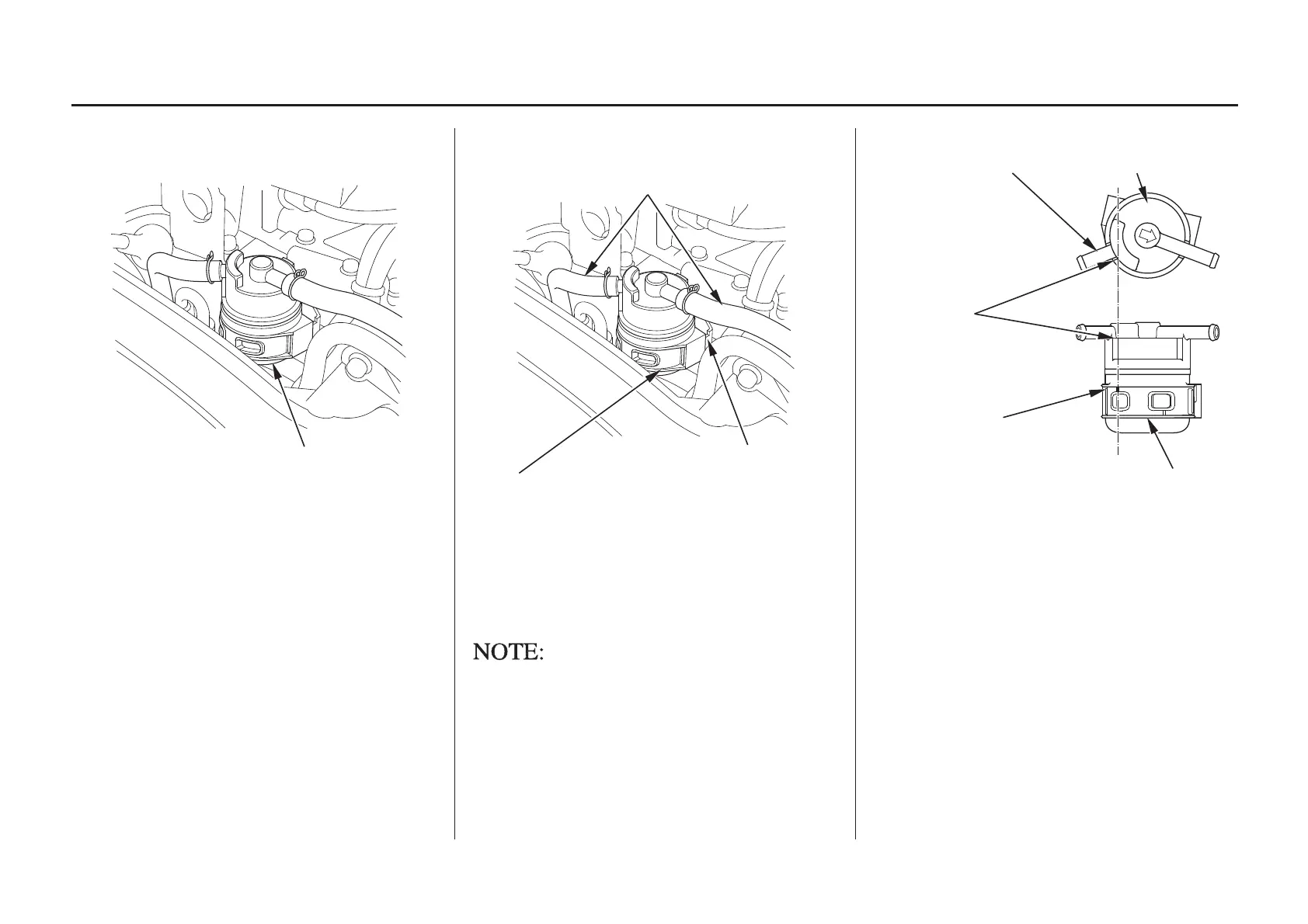

FUEL FILTER
(inside strainer cup)
FUEL TUBES
FUEL FILTER BRACKET
SUSPENSION STRAP
FUEL INTAKE
SIDE JOINT
EDGE AT
THE BASE
OF JOINT
FUEL FILTER
(inside strainer cup)
SUSPENSION STRAP
ALIGNMENT
MARK ON THE
SUSPENSION
Remove the engine cover (see
page ).
Looking through the translucent
strainer cup, check the fuel filter
for water accumulation and
clogging.
Before removing the filter, pinch the
fuel tubes on each side of filter using
tube clips to prevent fuel leakage.
If necessary, replace the fuel filter
with a new one.
Remove the suspension strap from
the fuel filter bracket, then remove
the strap from the fuel filter
assembly.
Disconnect the fuel tubes from the
fuel filter.
Install a new fuel filter in the
reverse order of removal.
Assemble the fuel filter with the
strainer cup by aligning the edge at
the base of the fuel intake side
joint of the fuel filter with the
alignment mark on the suspension
as shown above.
1.
2.
1.
2.
3.
