STARTING THE ENGINE
START
(H type) (R1 type)
THROTTLE
GRIP
‘‘ ’’ MARK
FAST IDLE LEVER
START
AC GENERATOR ROTOR
EMERGENCY
STARTER ROPE
KNOT

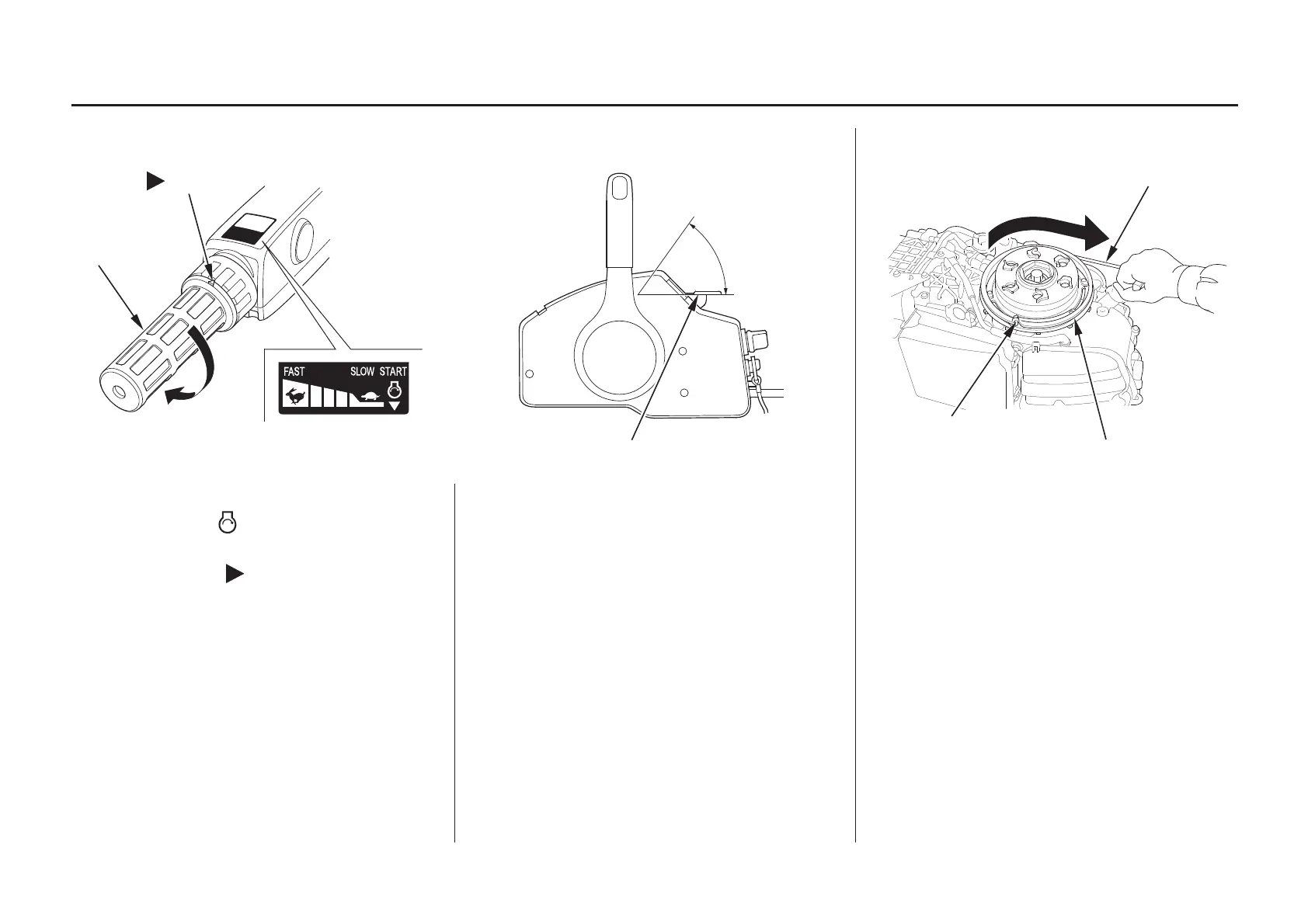

Align the (start mark) on
the throttle grip with the projected
end of the mark on the
tiller handle.
Leave the fast idle lever in the
START (fully lowered) position.
Set the AC generator rotor so the
cutouts are on the right and left
sides of the AC generator rotor as
shown. Hook the knot at the end of
the starter rope (accessory) against
a cutout in the AC generator rotor
and wind the starter rope one and
half turns clockwise along the
groove in the AC gener ator rotor.
8.7. H type:
R1 type:
