5.2 Zone menu
The menu of the 8 zones (1) allows the display of an overview of the configured zones and a programming of
individual zones.
3
1 Gruppe
2 Steuergruppen
- Melder/Koppler
4 Ausbau
5 Einstellungen
6 Überprüfen und speichern
Konfiguration
3
3 3
zone
zone : <- 0021->
type : system input
hardware : IN_1
text1 : ATU activated
text2 : IN_1 Mainboard
1
1
2
ABC
3
DEF
3
- Übersicht kompakt
2 Übersicht
3 Einzelauswahl
- Sammelzuweisung
Gruppen
3
1 type : system input
2 hardware : IN_1
latched : off
4 ctrl. funct. : ATU active
5 for ctrl. zone : 0001
6 label 1 : [ATU activated ]
7 label 2 : [IN_1 Mainboard ]
zone <-0021-> 1/2
3
1 0001 : O-Detectors 6x esserbus
2 0021 : ATU activated IN_1 Mainboard
3 0022 : FTU fault IN_2 Mainboard
4 0023 : ESI activated IN_3 Mainboard
5 0024 : ESI fault IN_4 Mainboard
6 0025 : Control Input F1 HMI
7 0026 : Control Input F2 HMI
zone overview <- -> 001 / 002
3
1 zones
2 control zones
- detector/transponder
4 configuration
5 settings
6 verify and save
configuration
3
3
1 overview compact
2 overview
3 select single assignment
- multiple assignment
zones
3

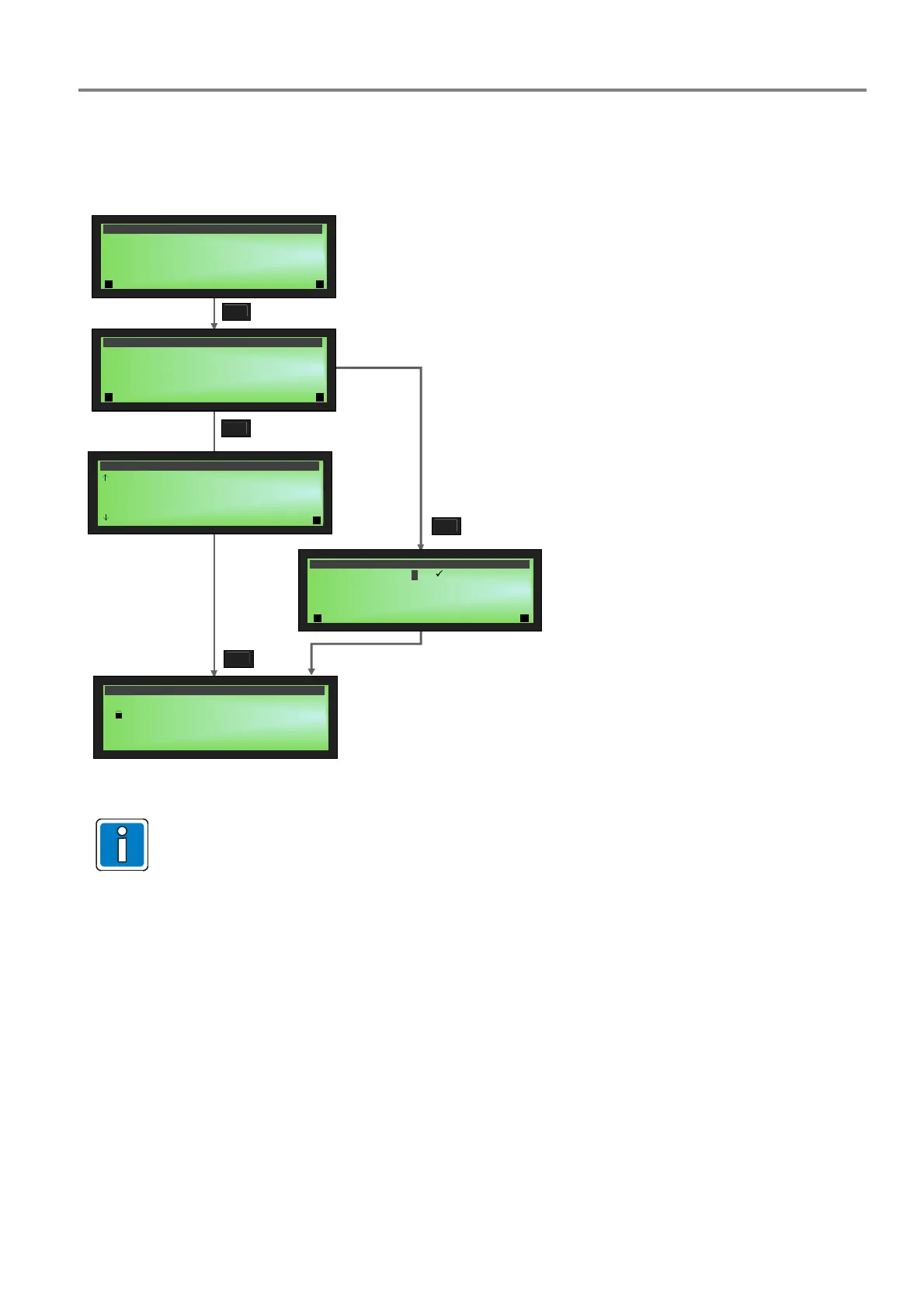

Fig. 24: >Zone< menu screens
The panel keyboard can only be used to edit zones that are not assigned to the loop. The
esserbus
®
subscribers must be configured using the service and programming software tools 8000.
