Fire Alarm Control Panel Compact
24 FB 798238.GB0 / 10.14
5.6 Single assignment ATU output incl. parallel triggering
The esserbus
®
subscribers must be configured using the service and programming software
tools 8000. The menus displayed here can be used for smaller temporary changes and may differ
from the figures.
1
2ABC
3 3
control zone
control zone : +0001+
control 1
3
1 overview (all)
2 overview (ATU)
3 overview (sounder)
4 overview (FPE/FIE)
5 select single assignment
- multiple assignment
control zones
3
5JKL
3
1 function type : ATU
2 hardware
3 inverted : off
4 trigger events : 0
5 pulse duration (s) : off
6 pulse latched : off
7 trigger prevention : 0
*control zone >0006<
3
3
function type
1 ATU
2 sound
3 FPI
4 ESI
5 common
6 not used
6MNO
3 3
control zone |0006<
control zone : +0006+
control 6
CLR
3
1 zones
2 control zones
- detector/transponder
4 configuration
5 settings
6 verify and save
configuration
3

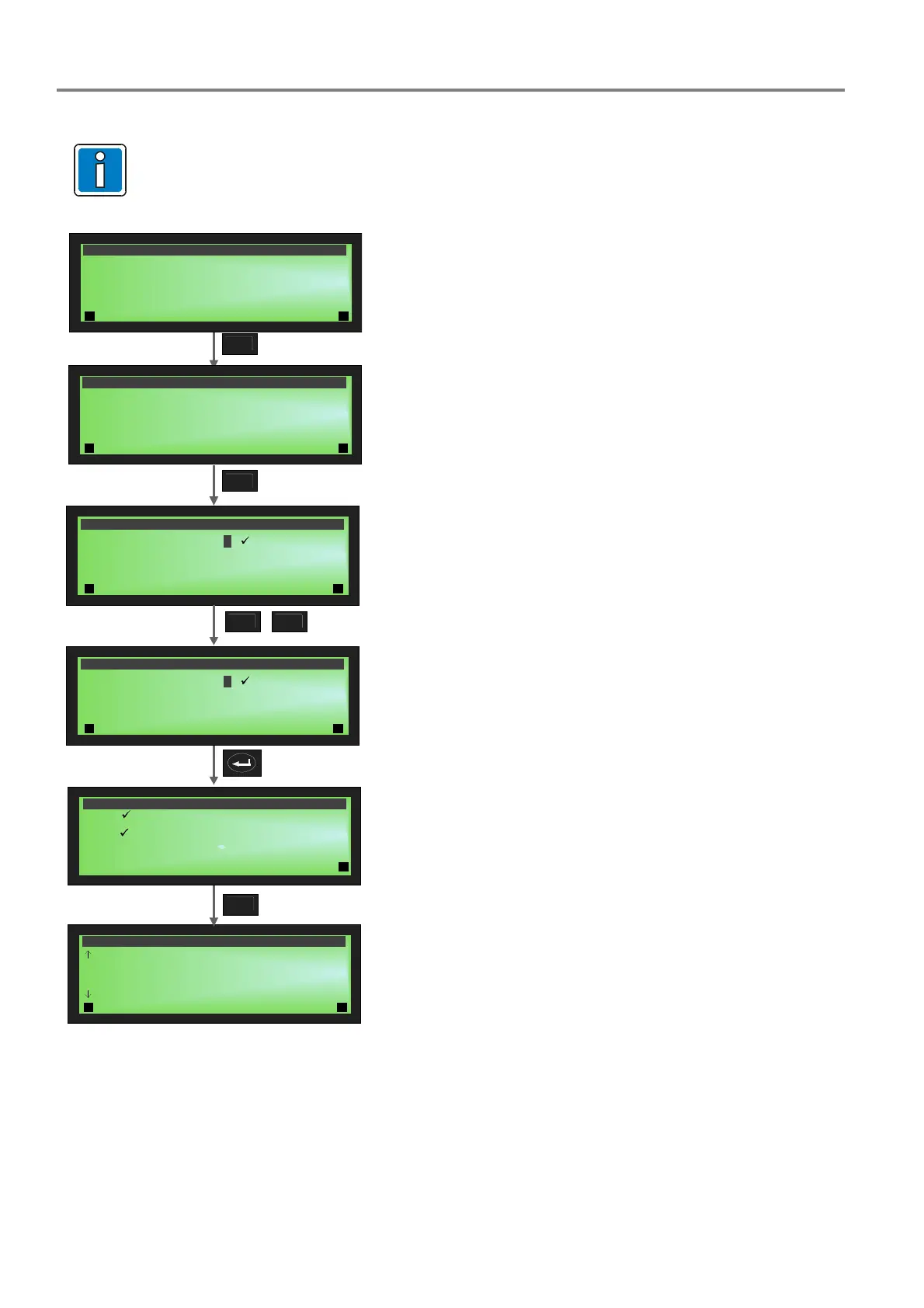

Fig. 36: >Select single assignment< menu screens
Control zones select single assignment
Select control zone e.g. 6
Select ATU function type
