9 Fault diagnosis and correction
9.1 Battery fault
1. battery fault 14:45 12.08
low voltage
4
GHI
Code
Code
1
2
ABC
1 access level 3
service
3
service
1 event log
2 battery information
3 earth fault information
4 configuration
5 access level 4
- maintenance mode
1 information
2 overview
3 operate
4 enter access level 3
main menu
2 2
3
1 refresh
main board
voltage in V [>21.2] : 20.8
int. resistance mOhm [< 600] : 290
temp. (degree C) [-5...+45] : 24.0
charging current [<1.4] : 0.0
battery information 1/2
3
code entry
code: ****
code entry
code: ****

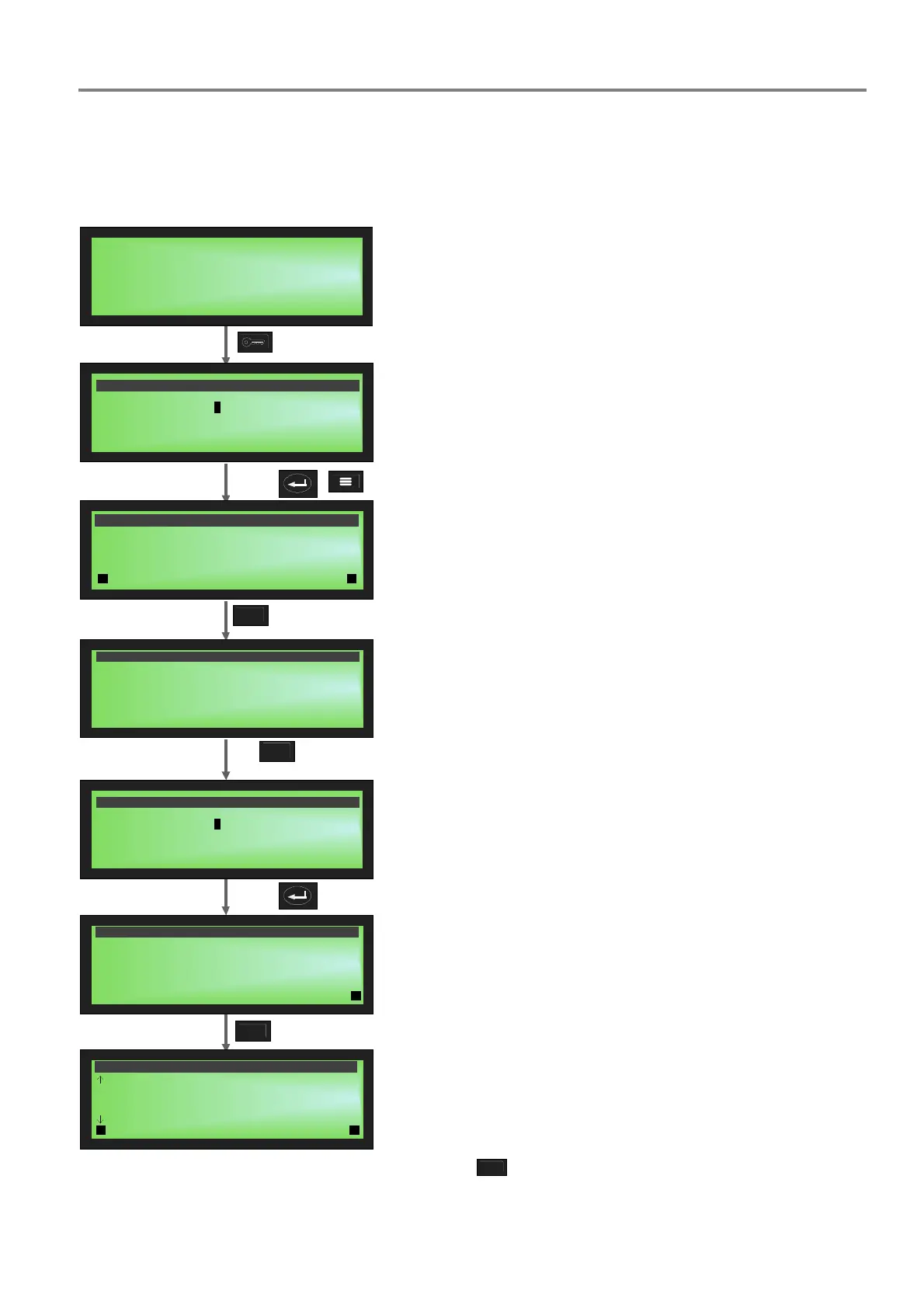

Fig. 64: Battery fault
Example: battery fault warning
Enter access code
Main menu
Service
Enter access code for installer level.
Battery information
Check voltage in V:
Current value is = 20.8 V (voltage is too low – correct fault)
The target value for the battery voltage is shown in the brackets
– here (> 21.2 V).
Press the
1
key to update the measurement.
