Fire Alarm Control Panel Compact
16 FB 798238.GB0 / 10.14

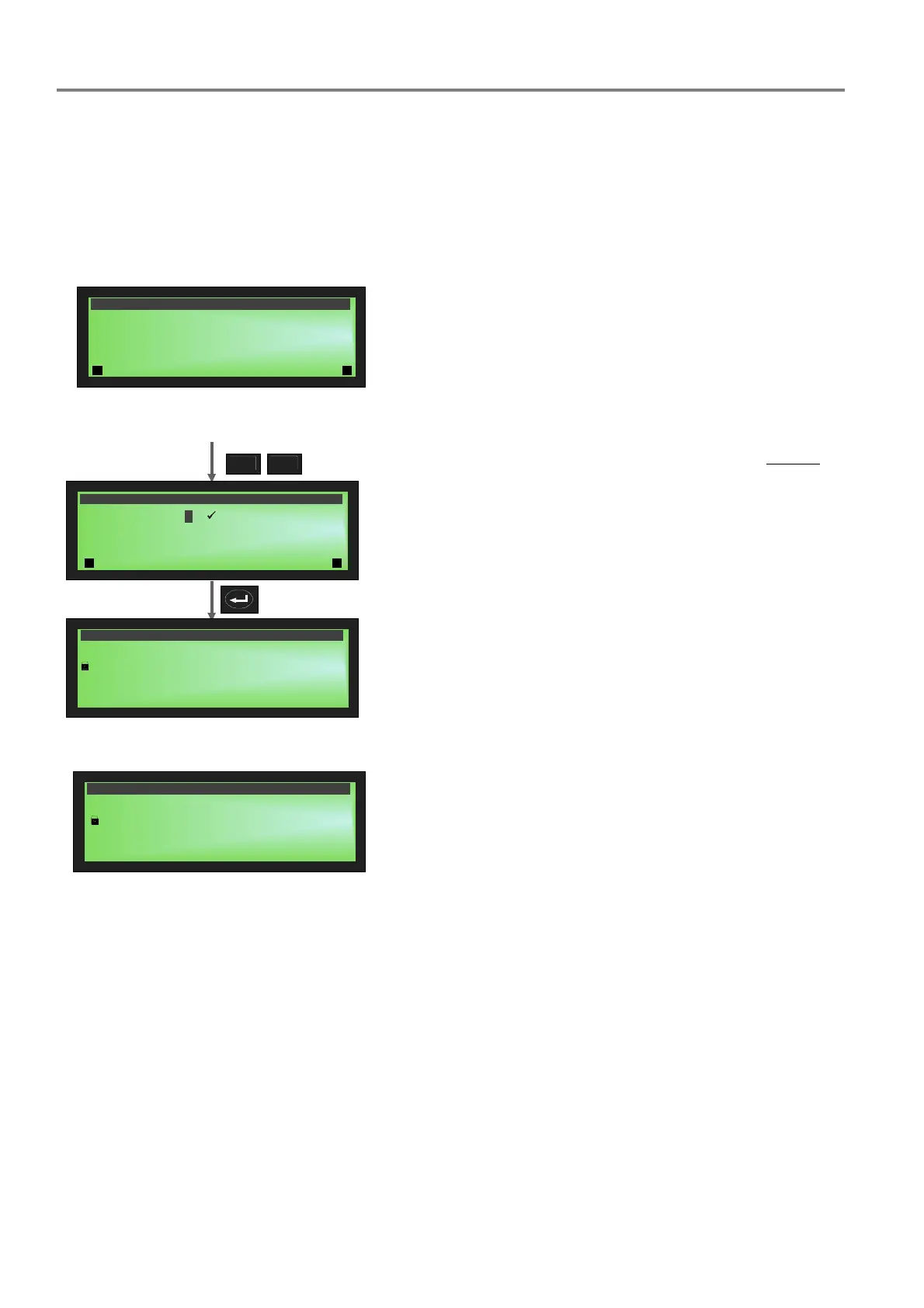

5.3 >Overview zones< / >Overview< / >Select single assignment< menu
Select the zone with the 0-9 key.
In the >Select single assignment< menu, an existing zone can be selected by searching with the left/right arrow
keys or by directly entering the number with the panel keyboard.
The additional text – if programmed – and the “tick” are displayed if the entered number is found in the customer
data.
3
- overview compact
2 overview
3 select single assignment
zones
3
Select the desired zone from the corresponding list
(1, 2, 3) – example with zone 0021.
3 3
zone
zone : <-0021->
type : system input
hardware : IN_1
text 1 : ATU activated
text 2 : IN_1 Mainboard
1
2
ABC
1 type : system input
2 hardware : IN_1
latched : off
4 ctrl. funct. : ATU active
5 for ctrl. zone : 0001
6 label 1 :
[
ATU activate
]
7 label 2 :
[
IN_1 Mainboard
]
zone <-0021->
Fig. 25: Control inputs
When the panel keyboard is used for configuration, no new
zones can be created. Only existing zones can be edited.
The zone menu has several pages. The individual items toggle
between On and Off or, in the case of multiple options, have a
sub-menu. The menu items are displayed dynamically according
to type (see next Fig.). In the case of >Hardware<, the location
and an identification number is assigned and displayed.
If “control input” is selected as a type, all now no longer
available menu items will be directly filtered. The number of
coming and going events are displayed for the control function
menu item.
1 type : system input
2 hardware : IN_1
latched : off
4 ctrl. funct. : ATU active
5 for ctrl. zone : 0001
6 label 1 : [ATU activated ]
7 label 2 : [IN_1 Mainboard ]
Gruppe <-0021->
Fig. 26: System inputs
In the case of system inputs, the individual control function (e.g.
ATU triggered) is directly displayed because a system input is
only assigned to a single control function.
