3 System configuration via panel keyboard
The FACP Compact is configured by using the programming software tools 8000.
Quick and some usual temporary settings, excepted esserbus
®
devices, may be configured via the display menu
of the Fire Alarm Control Panel.
Basically there are two different access levels to operate the FACP with level 3 (Installer) and 4 (System)
features. The menu of the system level (4) provides extended configuration options.
The service functions for the installer are only displayed in access level 3!
The display content can differ from the illustrations in this document due to building-specific
programming.
1 language : english
2 date : 01.06.2012
3 time : 17:44:55
4 template : factory setting
5 safe modifications
configuration
The language, date, time and optionally the
configuration template settings are displayed after
the FACP has been switched on for the first time.

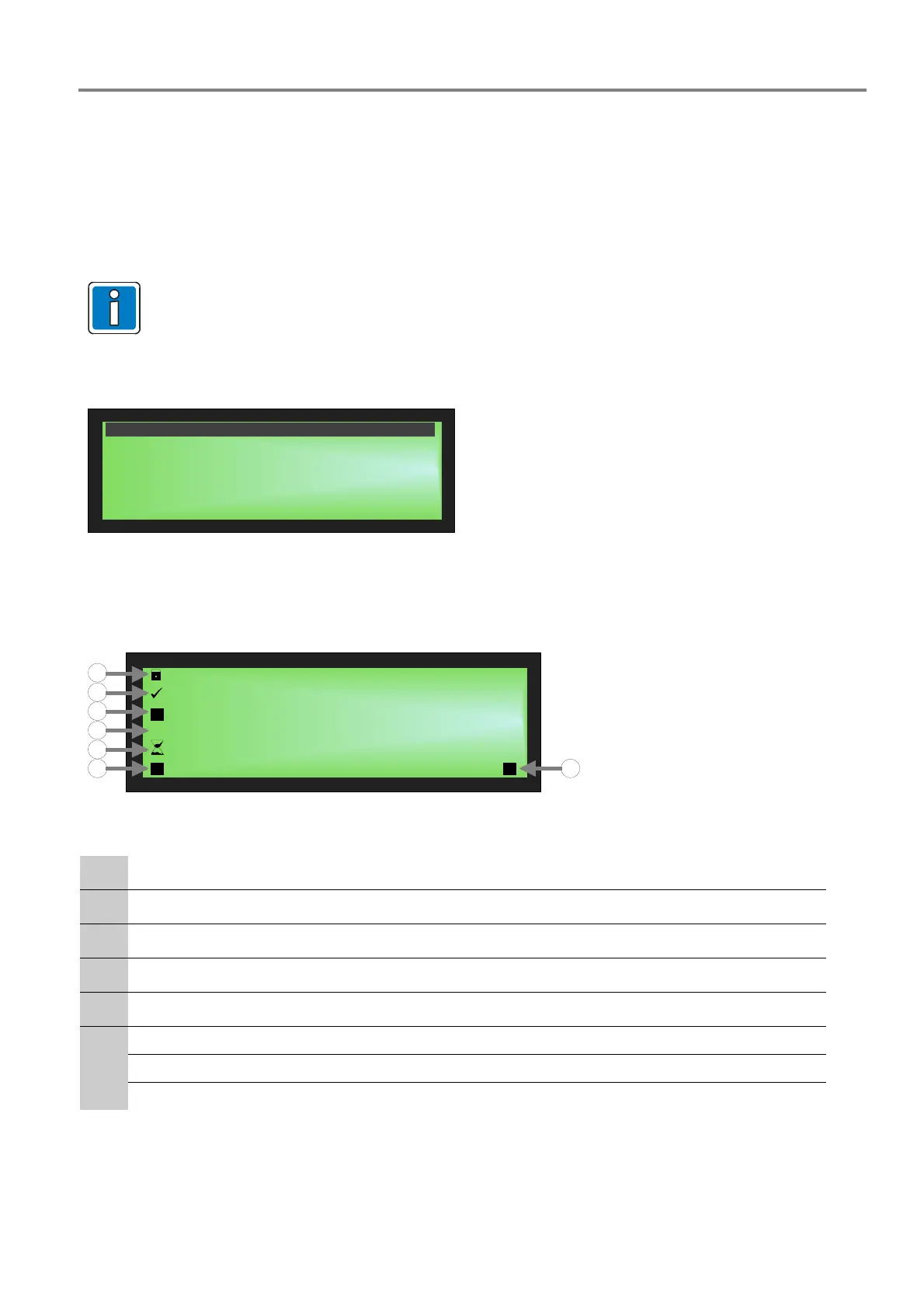

Fig. 4: Settings
3.1 Display and keyboard
3 3
1
6
3
2
6
5
-
4
Fig. 5: Symbols in the display
Unchangeable option
Selected / found in quick selection menus, the current selection is shown
Cursor position (blinks during operation)
Option cannot be selected at this stage of extension
Function is being executed
2 Access level 2 (operator password)
3 Access level 3 (installer level)
4 Access level 4 (system level)
To Next Page
