Fire Alarm Control Panel Compact
FB 798238.GB0 / 10.14 41
8.1 Programming an output as ‘unused’
This function allows an output (control zone) to be configured as >unused<. Outputs with the >unused< function
type are not activated.
2ABC
5JKL
1
1
6MNO
3
1 zones
2 control zones
- detector/transponder
4 configuration
5 settings
6 verify and save
configuration
3
3
1 overview (all)
2 overview (ATU)
3 overview (sounder)
4 overview (FPE/FIE)
5 select single assignment
6 multiple assignment
control zones
3
3 3
control zone
control zone : +0001+
control 1
3
1 function type : ATU
2 hardware
3 inverted : off
4 trigger events : 0
5 pulse duration (s) : off
6 pulse latched : off
7 trigger prevention : 0
*control zone >0001<
3
3
1 function type : not used
2 hardware
3 inverted : off
4 trigger events : 0
5 pulse duration (s) : off
6 pulse latched : off
7 trigger prevention : 0
*control zone >0001<
3
3
function type
1 ATU
2 sound
3 FPI
4 FIE
5 common
6 not used
7 unchanged
>Configuration< menu item
Select control zones
Select single assignment
Select control zone (Example: control zone 0001)
Function type
Select not used
 Save entry (continue with ESC)
ESC  Cancel entry or exit sub-menu

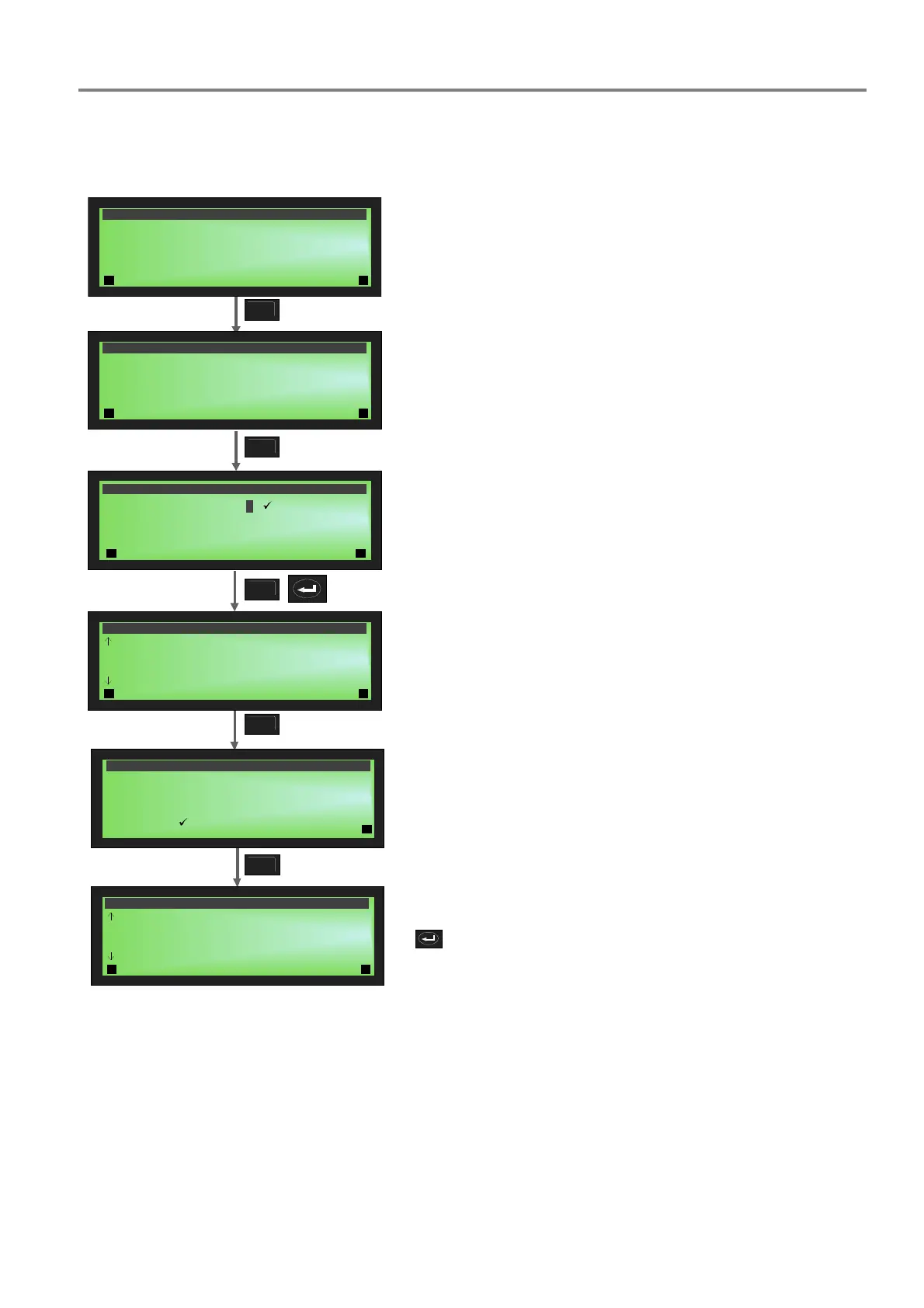

Fig. 62: Output with >unused< function type
