9.2 Zone fault
3
DEF
1. trouble zone:0001 14:45 12.08
text
wire break
1 zone/detector
2 control zone
3 primary loop
operate
2 2
2 2
zone / detector
1 zone : 0001
2 detector : ---
3 on
4 off
5 test
6 sensors
state : idle
1
6
MNO
1 zone : 0003
2 detector : ---
3 on
4 off
5 test
6 state : detector fault
2 2
zone / detector
Code
code entry
code: ****
1 information
2 overview
3 operate
4 enter access level 3
main menu
2 2

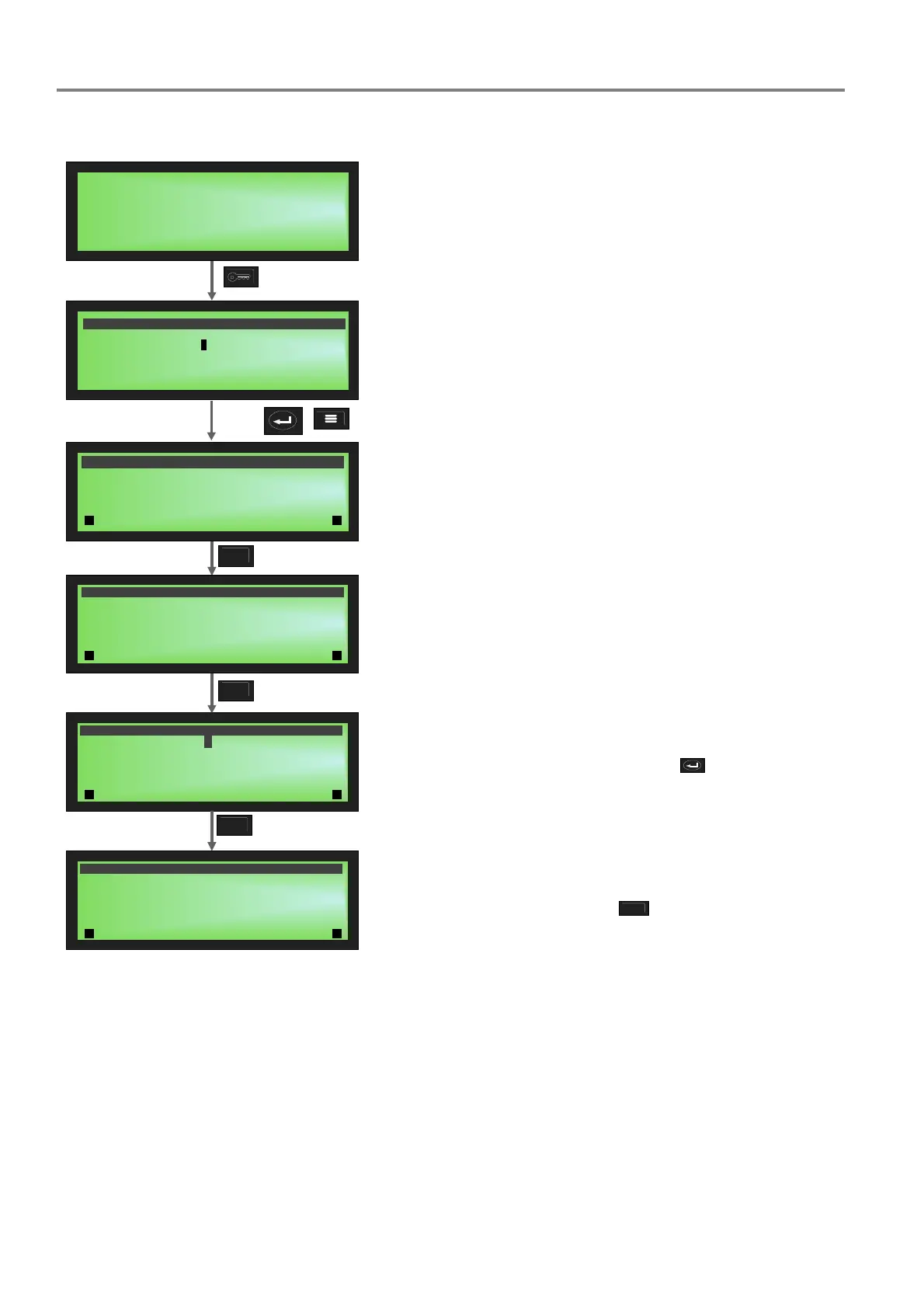

Fig. 65: Zone fault
Example: Fault warning for detector zone (here zone 0001)
Enter access code
Main menu
Zone / detector
Select the zone (enter the zone number).
Detector zone with fault: after correcting the fault, check the
status again and switch on zone
3
DEF
(resets the zone fault).
