Fire Alarm Control Panel Compact
FB 798238.GB0 / 10.14 45
9.3 ATU fault / Acoustic fault / FPE fault
The example shows an ATU fault. Acoustic and FPE faults are shown similarly.
3DEF
2ABC
1
5JKL
4GHI
Code
1. trouble control:0005 14:45 12.08
alarm MB
wire break
2 2
control zone
2 2
control
control : +0001+
control zone 1
code entry
code: ****
1 information
2 overview
3 operate
4 enter access level 3
main menu
2 2
1 zone/detector
2 control zone
3 primary loop
operate
2 2
2 2
control zone
2 2
control zone
1 number : <-0001->
2 on
3 off
- activation
state : idle
text 1 : ATU
text 2 : Out_1 mainboard
1 control zone : <-0003->
2 on
3 off
- activation
state : wire break
text 1 : sounder
text 2 : Out_1 mainboard
1 number : <-0003->
2 on
3 off
- activation
state : idle
text 1 : sounder
text 2 : Out_1 mainboard

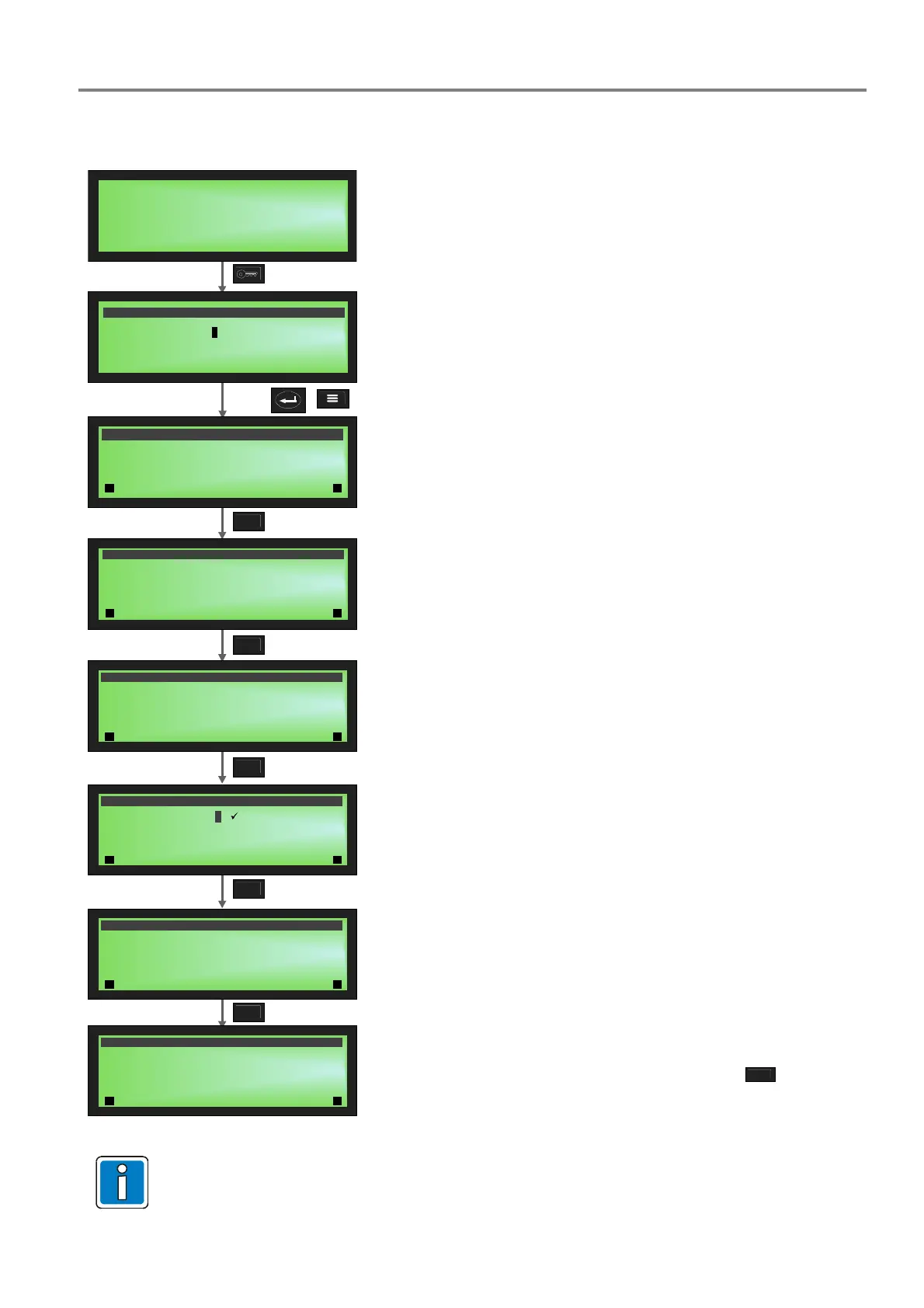

Fig. 66: ATU fault (example)
ATU fault warning
Enter access code
Main menu
Operate
Control zone
Select control zone
Correct fault
After correcting the fault, switch on the control
2
ABC
and check
the status again.
FIP/FOP fault
A FIP / FOP (Fire Brigade Indicating Panel / Fire Brigade Operating Panel) is displayed according
to the event. The fault warning is only displayed if the fault cause exists.
