Fire Alarm Control Panel Compact
8 FB 798238.GB0 / 10.14

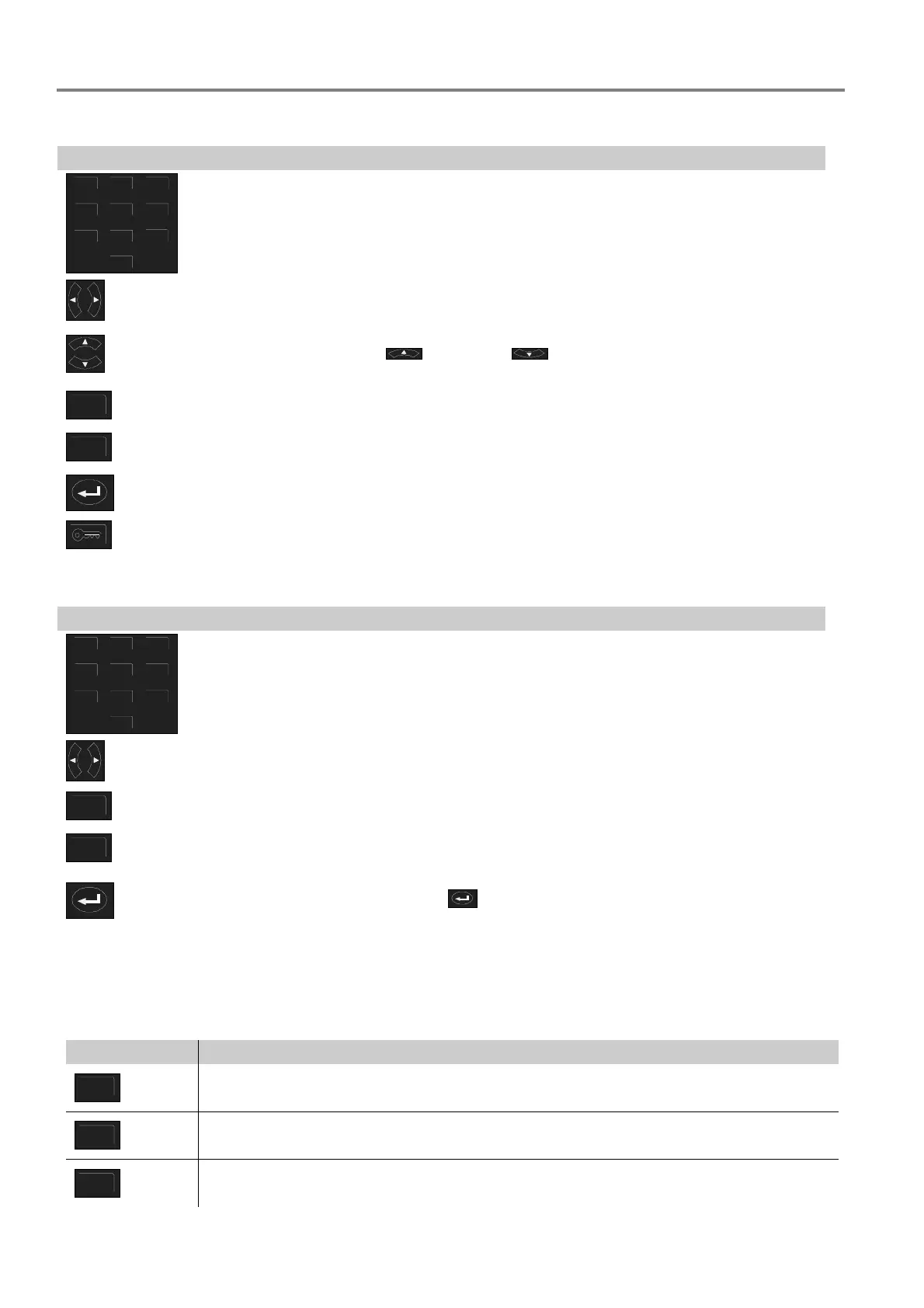

Navigation
Key Function
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
0
Selection of a menu item and branching off to submenus. For some menu items, the
keys allow a direct selection (toggle function) for changing the configuration.
In the case of menu items with value entry, the cursor jumps directly to the value to be
changed and the new value can then be entered directly.
Navigation between data records
(recognisable by the arrows on the right and left in the first line).
Scrolling to the previous or next page in the case of a multi-page menu.
Scroll the display with the
key and the key; the current page number and
number of pages will be displayed.
CL R
Deleting the character at the current cursor position.
Cancelling the change is done with the ESC key.
ESC
Exiting the sub-menu. If the data was not saved, you will be asked if the data should be
saved.
Stores the set values.
Exit levels 2...4 and query for saving the changes.
Entering text
Key Function
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
0
Entering a character. Entered character are “inserted” towards the left.
Text can be entered in the same way as with an SMS keypad.
Moving the cursor to the next position.
CL R
Deleting the current cursor position and moving the cursor and all following characters
one place to the left.
ESC
Exiting the input mode without saving the data. The condition before the start of the text
processing will be restored.
Exiting the input mode with saving of the data. If the data record has not been changed,
a ”*“ will appear at the top left. The
key must then be pressed again to save the data
to RAM.
Function keys F1 to F3 *
The function keys are programmed in accordance with local requirements. The programmed functions can be
entered in the following table:
Key Function
F1
F2
F3
* Please enter selected programming
To Next Page
