Honeywell ESSER Fire Alarm Control Panel Compact - Trigger Event Programming; Configuring Trigger Events

Fire Alarm Control Panel Compact
FB 798238.GB0 / 10.14 25
Trigger events
4
GHI
3
trigger events
1 event 1 : none
2 event 2 : none
3 event 3 : none
4 event 4 : none
5 event 5 : none
6 event 6 : none
7 event 7 : none
1
3
event 1
1 type : none
3
3
type 1/4
1 none
2 panel state
3 activation zone(s)
4 activation detector(s)
5 fault zone(s)
6 fault detector(s)
7 deactivation zone(s)
2
ABC
1
3
*event 1
1 type : panel state
2 state : fire
3
3
1 function type : ATU
2 hardware
3 inverted : off
4 trigger events : 0
5 pulse duration (s) : off
6 pulse latched : off
7 trigger prevention : 0
*control zone >0006<
3

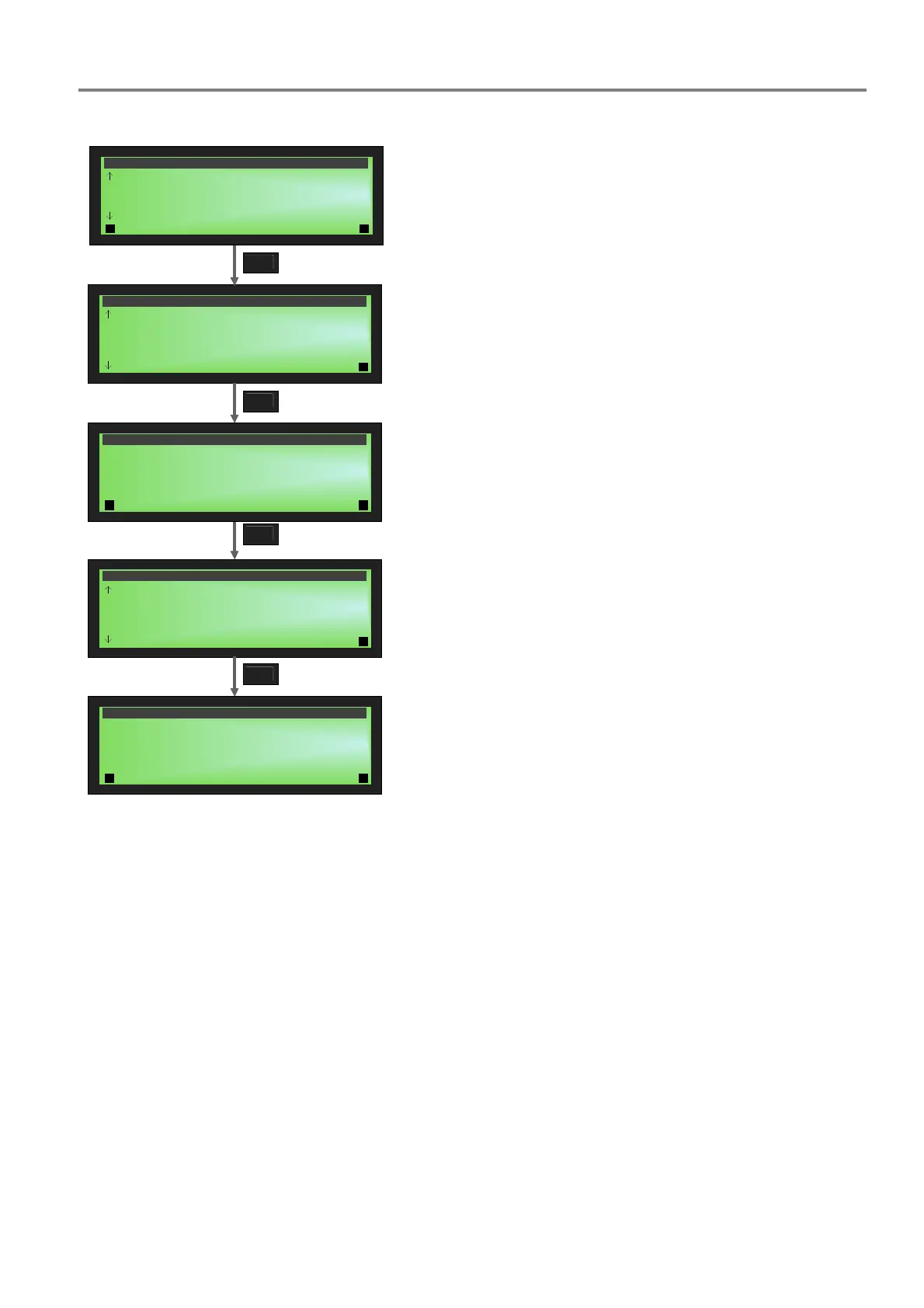

Fig. 37: >Trigger events< menu screens
Trigger events
Event 1
Type
Panel state
In the event of alarm, all zones programmed with ‘”fire” will
trigger the ATU.
