EXCEL 50 MMI - USER GUIDE
19 EN2B-0222GE51 R0216

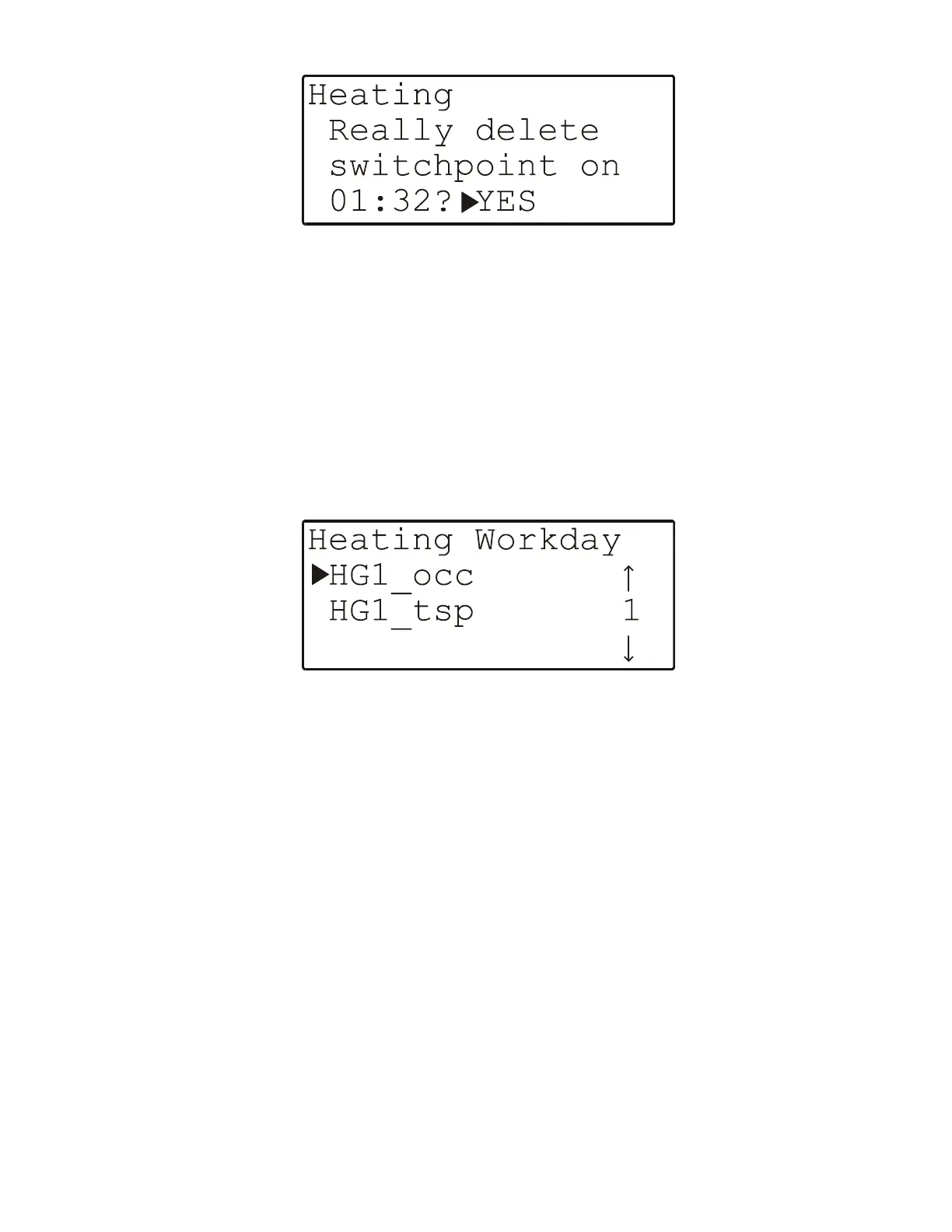

Fig. 23. Deleting a switch-point
Creating a Switch-Point
Switch-points are defined by selecting desired data-points from a list of all
possible data-points valid for the given daycycle and then editing the
corresponding value/state and clock-times (i.e. switch-points).
To do this, move to the listbox displayed in Fig. 18 and press the PLUS key. In the
resultant screen (see Fig. 24), you will be presented with a list of all possible data-
points valid for this daycycle.
Fig. 24. Creating a switch-point
Move the cursor to the data-point for which switch-points are to be defined and
confirm.
A screen resembling Fig. 19 or Fig. 20 (as the case may be) will then appear. Edit
the value/state and switch-point(s) as desired and confirm.
The 'Weekly' Time Schedule
Selecting the "Weekly" time schedule will cause a listbox with a corresponding
heading (containing the given time program and, next to it, the word "Weekly") to
appear (see Fig. 25).
