Configuring Event Settings | 105
800-21090V2 - A - 03/2016

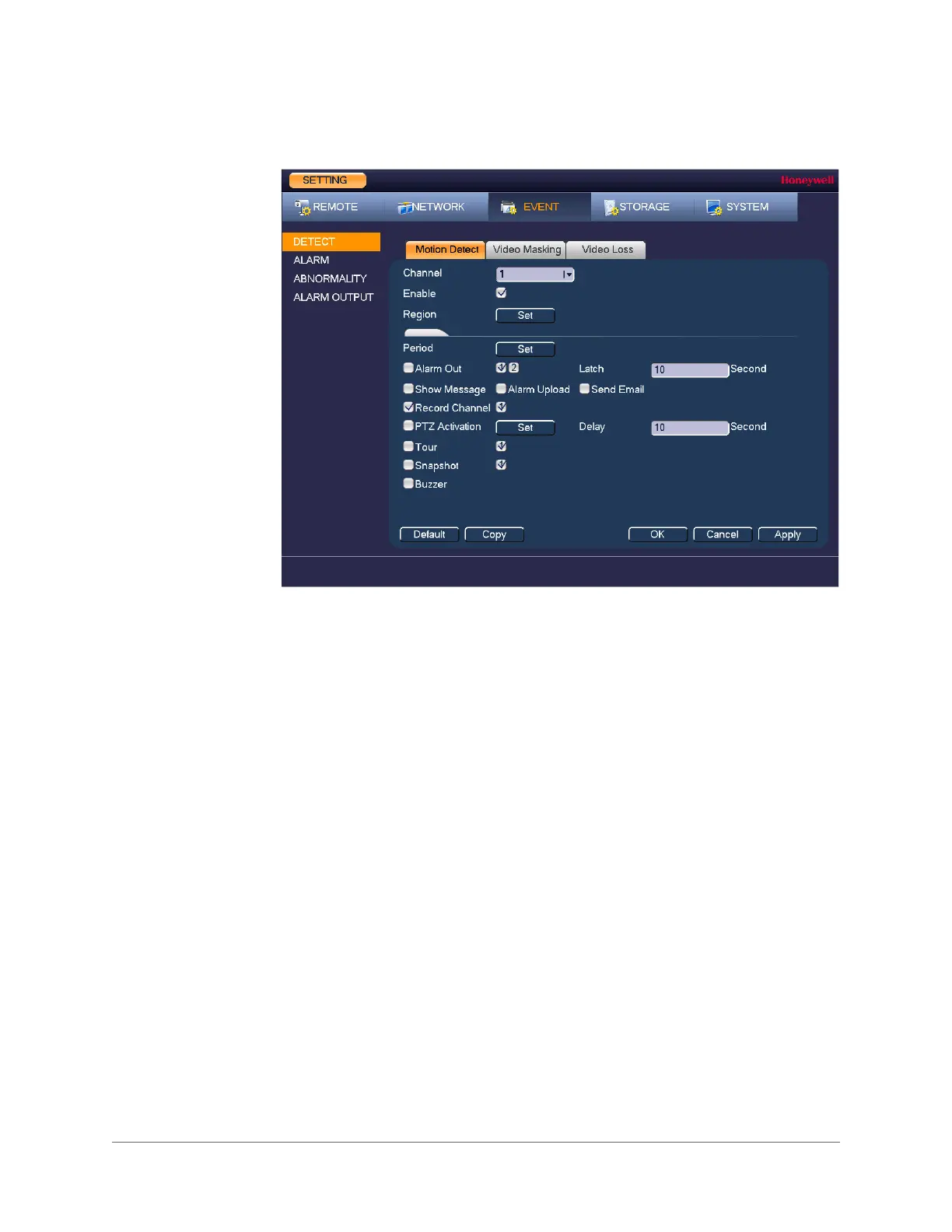

Figure 8-5 Motion Detection Configuration Tab
2. On the Motion Detect tab, select the actions that you want the system to initiate when a
motion detection event occurs:
3. Click Apply to save your settings.
•Alarm Out
Select the alarm output(s) (
1
or
2
) that you want to activate. In the
Latch
box, specify the amount of time (1–300 s) to delay the alarm output
signal after a motion detection event is triggered.
•Show Message
Select the check box to enable a pop-up message on your local host PC.
•Alarm Upload
Select the check box to enable the system to upload an alarm signal to
the network (including to an alarm center and/or web client).
•Send Email
Select the check box to enable the system to send an email notification.
If the
Snapshot
function is enabled, an image can be attached to the
email.
• Record Channel
Select the channel(s) that you want to record. In the
Delay
box, specify
the amount of time (1–300 s) to delay recording after a motion detection
event is triggered.
Note You also need to set the motion detection recording period.
Go to Storage > Schedule to configure the current channel
for scheduled recording. See Configuring the Video
Recording Schedule on page 63.
• PTZ Activation
Select the check box to activate PTZ functions, and then click
Select
. In
the
PTZ Activation
window, for each PTZ camera, select the preset,
tour, or pattern that you want to be called when a motion detection event
occurs, and then click
OK
.
•Tour
Select the check box to enable a tour of the selected channels.
•Snapshot
Select the check box to take a snaphot of selected channels.
• Buzzer
Select the check box to activate a buzzer noise at the NVR.
