Network Video Recorder Components
For NVR specifications, please see Appendix D on page 173.

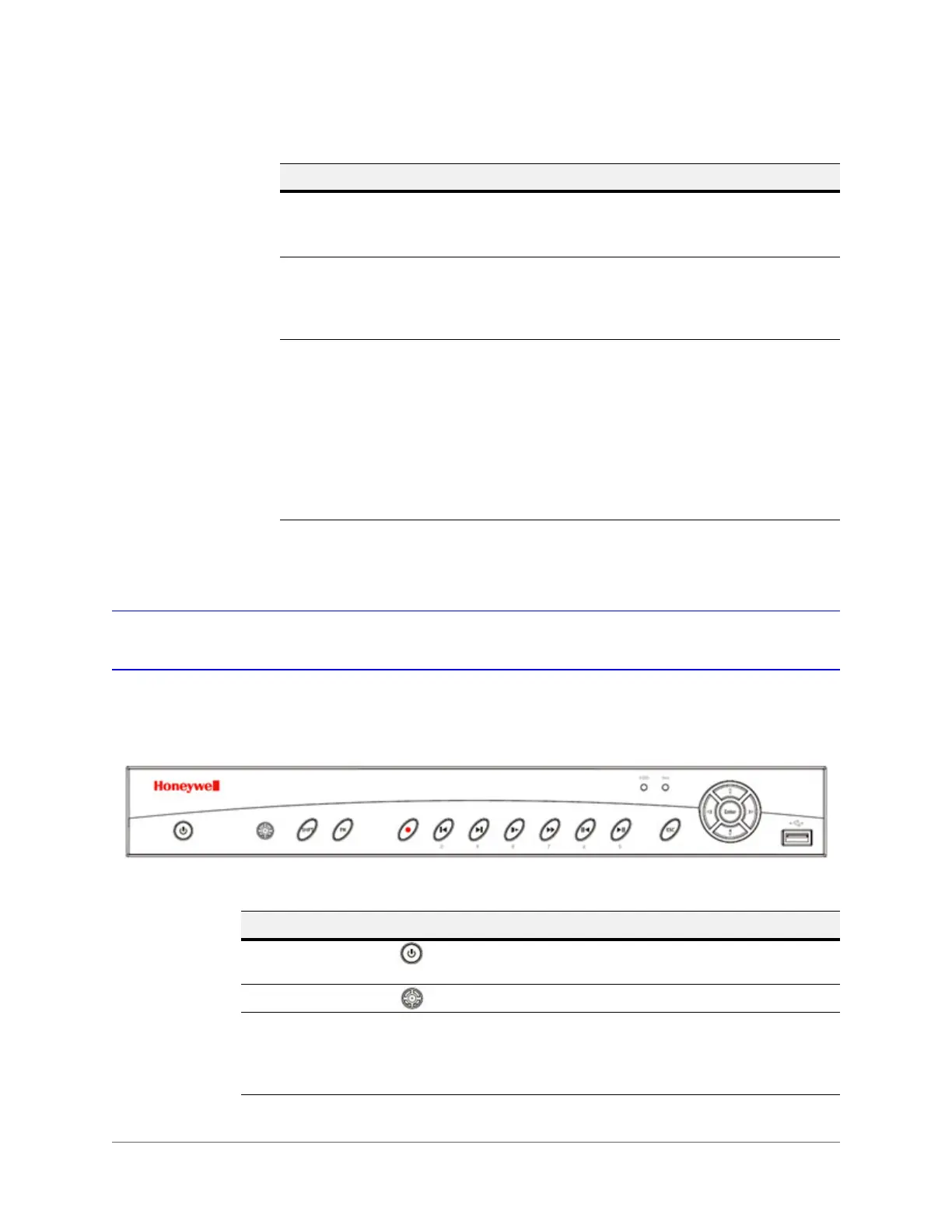

Figure 1-1 NVR Front Panel
Network Management • Supports NVR configuration and management through
the Ethernet.
• Supports device management through the Internet.
Peripheral Equipment
Management
• Supports peripheral equipment management such as
protocol setup and port connection.
• Supports transparent data transmission such as RS232
(RS-422) and RS485 (RS-485).
Auxiliary • Supports switching between NTSC and PAL.
• Supports viewing real-time system resources information
and running statistics display.
• Supports log file.
• Supports local GUI output and shortcut menu operation
with a computer mouse.
• Supports IR control using shortcut menu operation with a
computer mouse.
• Supports IP camera remote video preview and control.
Table 1-1 IP Cameras Features
Category Features
Table 1-2 NVR Front Panel Components
Component Name Icon Function
Power Button Power button. Press this button for three seconds
to boot up or shut down the NVR.
IR Receiver Receives the signal from the remote control.
Shift SHIFT • When the cursor is in a textbox, click this
button to switch between numbers and letters
(lower case/upper case).
• Enable/disable a tour.
To Next Page
