132 | Performance Series Full PoE Network Video Recorder User Guide
Configuring RS232 Settings
To configure RS232 settings
1. Go to Main Menu > SETTING > SYSTEM > RS232.

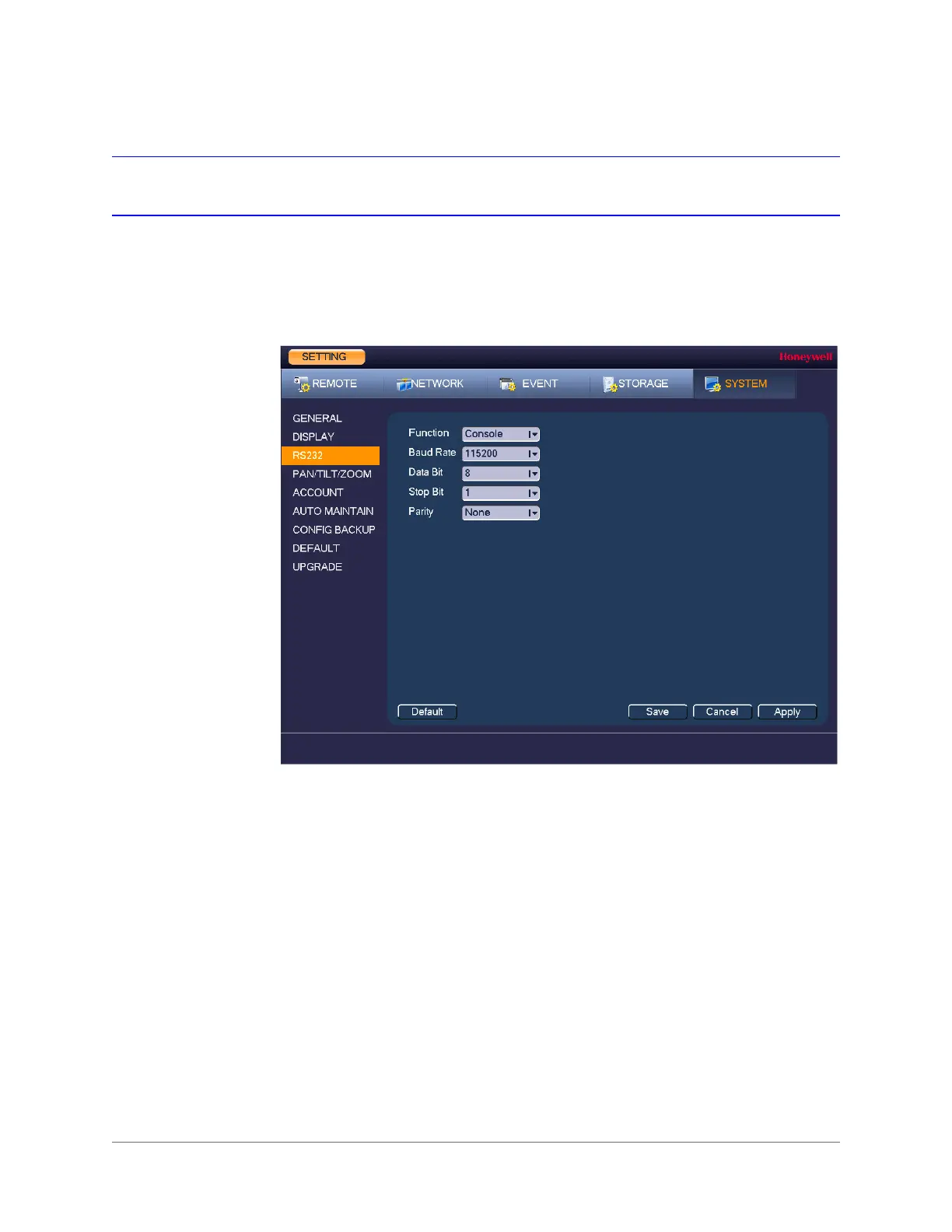

Figure 10-7 RS232 Configuration Window
2. Configure the following settings:
3. Click Apply to save your settings.
4. If you want to save your settings and exit the SETTING menu, click Save.
•Function Select Console, Adapter, or NetKeyboard, depending on the
type of RS232 device that you have connected to the NVR.
•Baud Rate Select a value between 1200 and 115200. The default setting is
115200.
• Data Bit Select a value between 5 and 8. The default setting is 8.
•Stop Bit Select 1, 1.5, or 2. The default setting is 1.
•Parity Select None, Odd, Even, Mark, or Space. The default setting is
None.
