Viewing Information | 155
800-21090V2 - A - 03/2016

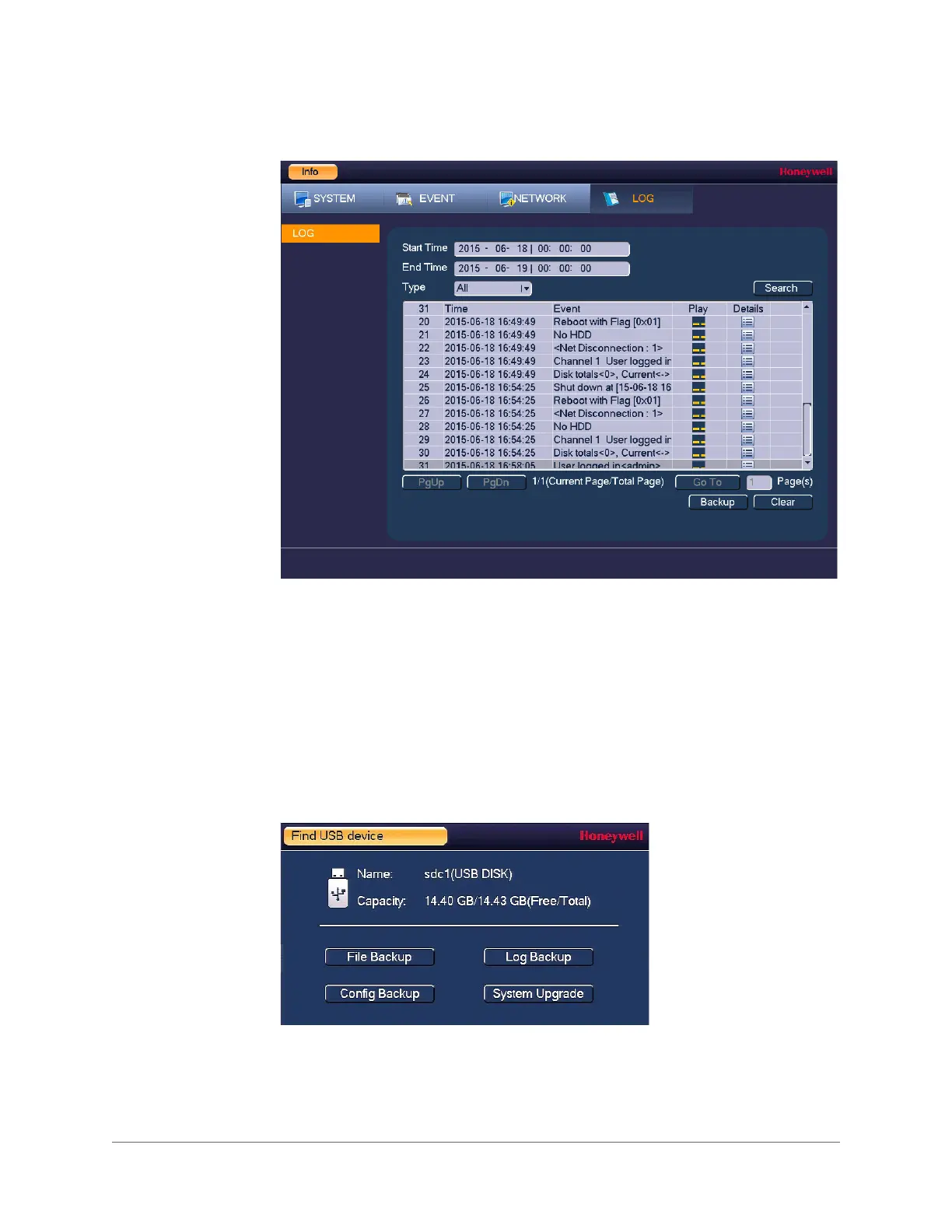

Figure 11-11 Viewing Log Information
2. In the Start Time and End Time boxes, enter the time period to search.
3. In the Type box, select a specific log type to view (System, Config, Storage, Alarm,
Record, Account, Clear, Playback) or select All to view all logs, and then click Search.
The search results are displayed in an ordered list. The NVR can save up to 1024 log files.
4. To view more details about a log entry, click Details.
To back up log information to an external USB storage device
1. Insert a USB storage device (such as a USB flash drive) into one of the USB ports on the
NVR. The Find USB device dialog box opens.
Figure 11-12 Find USB Device Window
2. In the Find USB device dialog box, click Log Backup.
3. On the Log page, click Backup. The log file (FileLog.txt) is located in a folder named
Log_[YYYYMMDDhhmmss] on your storage device.
