Fire Alarm Control Panel LT-32 / LT-159
12 M-168.1-SERIE-LT-EN / 08.2022
4.1 Mechanical specifications

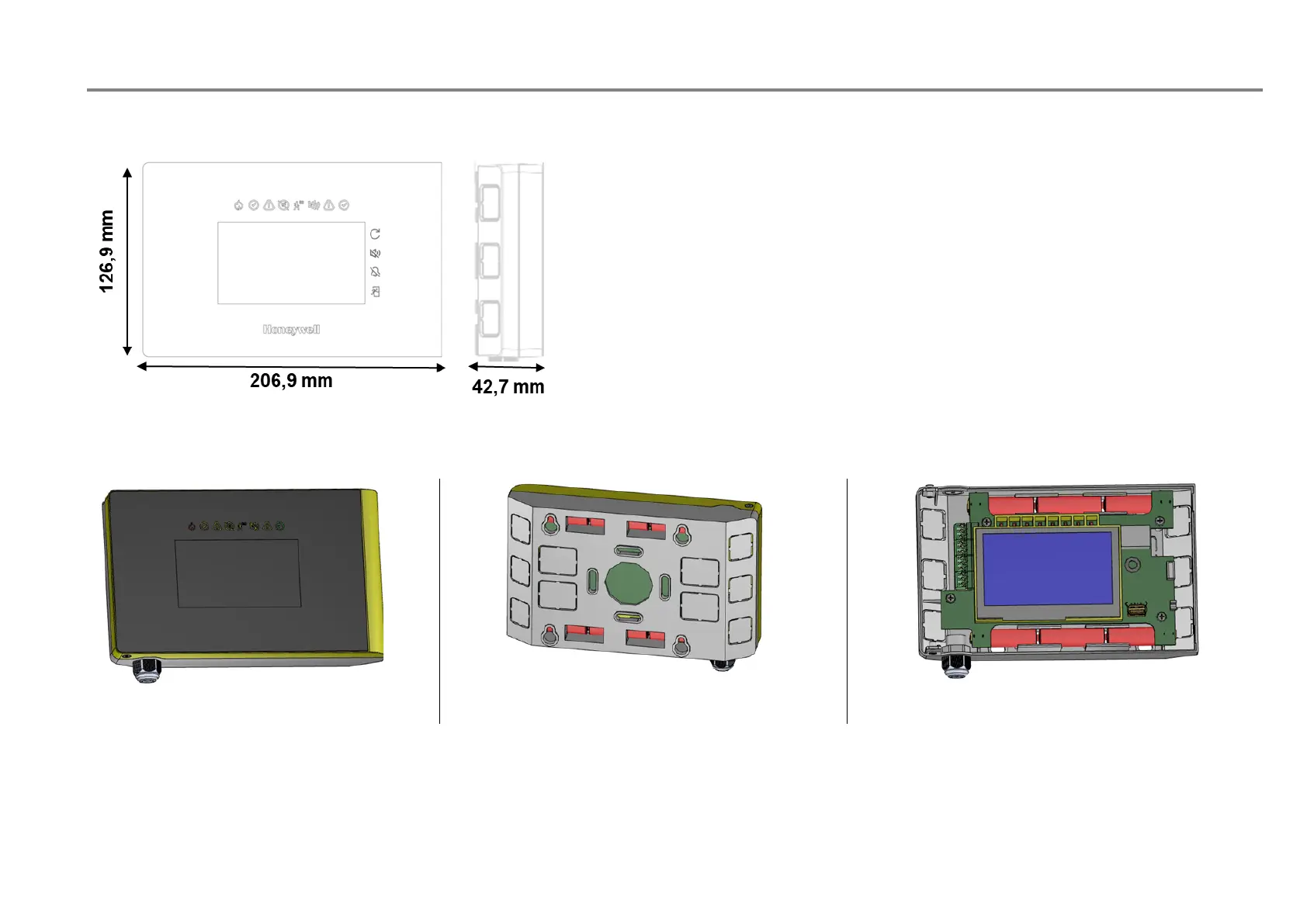

Fig. 2: Dimensions
• Dimensions in mm: 206,9 x 126,9 x 42,7 (width x height x depth)
• Upper and lower cable entry for 15 mm cable gland
• Side entries: 3 on each side (23 x 21 mm easy access)
• Central entry prepared for 60 mm universal flush box
• External connections: Removable Terminals for cables 0,5 mm
2
• Housing color: LT-32 -> RAL 9002 / LT-159 -> RAL 9005
• Material: ABS flame retardant UL94 class V-0
• Weight: 400 g (incl. 6 batteries)
Fig. 3: Front View
Fig. 4: Back View
Fig. 5: Internal View
