Honeywell LT-32 User Manual

Fire Alarm Control Panel LT-32 / LT-159
M-168.1-SERIE-LT-EN / 08.2022 21
7.1 Cable routing and connections
Remove
the keyholes  and pass the cables  through them.
1
2
3

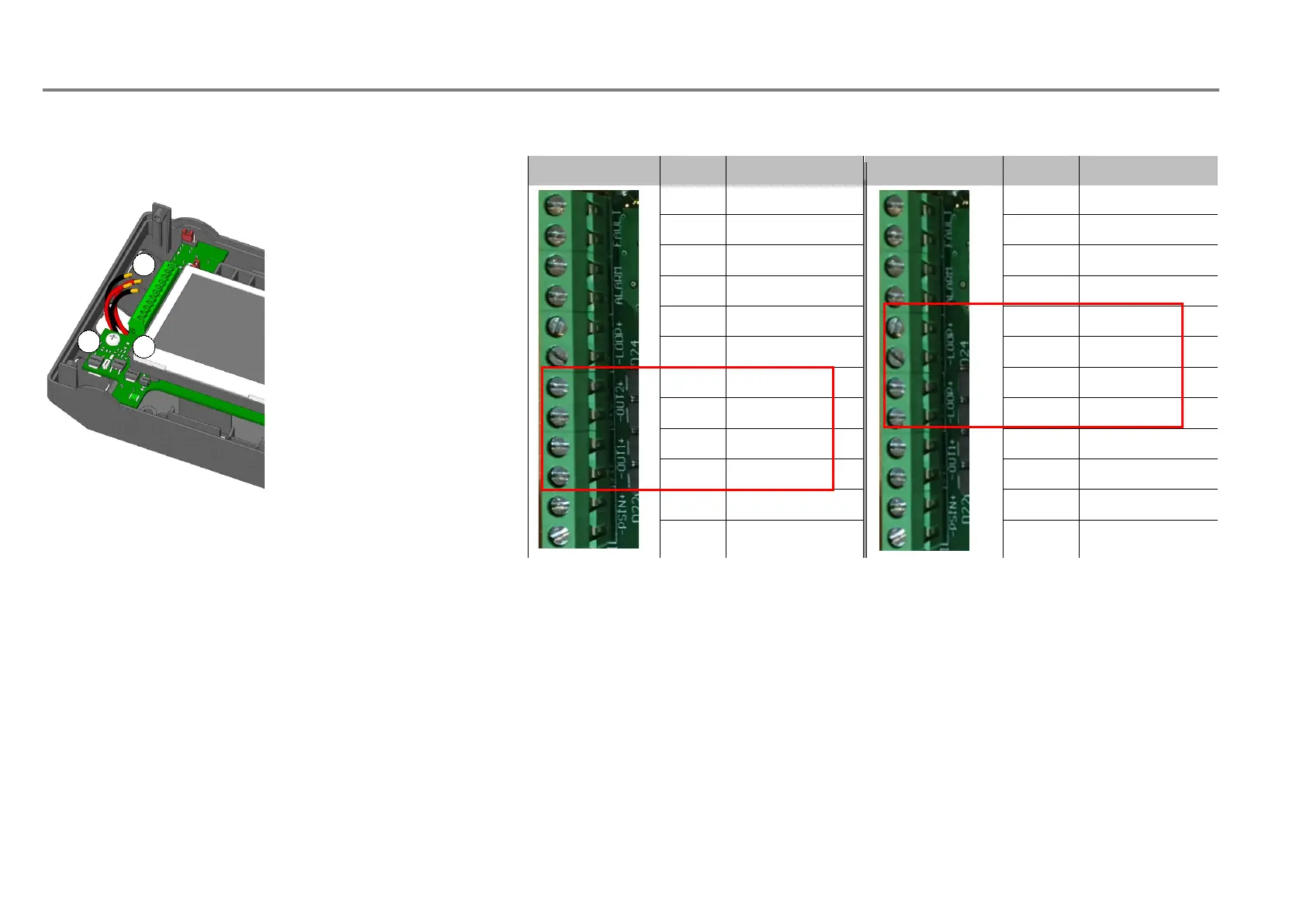

Fig.
14: Cable routing and connections
 LT-32
Ref.
Description
 LT-159
Ref.
Description
1
Fault NO/NC
1
Fault NO/NC
2
Fault C
2
Fault C
3
Alarm NO/NC
3
Alarm NO/NC
4
Alarm C
4
Alarm C
5
Loop A +
5
Loop A +
6
Loop A -
6
Loop A -
7
Sounder 2 +
7
Loop B +
8
Sounder 2 -
8
Loop B -
9
Sounder 1 +
9
Sounder 1 +
10
Sounder 1 -
10
Sounder 1 -
11
Power +
11
Power +
12
Power -
12
Power -
