Fire Alarm Control Panel LT-32 / LT-159
52 M-168.1-SERIE-LT-EN / 08.2022
14.6 System test – zones

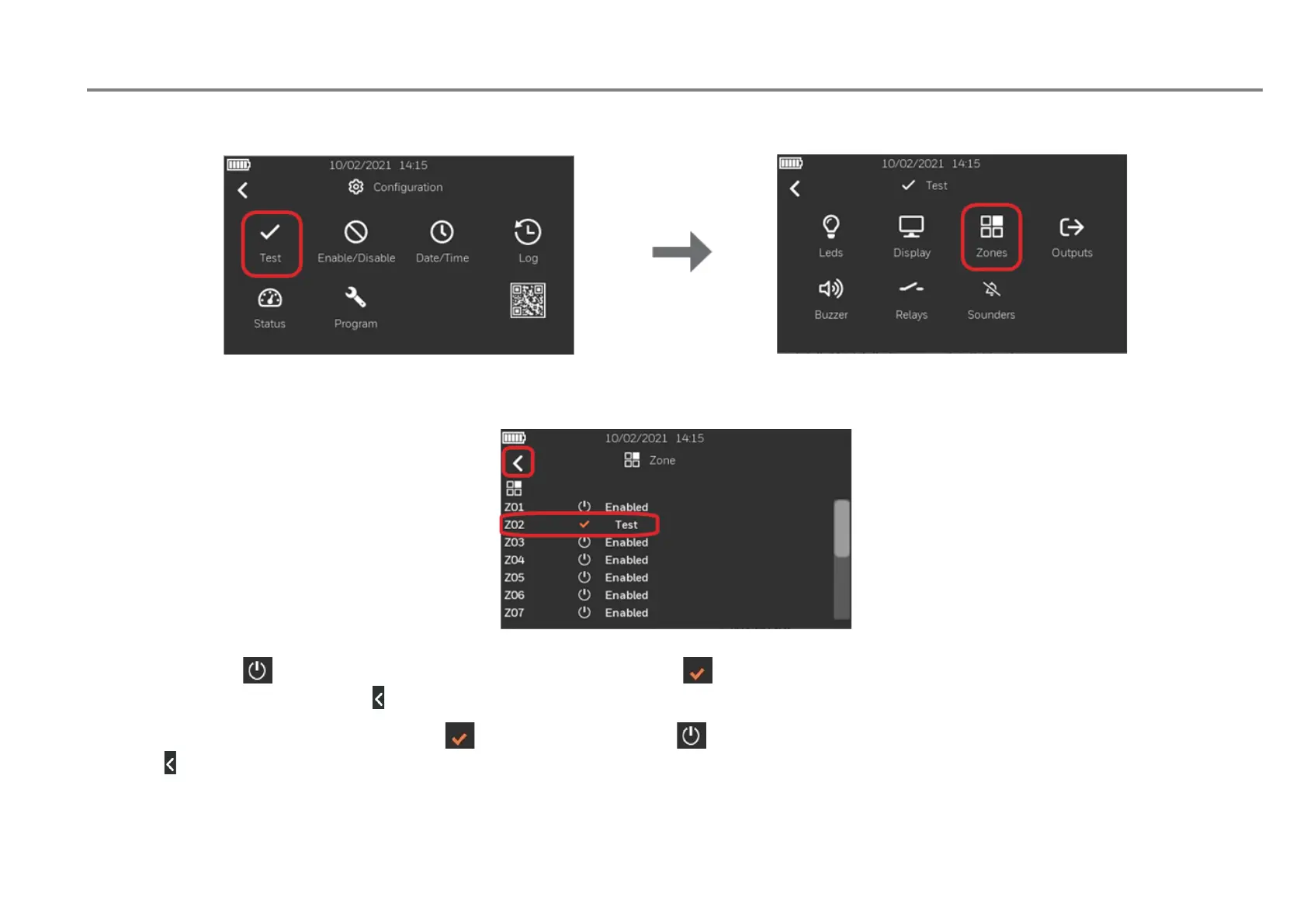

1. Follow the steps to enter in “Configuration” menu, select “Test" to access to the related options, then select “Zones” icon to view the Zone list.
2. Click on the icon near the Zone you would like to put in Test. The Test icon will be displayed near the selected Zone and label will be updated; in this
example Z02. Press the back arrow for go back to the main screen.
3. To end the Test, click on the related Test icon the Zone. The Enabled icon will be displayed near the Zone and label will be updated. Press the back
arrow to go back to the main screen.
