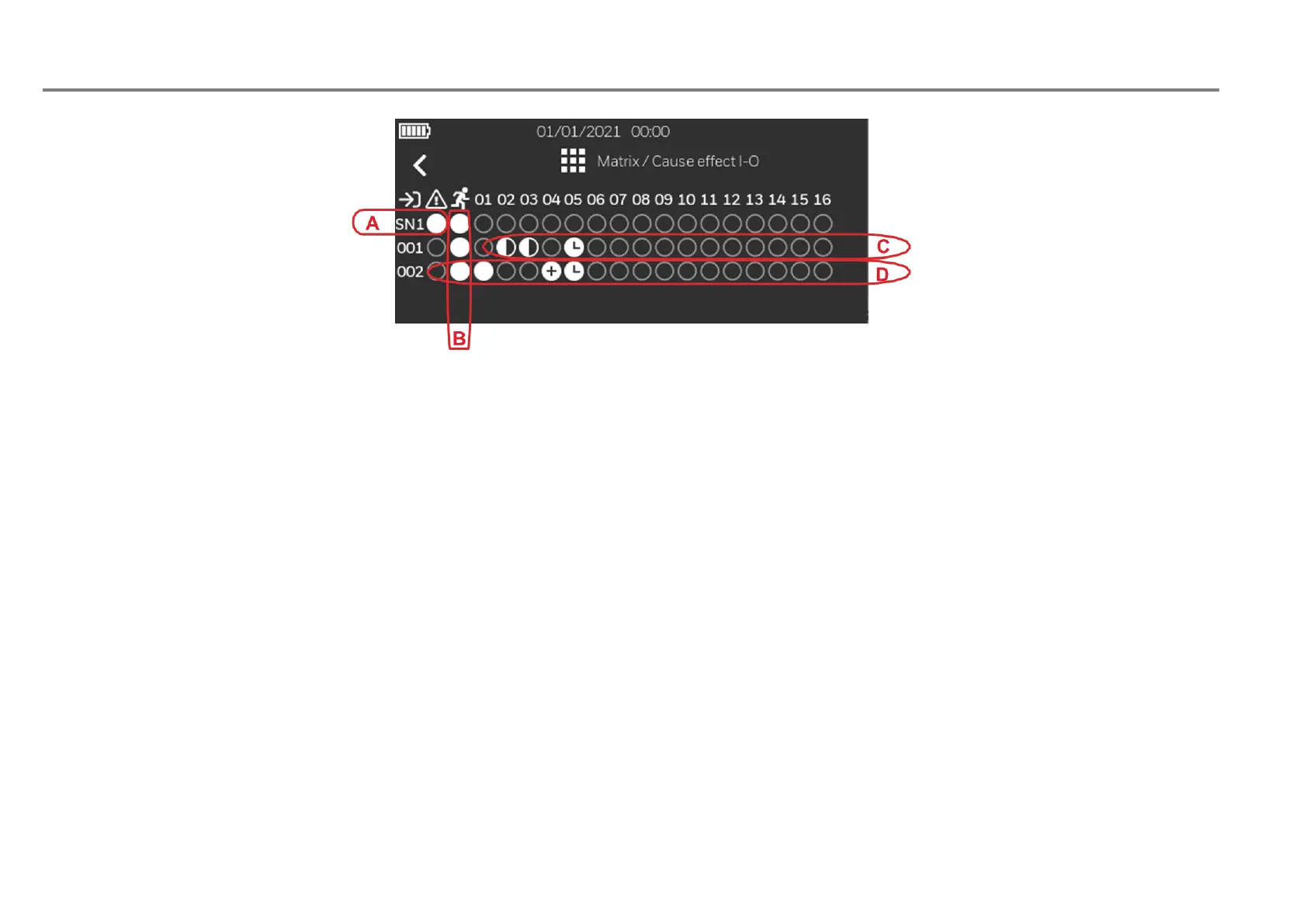

In the example shown, the I/O associations are:
A Fault will immediately activate Sounder Circuit 1
B Evacuation will immediately activate: Sounder Circuit 1, Output Modules 001 and 002
C Output Module 001 will be activated by:
• Evacuation command
• One device in alarm from Zone 2 and one device in alarm from Zone 3
• One device in alarm from Zone 5 once delay time is finished
D Output Module 002 will be activated by:
• Evacuation command
• One device in alarm from Zone 1
• Two devices in alarm from Zone 4
• One device in alarm from Zone 5 once delay time is finished
