88 NFS2-640/E Programming Manual — P/N 52742:L2 7/17/14
Releasing Applications How to Program a Releasing Zone
Example
A programming example of a control module programmed as a Release Audible circuit for
Releasing Zone R5.

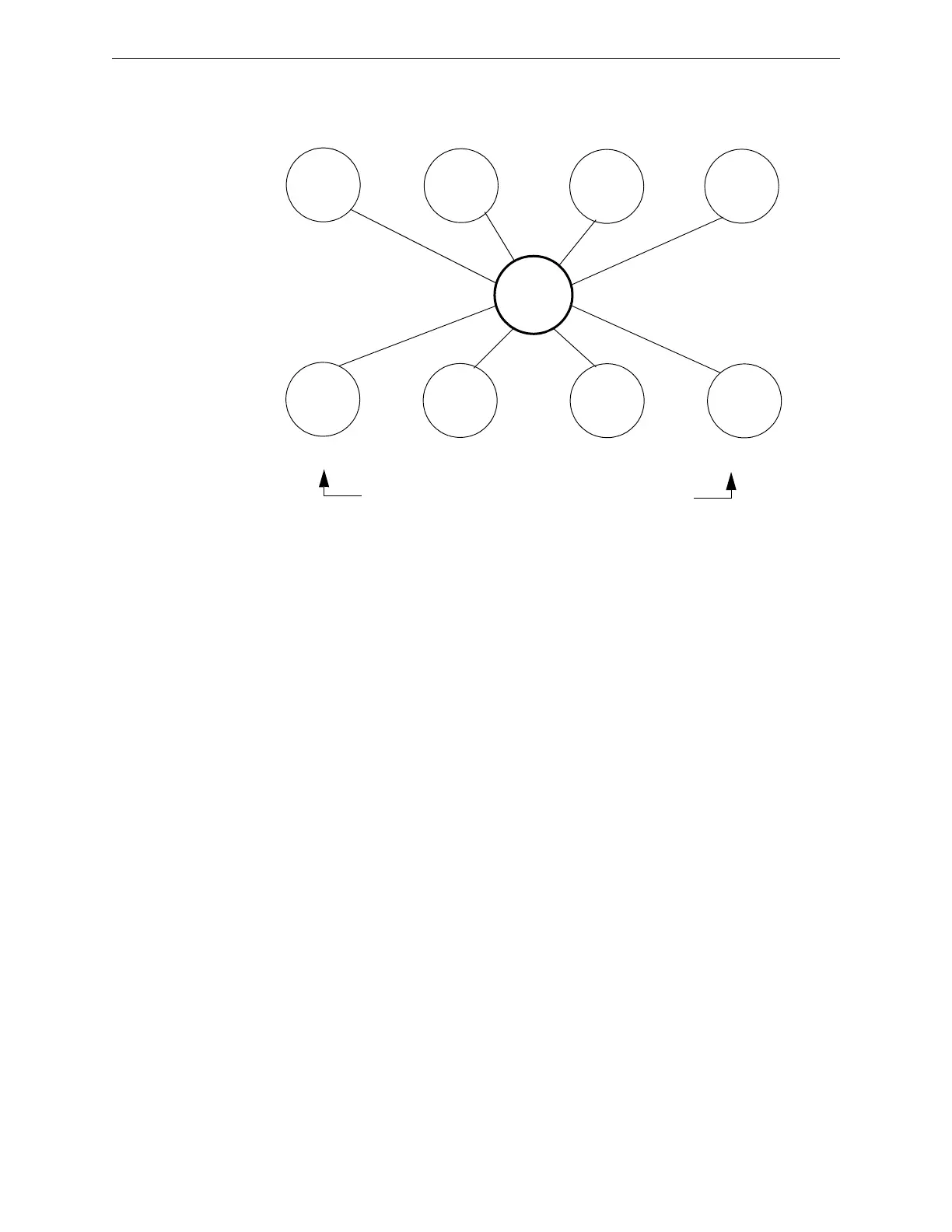

Figure A.18 Control Module Configured as a Release Audible Circuit
Type Code
REL AUDIBLE
Type Code
REL CIRCUIT
Type Code
REL CIRCUIT
Type Code
REL AUDIBLE
For example, a control module programmed with the REL
AUDIBLE Type Code activates simultaneously with other
outputs programmed for R05 (B01 and B02).
Control
Module
B02
B01
Control
Module
R05
Monitor
Module
Detector
Detector
Detector
To Next Page
