Honeywell SEARCHLINE EXCEL PLUS Technical Manual

22 Chapter 5 Mechanical Installation
Searchline Excel™ Plus / Searchline Excel™ Edge – Technical Manual
11
12
11
13
12
3
6
Torque
30 Nm
10
12
1
8
9
12
10
Torque
10 Nm
5
2
7
7
7
4

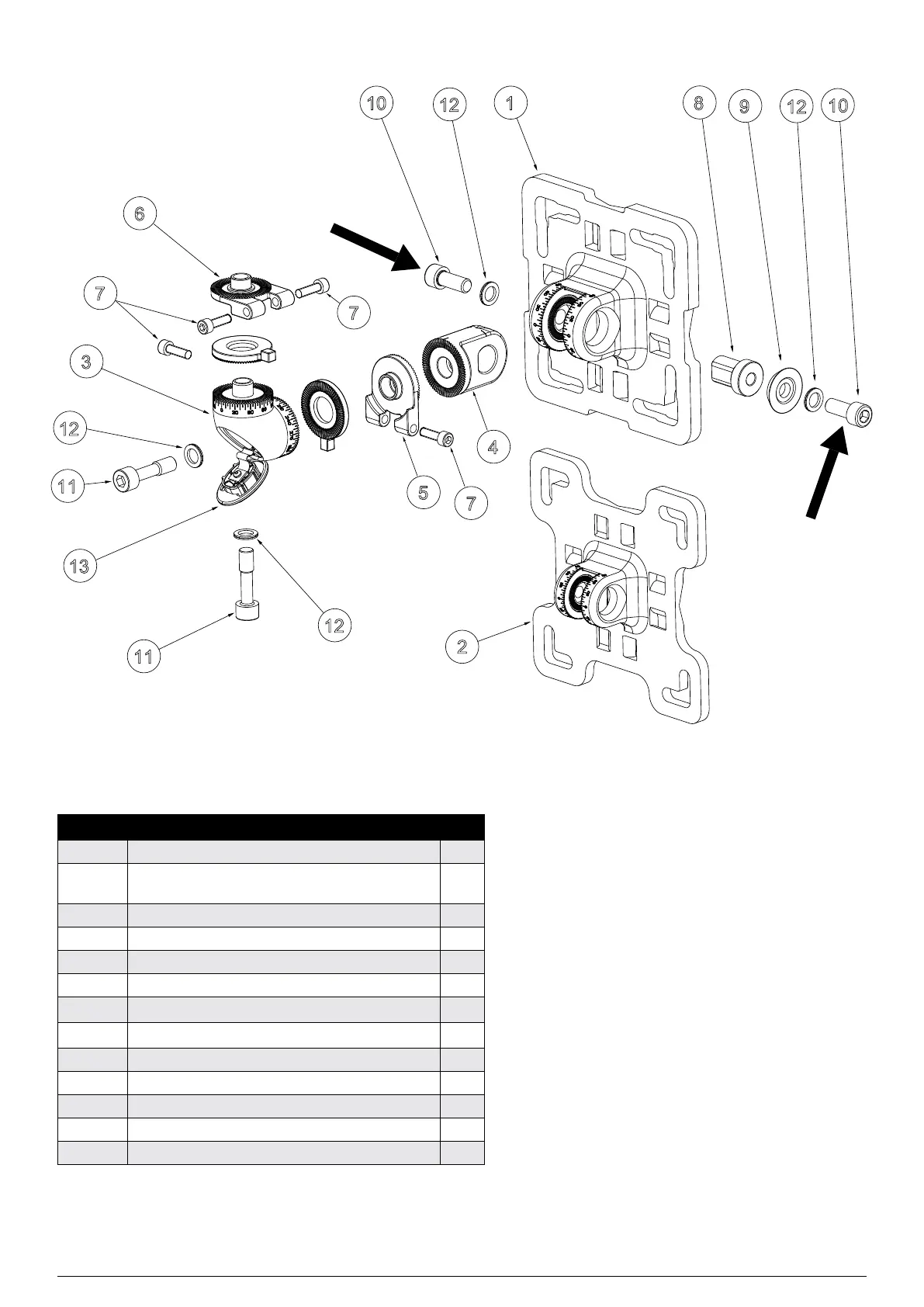

Figure 8.Universal Mounting Bracket exploded view
LEGEND:
Position Description Pcs.
1 Universal Mounting Bracket flange 1
2 Mount Plate Adaptor for Universal Mounting
Bracket flange
1
3 Vertical pivot 1
4 Horizontal pivot 1
5 Vertical fine adjustment ring 1
6 Horizontal fine adjustment ring 1
7 Socket Head Screw M6x22 4
8 Keyed insert 1
9 Conical washer 1
10 Bolt M10x25 2
11 Captive Bolt M10x40 2
12 Nord lock washer M10 4
13 Bolt cover plate 1
