108 SMV 3000 Transmitter User’s Manual 1/99
9.5 Replacing Meter Body Center Section
Procedure
You can replace the center section of the meter body. A replacement
center section is supplied with a new matching PROM.
Use the procedure in Table 29 to install a new center section and its
matching PROM.
Table 29 Replacing Meter Body Center Section
Step Action
1
Complete first 7 Steps, as applicable, in Table 28 to remove
electronics module, remove existing PROM, and install matching
PROM supplied with new meter body center section.
2
Use 4mm size allen wrench to loosen set screw outside housing.
3
Carefully unscrew meter body including integral flex-tape assembly
counterclockwise from electronics housing.

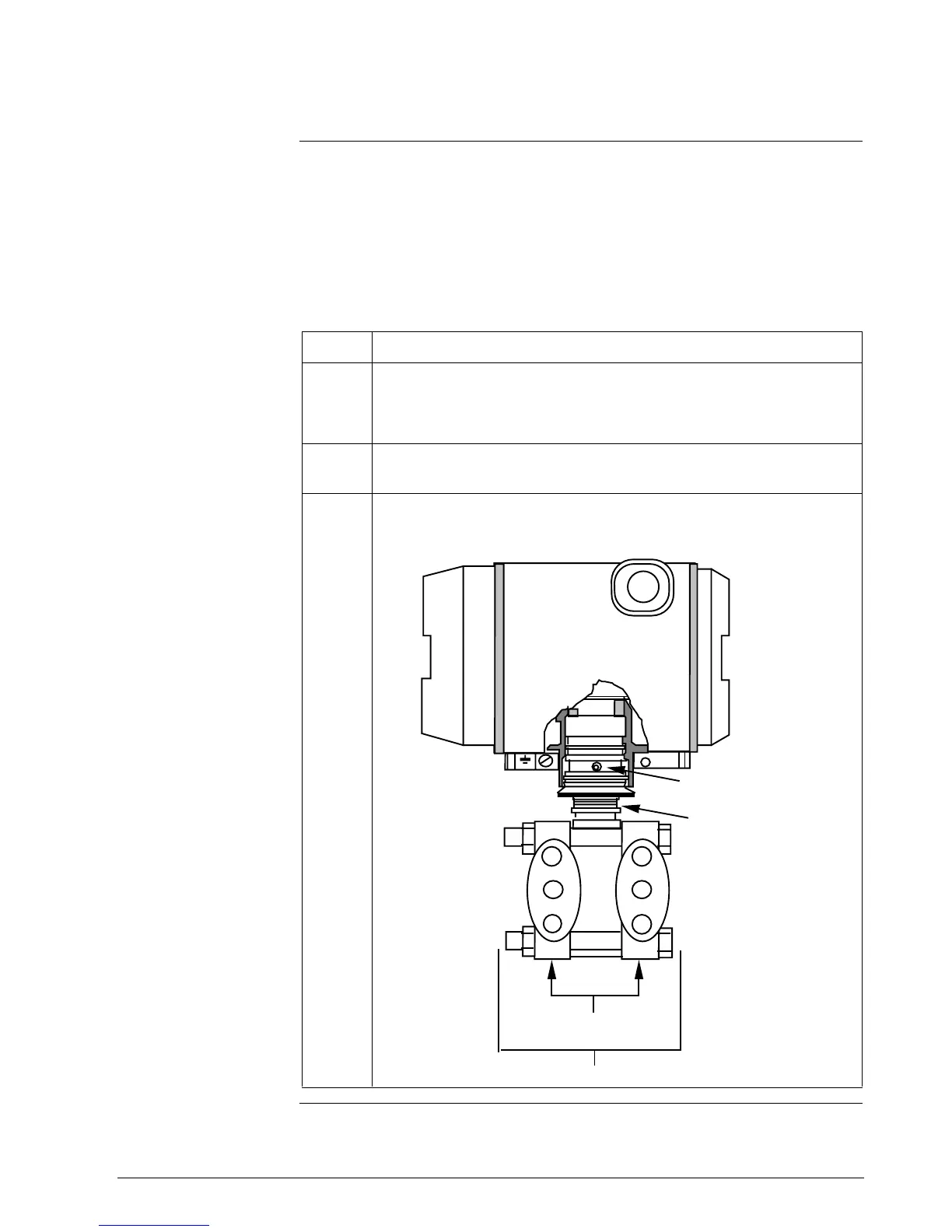

Slot for Set Screw
Center Section
Process
Heads
Meter Body
Continued on next page
To Next Page
