142 SMV 3000 Transmitter User’s Manual 1/99
12.1 Replacement Parts, Continued

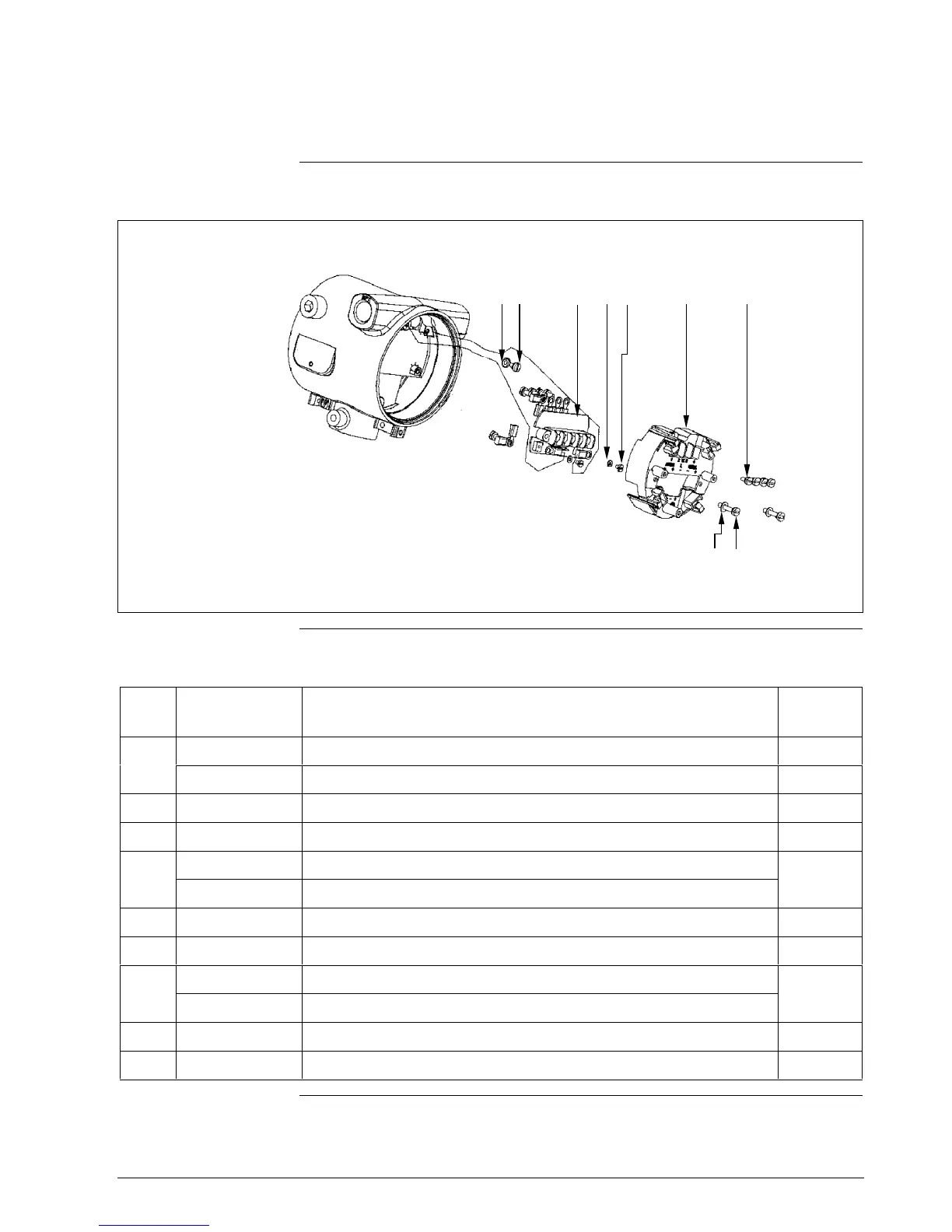

Figure 31 SMV 3000 Terminal Block Assembly
K1 K2 K3
K4
K5 K6 K2
K7K8
Table 37 Parts Identification for Callouts in Figure 31
Key
No.
Part Number Description Quantity
Per Kit
51197487-001 Terminal block assembly kit (black, without lightning protection)
51197487-002 Terminal block assembly kit (red, with lightning protection)
K1
Terminal washer 1
K2
Screw, metric, M4 10
K3
Terminal assembly (without lightning protection)
Terminal assembly (with lightning protection) 1
K4
Lockwasher, split, 3mm 2
K5
Screw, 3mm by 4mm long 2
K6
Terminal block cover (black, without lightning protection)
Terminal block cover (red, with lightning protection) 1
K7
Screw, metric, M4 2
K8
Washer 2
Continued on next page
