20 SMV 3000 Transmitter User’s Manual 1/99
4.2 Mounting SMV 3000 Transmitter
Summary
You can mount the transmitter to a 2-inch (50 millimeter) vertical or
horizontal pipe using our optional angle or flat mounting bracket or a
bracket of your own.
Figure 8 shows typical bracket mounted installations for comparison.

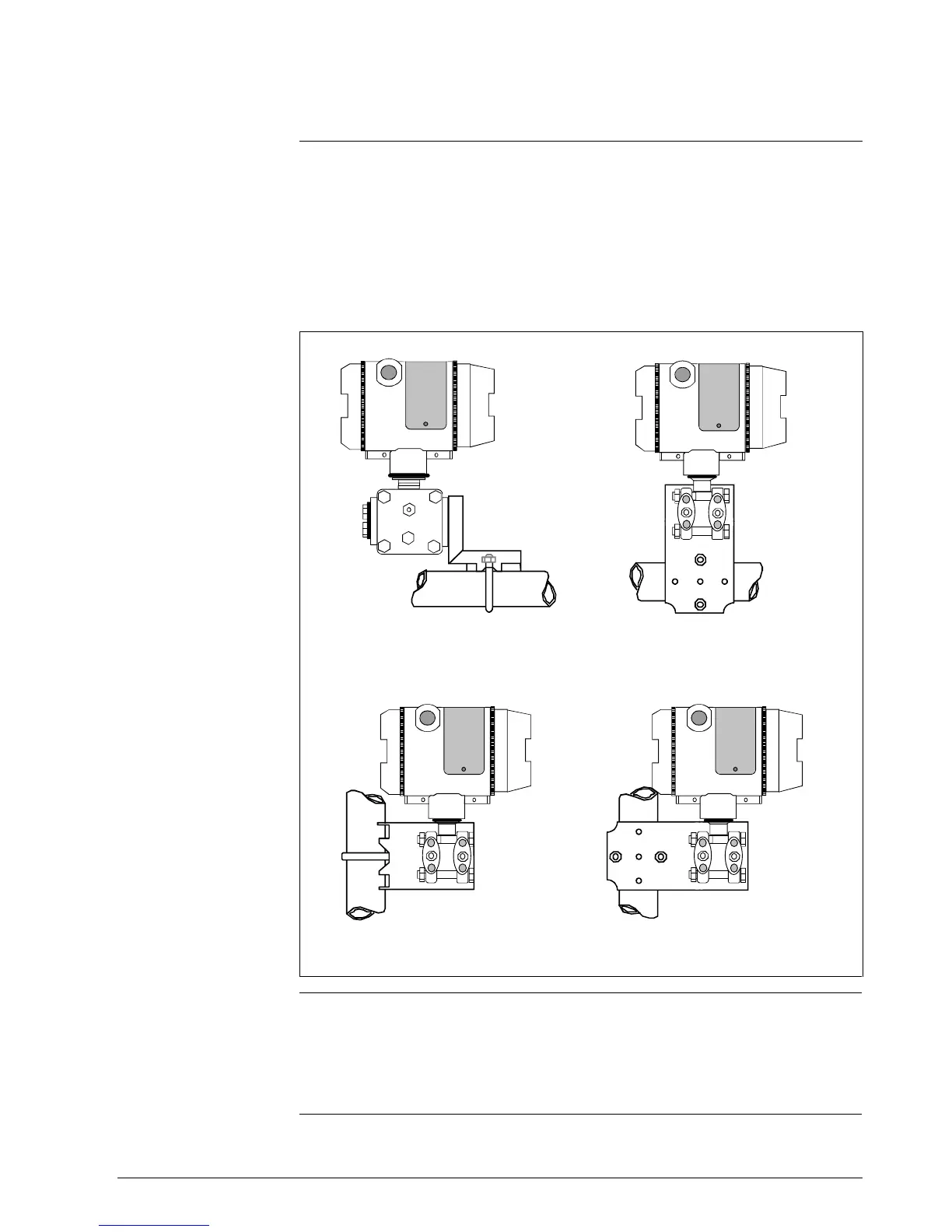

Figure 8 Typical Bracket Mounted Installations
Horizontal Pipe
Vertical Pipe
Angle
Mounting
Bracket
Flat
Mounting
Bracket
Flat
Mounting
Bracket
Angle
Mounting
Bracket
Dimensions
Detailed dimension drawings for given mounting bracket type are listed in
the back of this manual for reference. This section assumes that the
mounting dimensions have already been taken into account and the
mounting area can accommodate the transmitter.
Continued on next page
