14 SMV 3000 Transmitter User’s Manual 1/99
3.2 Considerations for SMV 3000 Transmitter
Evaluate conditions
The SMV 3000 transmitter is designed to operate in common indoor
industrial environments as well as outdoors. To assure optimum
performance, evaluate these conditions at the mounting area relative to
published transmitter specifications and accepted installation practices for
electronic pressure transmitters.
• Environmental Conditions
– Ambient Temperature
– Relative Humidity
• Potential Noise Sources
– Radio Frequency Interference (RFI)
– Electromagnetic Interference (EMI)
• Vibration Sources
– Pumps
– Motorized Valves
– Valve Cavitation
• Process Characteristics
– Temperature
– Maximum Pressure Rating

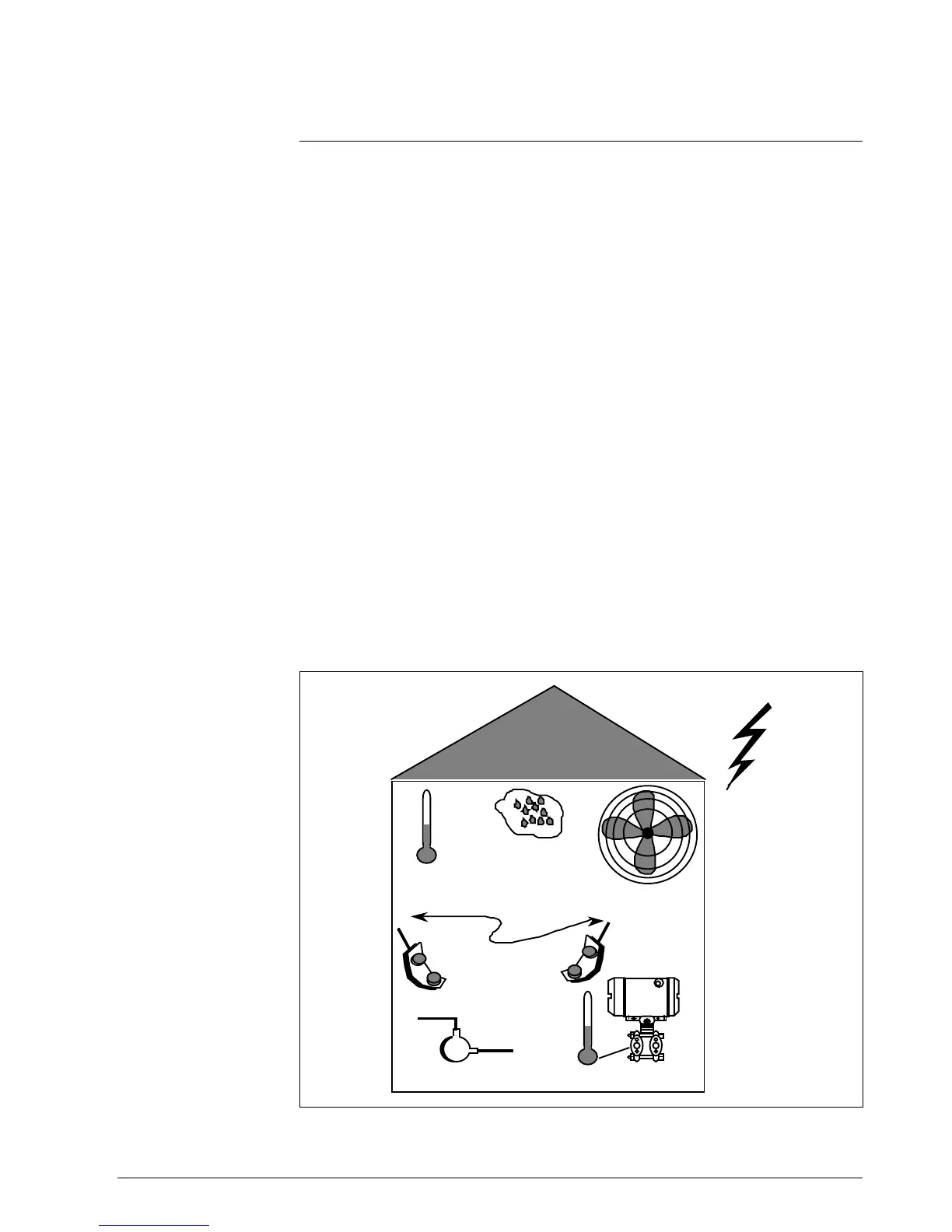

Figure 7 illustrates typical mounting area considerations to make before
installing a transmitter.
Figure 7 Typical Mounting Area Considerations Prior to Installation
Ambient
Temperature
Relative
Humidity
Large Fan Motors
(EMI)
Transceivers
(RFI)
Pump
(vibration)
Meter Body
Temperature
Lightning
(EMI)
21003
Continued on next page
To Next Page
