12.1 Replacement Parts, Continued

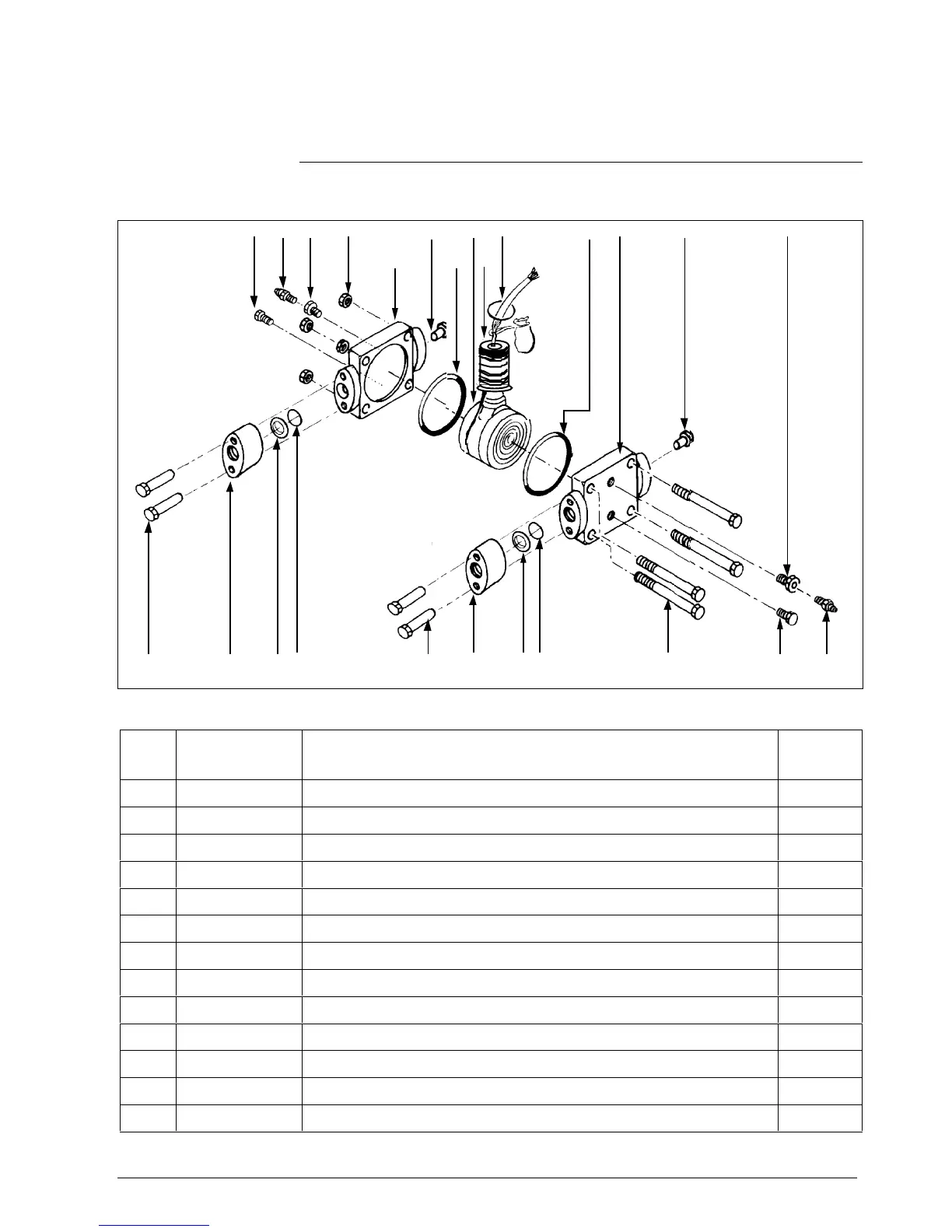

Figure 32 SMV 3000 Meter Body
22372
K3 K4 K5
K2
K13
K3
K7
1
K9
K8 K7
K13 K3 K5
K4K3
K6
K12
K10K11
K1K1 K11 K10 K12
Table 38 Parts Identification for Callouts in Figure 32
Key
No.
Part Number Description Quantity
Per Unit
1
Center section 1
30753790-001 Carbon steel bolts and nuts kit
K1
Bolt, hex head, 7/16-20 UNF, 1.375 inches lg., flange adapter 4
K2
Nut, hex, metric, M12, process heads 4
K6
Bolt, hex head, metric, M12, 90mm lg., process heads 4
30753791-002 A286 SS (NACE) bolts and 302/304 SS (NACE) nuts kit
K1
Bolt, hex head, 7/16-20 UNF, 1.375 inches lg., flange adapter 4
K2
Nut, hex, metric, M12, process heads 4
K6
Bolt, hex head, metric, M12, 90mm lg., process heads 4
30753785-001 St. steel vent/drain and plug kit
K3
Pipe plug 4
K4
Vent plug 2
K5
Vent bushing 2
Continued on next page
