1/99 SMV 3000 Transmitter User’s Manual 21
4.2 Mounting SMV 3000 Transmitter, Continued
Bracket mounting
Table 5 summarizes typical steps for mounting a transmitter to a bracket.
Table 5 Mounting SMV 3000 Transmitter to a Bracket
Step Action
1
If you are using an… Then…
optional mounting bracket go to Step 2.
existing mounting bracket go to Step 3.
2
Position bracket on 2-inch (50.8 mm) horizontal or vertical pipe, and
install “U” bolt around pipe and through holes in bracket. Secure with
nuts and lockwashers provided.

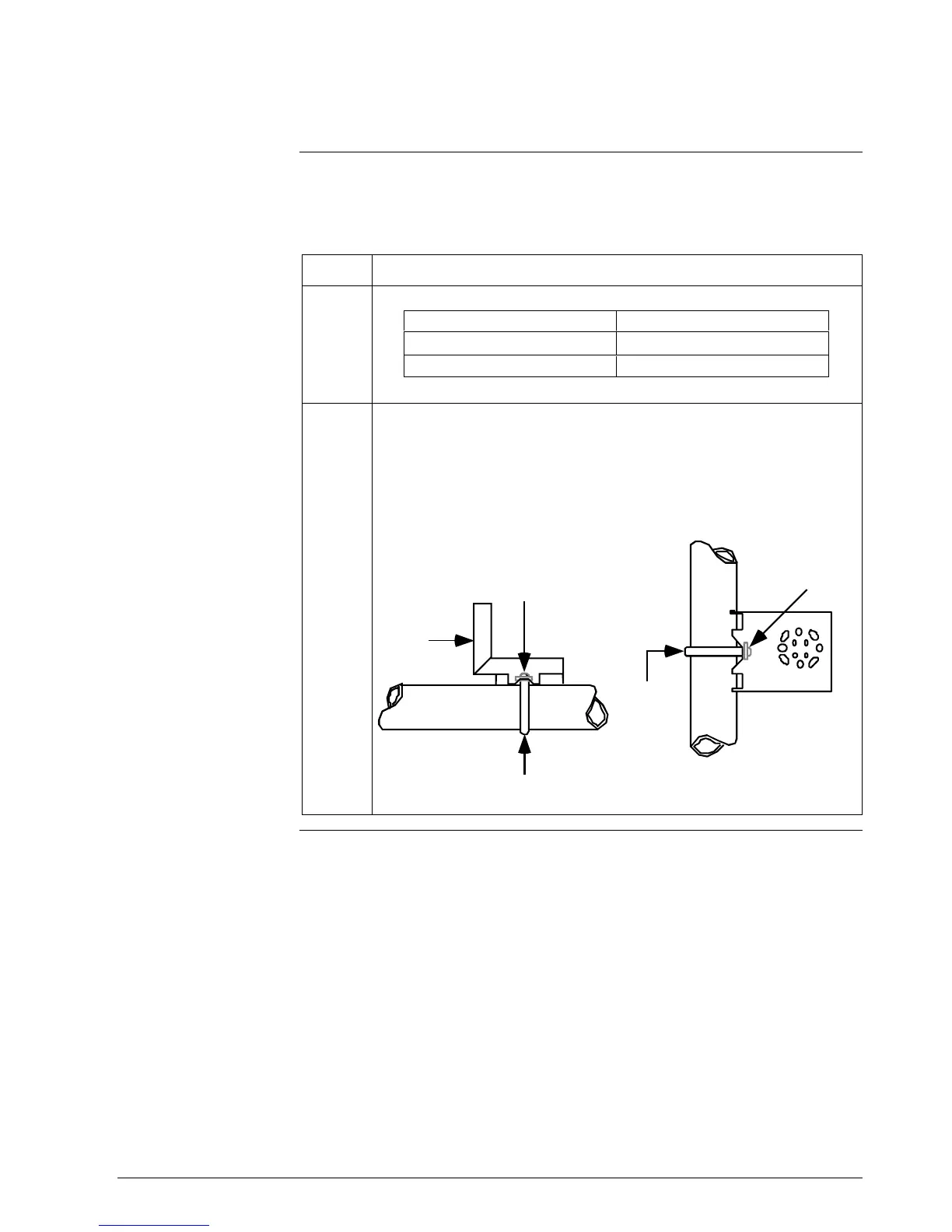

Example - Angle mounting bracket secured to horizontal or vertical
pipe.
Horizontal Pipe
Mounting
Bracket
Nuts and
Lockwashers
Nuts and
Lockwashers
U-Bolt
U-Bolt
Mounting
Bracket
Vertical Pipe
Continued on next page
