22 SMV 3000 Transmitter User’s Manual 1/99
4.2 Mounting SMV 3000 Transmitter, Continued
Bracket mounting,
continued
Table 5 Mounting SMV 3000 Transmitter to a Bracket, continued
Step Action
3
Align alternate mounting holes in end of meter body heads with holes
in bracket and secure with bolts and washers provided.
4
Loosen the 4 mm set screw on outside neck of transmitter. Rotate
electronics housing in maximum of 90 degree increments in left or
right direction from center to position you require and tighten set
screw.

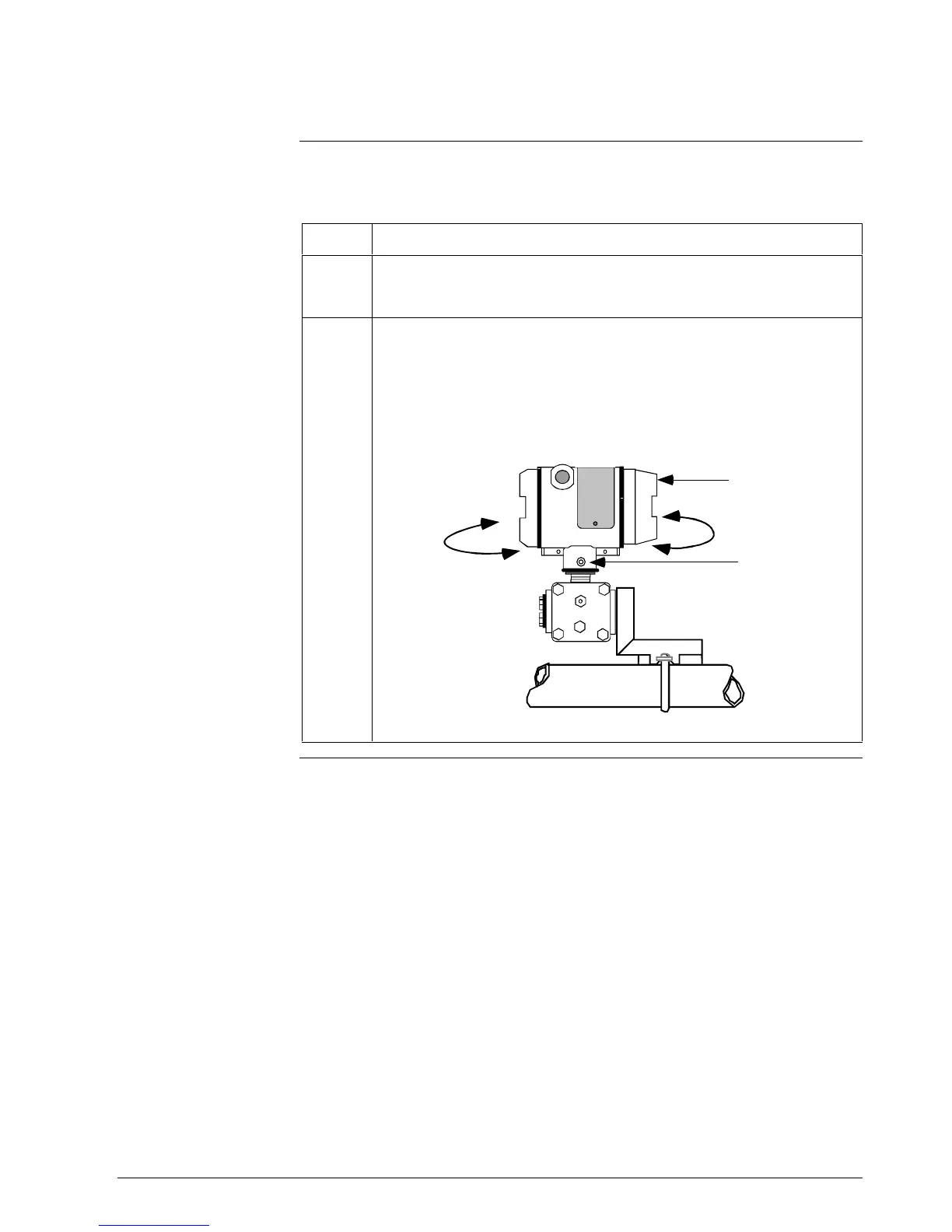

Example - Rotating electronics housing.
Set Screw
Electronics
Housing
90 degrees
max.
90 degrees
max.
Continued on next page
