SMV 3000 Transmitter User
’
s Manual
139
12.1
Replacement Parts,
Continued

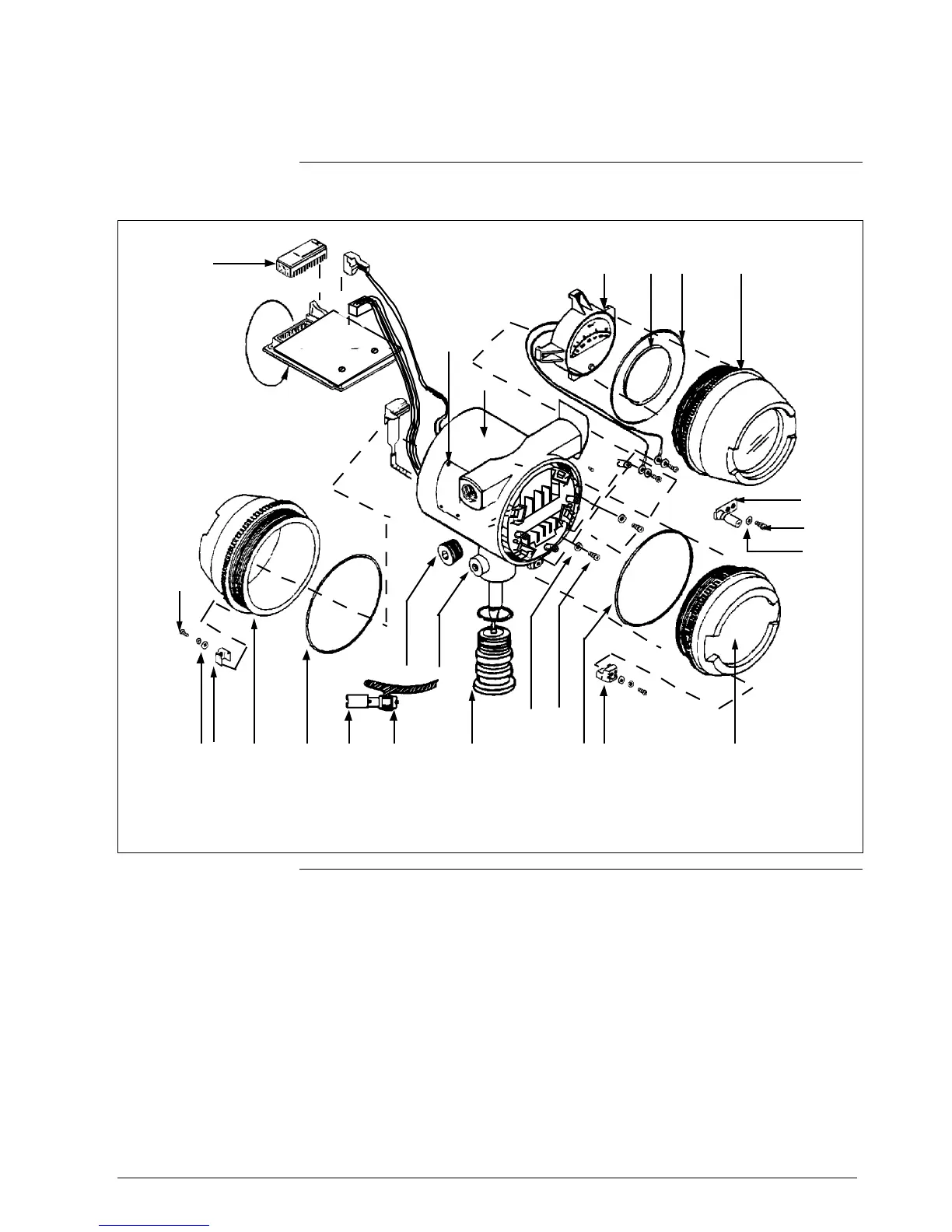

Figure 30
SMV 3000 Electronics Housing
3
4K
2
5
K4
6
K10
K9
K2
K8
7
K7
See note 2
K5
K4
K6
K2
K12
K13
K11
9
K1
K3
K5
See
note 1
2
1
NOTES:
1. Terminal block
assem
bly. See Figure 31.
2. These parts, inc
luding the attached cable as
sembly that plugs
into the electronics
module, are part of the center
secti
on
–
shown for reference purpos
es only. See Figure 32 for m
eter body parts.
Continued on nex
t page
150
152
Table of Contents
Default Chapter
5
Default Chapter
5
Table of Contents
5
References
12
Technical Assistance
12
Overview - First Time Users Only
13
Introduction
13
SMV 3000 Smart Multivariable Transmitters
13
CE Conformity (Europe)
14
SMV 3000 Smart Multivariable Transmitters
15
Figure 1 SMV 3000 Transmitter Handles Multiple Process Variable Measurements and Calculates Flow Rate
15
Figure 2 Functional Block Diagram for Transmitter in Analog Mode of Operation
16
Figure 3 Functional Block Diagram for Transmitter in Digital de Mode of Operation
17
Smartline Configuration Toolkit (SCT 3000)
18
Figure 4 Smartline Configuration Toolkit
18
Smart Field Communicator (SFC)
19
Transmitter Order
21
Figure 6 Typical SMV 3000 Transmitter Order Components
21
Quick Start Reference
23
Introduction
23
Getting SMV 3000 Transmitter On-Line Quickly
24
Preinstallation Considerations
25
Introduction
25
Section 3 Preinstallation Considerations
25
Figure 7 Typical Mounting Area Considerations Prior to Installation
26
Section 4 Installation
26
Considerations for SMV 3000 Transmitter
28
Considerations for SCT 3000
29
Installation
31
Introduction
31
Installing RTD or Thermocouple
31
Mounting SMV 3000 Transmitter
32
Piping SMV 3000 Transmitter
36
Figure 11 Transmitter Location above Tap for Gas Flow Measurement
37
Installing RTD or Thermocouple
41
Wiring SMV 3000 Transmitter
42
Figure 13 Operating Range for SMV 3000 Transmitters
42
Figure 15 RTD Input Wiring Connections
46
Figure 17 Ground Connection for Lightning Protection
47
Getting Started
49
Introduction
49
Section 5 Getting Started
49
Making Initial Checks
49
Establishing Communications
50
Figure 18 SCT Hardware Components
50
Section 6 Configuration
50
Making Initial Checks
54
Write Protect Option
55
Figure 19 Write Protect Jumper Location and Selections with Daughter PCB Removed
55
Configuration
57
Introduction
57
Configuring the SMV 3000 with the SCT
57
Device Configuration
57
General Configuration
57
Introduction
58
Overview
59
Figure 20 SMV On-Line Configuration Process
59
Configuring the SMV 3000 with the SCT
61
Device Configuration
62
General Configuration
63
Dpconf Configuration - PV1
66
Figure 21 Square Root Dropout Points for PV1
69
Ap/Gpconf Configuration - PV2
71
Tempconf Configuration - PV3
73
Figure 23 Example of LRV and URV Interaction
78
Flowconf Configuration - PV4
80
Figure 25 Graphic Representation of Sample Low Flow Cutoff Action
85
Using Custom Engineering Units
86
Flow Compensation Wizard
86
Flow Compensation Wizard
87
Saving, Downloading and Printing a Configuration File
89
Verifying Flow Configuration
90
Introduction
91
Running Output Check
91
Section 7 Startup
91
Startup Tasks
91
Using Transmitter to Simulate PV Input
91
Startup Tasks
92
Running Output Check
93
Using Transmitter to Simulate PV Input
96
Starting up Transmitter
98
Figure 26 Typical SCT or SFC and Meter Connections for SMV Start up Procedure
102
Startup
91
Operation
103
Accessing Operation Data
103
Introduction
103
Saving and Restoring a Database
103
Section 8 Operation
103
Accessing Operation Data
104
Changing Default Failsafe Direction
107
Figure 27 Location of Failsafe Jumper on Main PWA of Electronics Module
109
Saving and Restoring a Database
110
Maintenance
111
Introduction
111
Section 9 Maintenance
111
Preventive Maintenance
112
Inspecting and Cleaning Barrier Diaphragms
113
Replacing Electronics Module or PROM
115
Replacing Meter Body Center Section
120
Section 10 Calibration
122
Calibrating Analog Output Signal
123
Introduction
123
Overview
123
Overview
124
Calibrating Analog Output Signal
126
Calibrating PV1 and PV2 Range Values
127
Figure 28 Typical PV1 or PV2 Range Calibration Hookup
128
Resetting Calibration
129
Calibration
123
Introduction
131
Overview
131
Section 11 Troubleshooting
131
Troubleshooting Using the SCT
131
Overview
132
Troubleshooting Using the SCT
133
Diagnostic Messages
134
Troubleshooting
131
Parts List
149
Section 12 Parts List
149
Figure 31 SMV 3000 Terminal Block Assembly
154
Figure 32 SMV 3000 Meter Body
155
Replacement Parts
156
Reference Drawings
159
Section 13 Reference Drawings
159
Wiring Diagrams and Installation Drawings
159
Appendix A - Pm/Apm/Hpm Smv 3000 Integration
161
Overview
161
A.1 Overview
161
A.2 Description
161
A.3 Data Exchange Functions
161
A.4 Installation
161
Description
162
Figure A-1 Typical PM/APM/HPM SMV 3000 Integration Hierarchy
163
Data Exchange Functions
164
Installation
169
Figure A-5 Connection Rule Example
170
Configuration
171
A.5 Configuration
171
Operation Notes
176
A.6 Operation Notes
176
Appendix Bsmv 3000 Configuration Record Sheet
183
Appendix C -Pv4 Flow Variable Equations
187
Overview
187
C.1 Overview
187
C.2 Standard Flow Equation
187
C.3 Dynamic Compensation Flow Equation
187
Standard Flow Equation
188
Dynamic Compensation Flow Equation
194
Table 3 Transmitter Overpressure Ratings
206
Table 27 Inspecting and Cleaning Barrier Diaphragms
