Honeywell SMV 3000 User Manual

Table 2 Torque Table - Process Head Bolts/Nuts
Bolt Type
Meterbody Type
51452557-001
(Carbon Steel -
standard; no option
specified)
5142557-002 and –003
(NACE [“CR” option] and
Non-NACE [“SS” option]
Stainless Steel)
51452557-004
(B7M Alloy Steel
[“B7” option])
51451864XXXX except
…XXX5
(See Note 1.)
67,8 N•M +/- 3,4 N•M
(50.0 Lb-Ft +/- 2.5 Lb-
Ft)
56,9 N•M +/- 2,8 N•M
(42.0 Lb-Ft +/- 2.1 Lb-Ft)
48,8 N•M +/- 2,4 N•M
(36.0 Lb-Ft +/- 1.8 Lb-Ft)
Note 1 – Part number 51451864XXX5 applies to the Meterbody for the STD 3000 Transmitter,
Model STD110 (draft range).

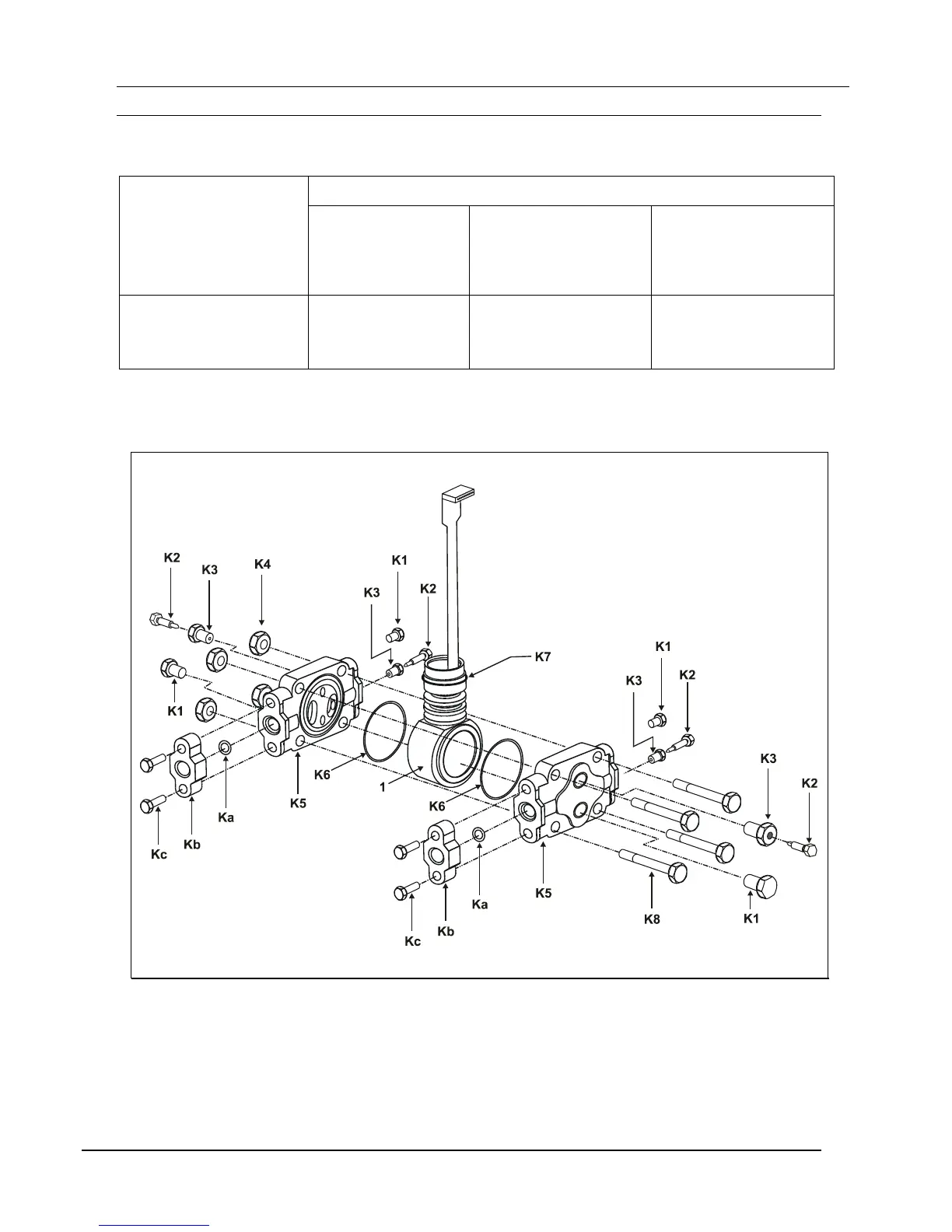

Figure 1 SMV 3000 Multivariable Transmitter – Meter Body and Process Heads
(Rev S or greater)
03/04 34-SM-99-01 (Addendum to 33-SM-25-02) 3 of 8
