Boot-up the thermostat 39
BOOT-UP THE THERMOSTAT
Setting up the Equipment type
The TC300 is designed to control Fan coil units. It can control 4 pipe dual coil, 4 pipe
single coil, and 2 pipe single coil.

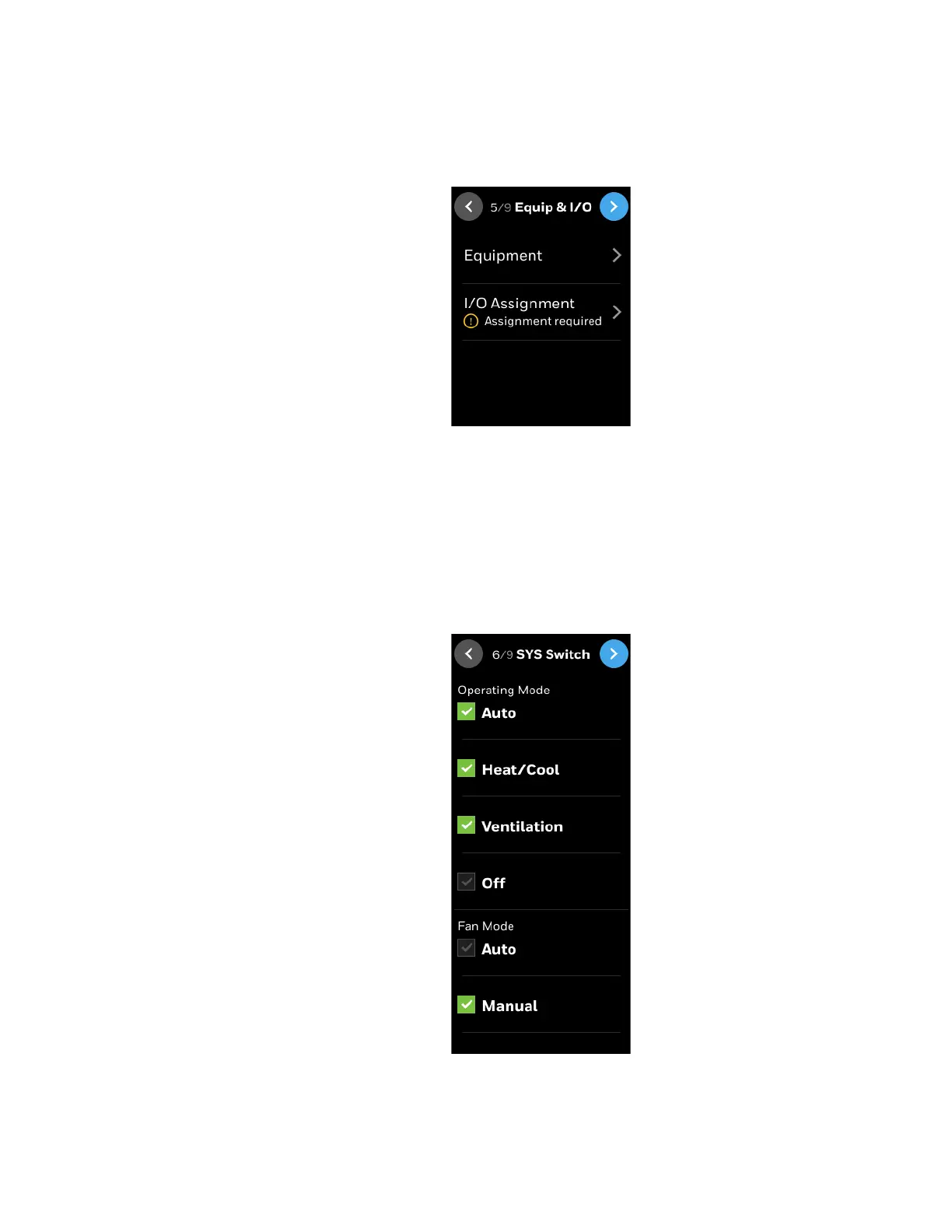

Figure 11 Equipment and I/O
16. Tap Equipment and set the equipment details. See Equipment configuration.
17. Tap I/O Assignment and assign the I/Os. See I/O terminal assignment.
18. Tap the right arrow button.
The System Switch screen appears.
Setting up the System switch
The operation mode of system switch depends on the equipment configuration.
Figure 12 System Switch
