HONEYWELL UNITARY CONTROLLER - 230 VAC - INSTALLATION INSTRUCTIONS
5 31-00610-01
Unitary Controller Small

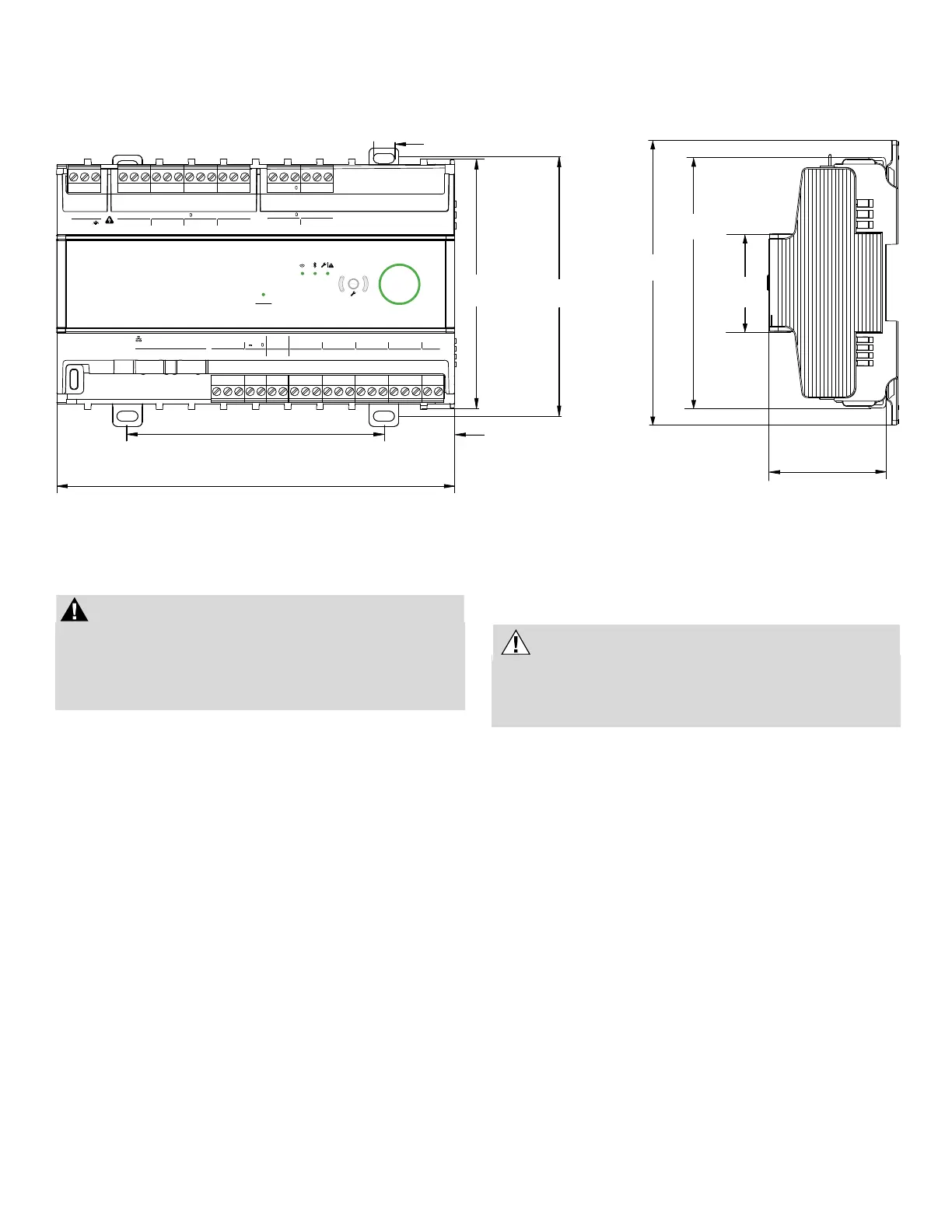

Fig. 3 Unitary controller small dimensions
NETWORK SECURITY
WARNING
Honeywell expressly states that Unitary BACnet™
RJ45 (IP), BACnet™ T1L (IP) and BACnet™ MS/TP
controllers will not protect against all cyber
security risks from the internet. Therefore, use the
controllers in private and protected networks.
To ensure a safe and reliable operation, take necessary
protective measures, such as locating BMS controls
behind a firewall and using a VPN connection. Suitable
VPN routers are available from third-party
manufacturers.
GENERAL SAFETY
INSTRUCTIONS
Follow the safety instructions provided by Honeywell in
this manual while doing any operation such installation,
mounting, or starting.
• The Honeywell Unitary controllers must be installed
and mounted by authorized and trained personnel.
• In the case of any modification, except by Honeywell,
the operation and safety warranties become void.
• Observe all applicable local standards and
regulations.
• Use only Honeywell supplied or approved
accessories.
• Before installing or dismantling the system,
disconnect the power supply by either removing the
power terminal block from the controller or through
local isolation.
CAUTION
CAUTION
Disconnect the power before installing, removing,
or replacing the Honeywell Unitary controller.
Switch off the power before you install any
jumpers.
1.38 inches
(35 mm)
4.79 inches
(121.6 mm)
7.1 inches
(180 mm)
4.33 inches
(110 mm)
4.60 inches
(116.8 mm)
0.38 inches
(9.6 mm)
2.1 inches
(53 mm)
4.55 inches
(115.6 mm)
1.77 inches
(45.1 mm)
5.16 inches
(131.1 mm)
61
4321 56789 1112131415
10
4645 48 49
50
52 53 54 55 56 58 59
60
62 63 64 6551 5747
18 19 21 22 232
RS485
1
24VDC OUT
61
NC1 NO1 IN1 NC2 NO2 IN2
NC3 NO3 IN3 NC4NO4 IN4
DO RELAY
4321 56789 11121314151
+-
IO1 C IO2 IO3 C IO4 IO5 C IO6 IO7 C IO8
C
COM
4645 48 49 50 52 53 54 55 56 58 59 60 62 63 64 65
RS485 1 SYLK UIO
51
WM1 / 2
5747
PORT1 PORT2
10/100 SWITCHED
POWER 230V
N
L
DO CHP
CO3 CO4CCO1 CO2C
18 19 21 22 232
V
POW24
