nB The bottom edge of the shipped image corresponds to row n - 1 of the
image in memory. Range: 000 - 639. (Default = all rows)
Example:
Alternately, specify the number of pixels to cut from the outside margin of the
image; thus only the center pixels are transmitted.
nM Margin: cut n columns from the left, n + 1 columns from the right, n rows
from the top, and n + 1 rows from the bottom of the image. Ship the
remaining center pixels. Range: 0 - 238.
(Default = 0, or full image)
Example:
P - Protocol
Used for shipping an image. Protocol covers two features of the image data being
sent to the host. It addresses the protocol used to send the data (Hmodem, which is
an Xmodem 1K variant that has additional header information), and the format of
the image data that is sent.
0P None (raw data)
2P None (default for USB)
3P Hmodem compressed (default for RS232)
4P Hmodem
S - Pixel Ship
Pixel Ship sizes an image in proportion to its original size. It decimates the image
by shipping only certain, regularly spaced pixels.
Example: 4S would transmit every fourth pixel from every fourth line.

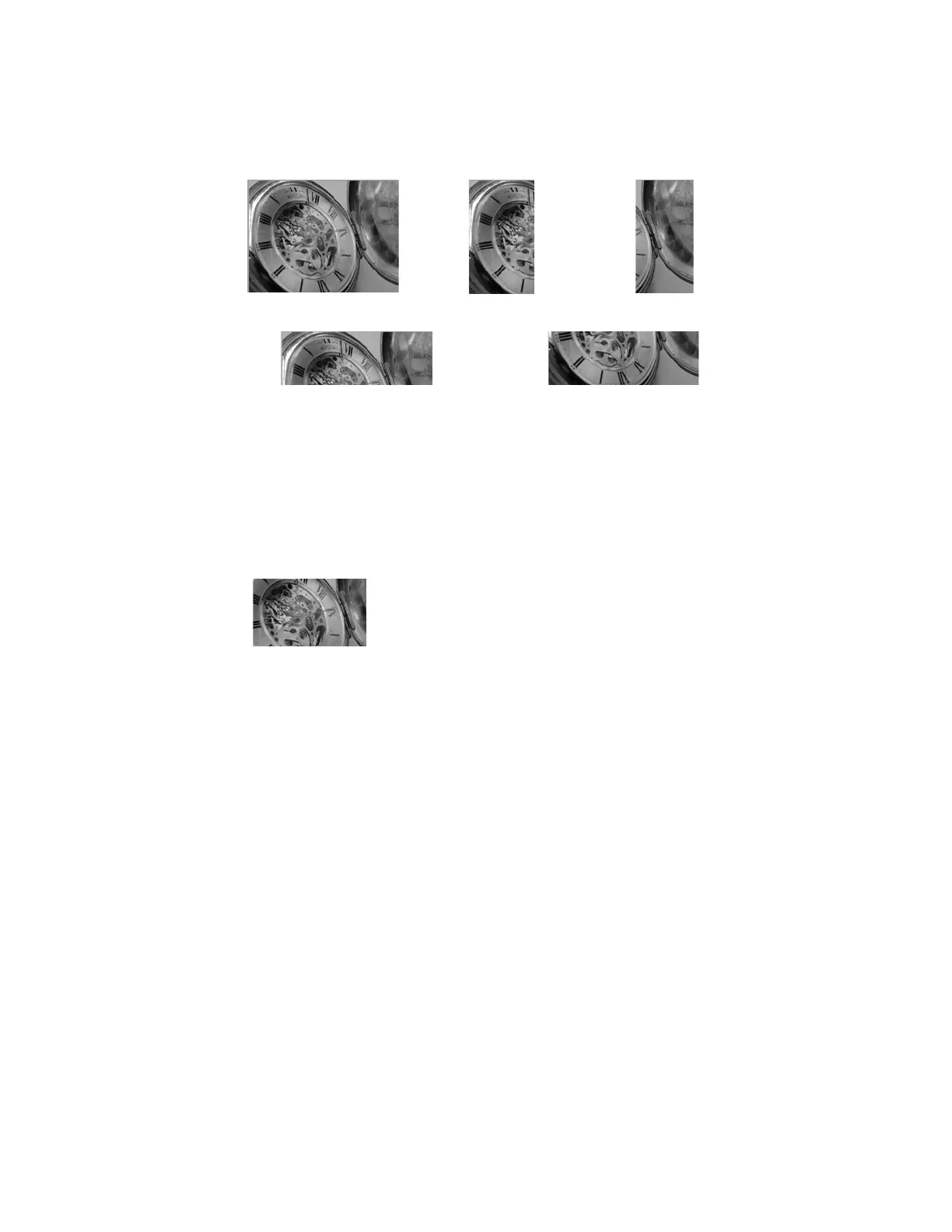

Image Crop set to
300L:
Image Crop set to
300R:
Uncropped Image:
Image Crop set to 200T:Image Crop set to 200B:
Image Crop set to 238M:

Honeywell XENON 1900 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Linear (1D) barcodes supported	-
Standard interfaces	USB, Keyboard wedge, RS-232, RS-485
Connectivity technology	Wired
Input voltage	4 - 5.5 V
Power consumption	450 mA
Power source type	DC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	147 g
