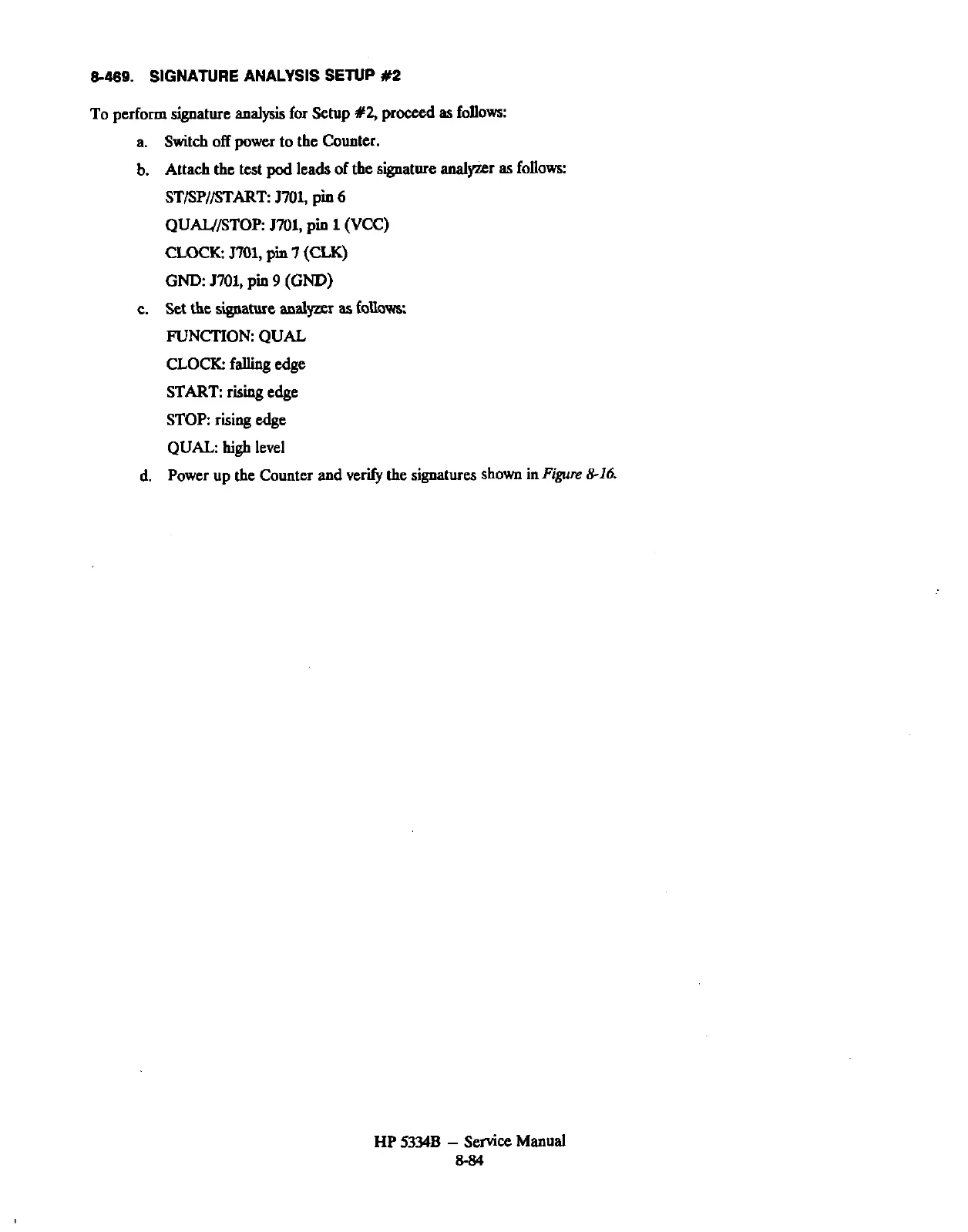

8-469. SIGNATURE ANALYSIS SETUP #2
To perform sipature analysis for Setup #Z, proceed as follows:
a.
Switch off power to the Counter.
b. Attach the test pod leads of the signature analpr as fouows:
STISPIESTART: 1701, pin 6
QUAU/STOP: J701, pio 1 (VCC)
CLOCK: J701, pin 7 (CLK)
GM): J701, pin 9 (GND)
c. Set the signature analyzer as foIlow.
FUNCTION: QUAL
CLOCK: falling edge
START: rising edge
STOP: rising edge
QUAL:
high level
d. Power up the Counter
and verify the signatures shown in Figure 8-16.
HP 5334B - Service Manual
8-04
