4-40. CHANNEL C FREQUENCY RESPONSE AND SENSITIVITY TEST
This test is for HP 5334B's containing Option 030.
Specification: Refer to Table 1-1, HP Model 5334B Specifications, for the Channel C specifications.
Description: Channel C is tested at various frequencies and signal levels.
I TS14-L2

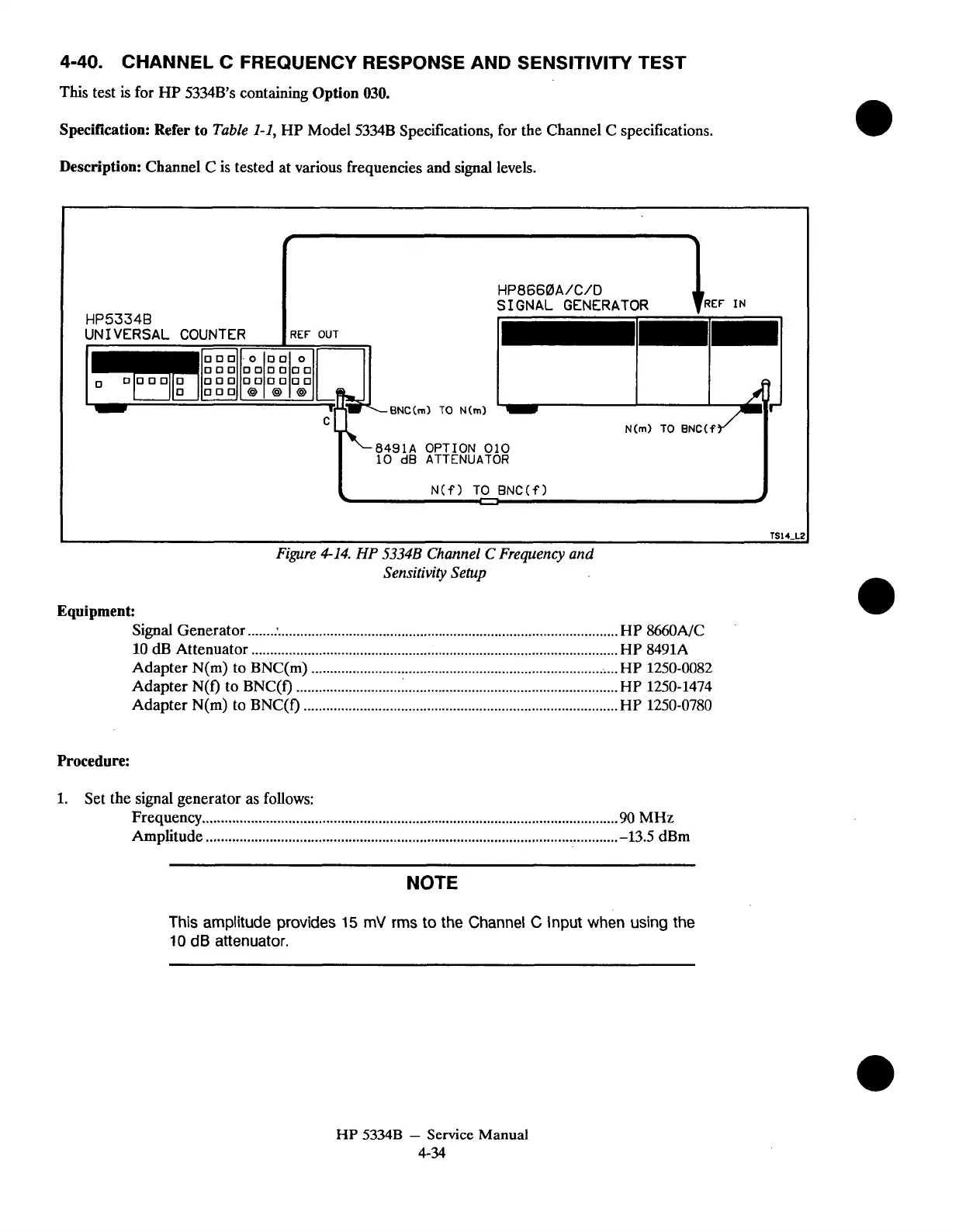

Figure 4-14. HP 5334B Channel C Frequency and
Sensitivity Setup
f \
HP8660A/C/D
SIGNAL GENERATOR REF IN
1 HP5334B
Equipment:
Signal Generator ....... : ........................................................................................... HP 8660AlC
10 dB Attenuator .................................................................................................. HP 8491A
Adapter N(m) to BNC(m) .................................................................................. HP 1250-0082
Adapter
N(f) to BNC(f) ...................................................................................... HP 1250-1474
Adapter
N(m) to BNC(f) .................................................................................... HP 1250-0780
UNIVERSAL COUNTER REF OUT
Procedure:
-==
1.
Set the signal generator as follows:
Frequency
............................................................................................................... 90 MHz
Amplitude
.............................................................................................................. -13.5 dBm
BNC(m) TO N(m) -
N(m) TO BNCCf
8491A OPTION 010
10 dB ATTENUATOR
N(f) T&BNC(f)
J
NOTE
This amplitude provides 15 mV rms to the Channel C Input when using the
10 dB attenuator.
