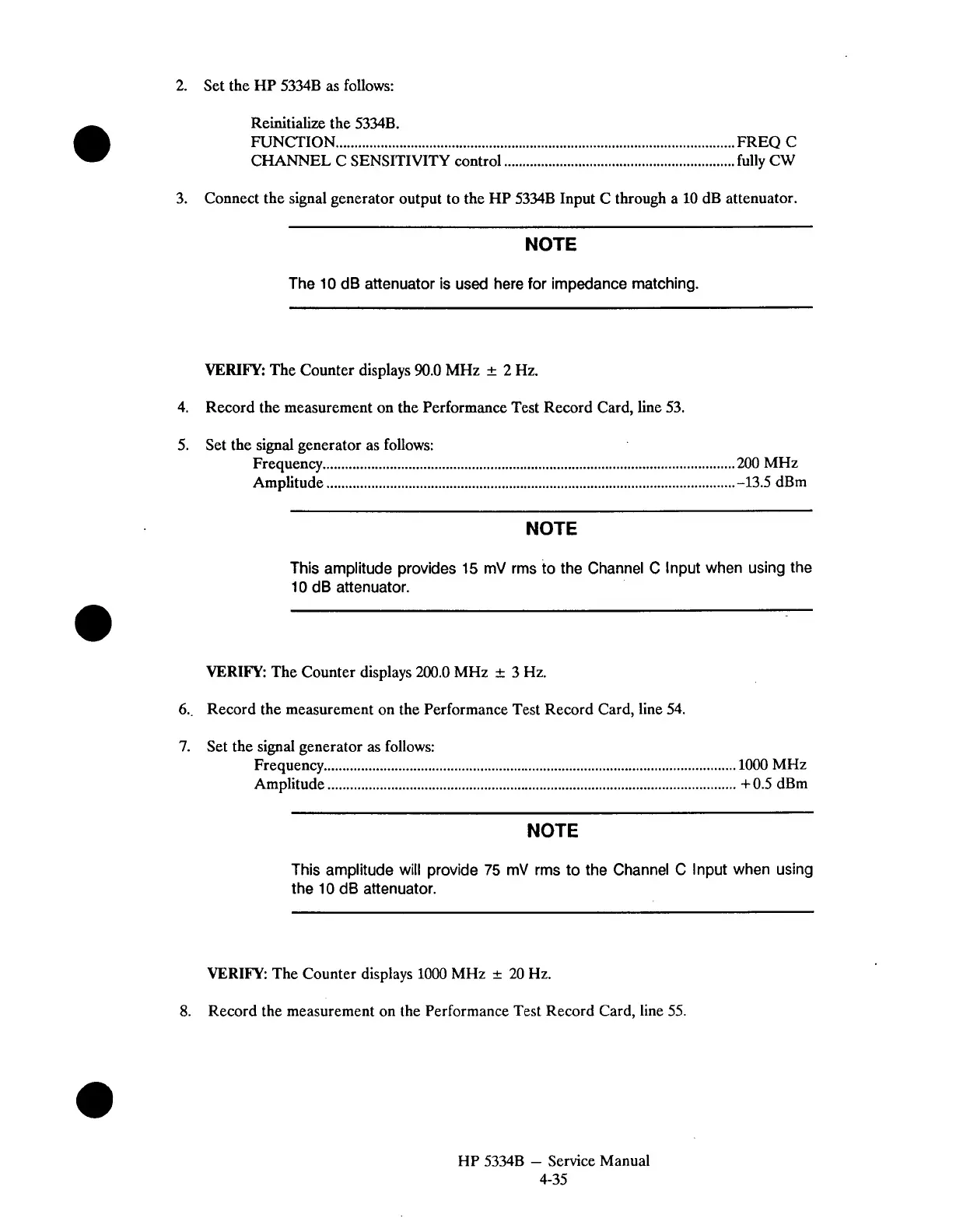

2.
Set the HP
5334B as follows:
Reinitialize the 5334B.
FUNCTION ........................................................................................................... FREQ C
CHANNEL C SENSITIVITY control
.............................................................. fully CW
3.
Connect the signal generator output to the HP 5334B Input C through a 10 dB attenuator.
NOTE
The 10 dB attenuator is used here for impedance matching.
VERIFY: The Counter displays 90.0 MHz + 2 Hz.
4.
Record the measurement on the Performance Test Record Card, line 53.
5.
Set the signal generator as follows:
Frequency
............................................................................................................... 200 MHz
Amplitude
.............................................................................................................. -13.5 dBm
NOTE
This amplitude provides 15 mV rms to the Channel C lnput when using the
10 dB attenuator.
VERIFY: The Counter displays 200.0 MHz + 3 Hz.
6.. Record the measurement on the Performance Test Record Card, line 54.
7.
Set the signal generator as follows:
Frequency
............................................................................................................... 1000 MHz
Amplitude
.............................................................................................................. + 0.5 dBm
NOTE
This amplitude will provide 75 mV rms to the Channel C lnput when using
the 10 dB attenuator.
VERIFY: The Counter displays 1000 MHz * 20 Hz.
8.
Record the measurement on the Performance Test Record Card, line 55.
HP
5334B - Service Manual
4-35
