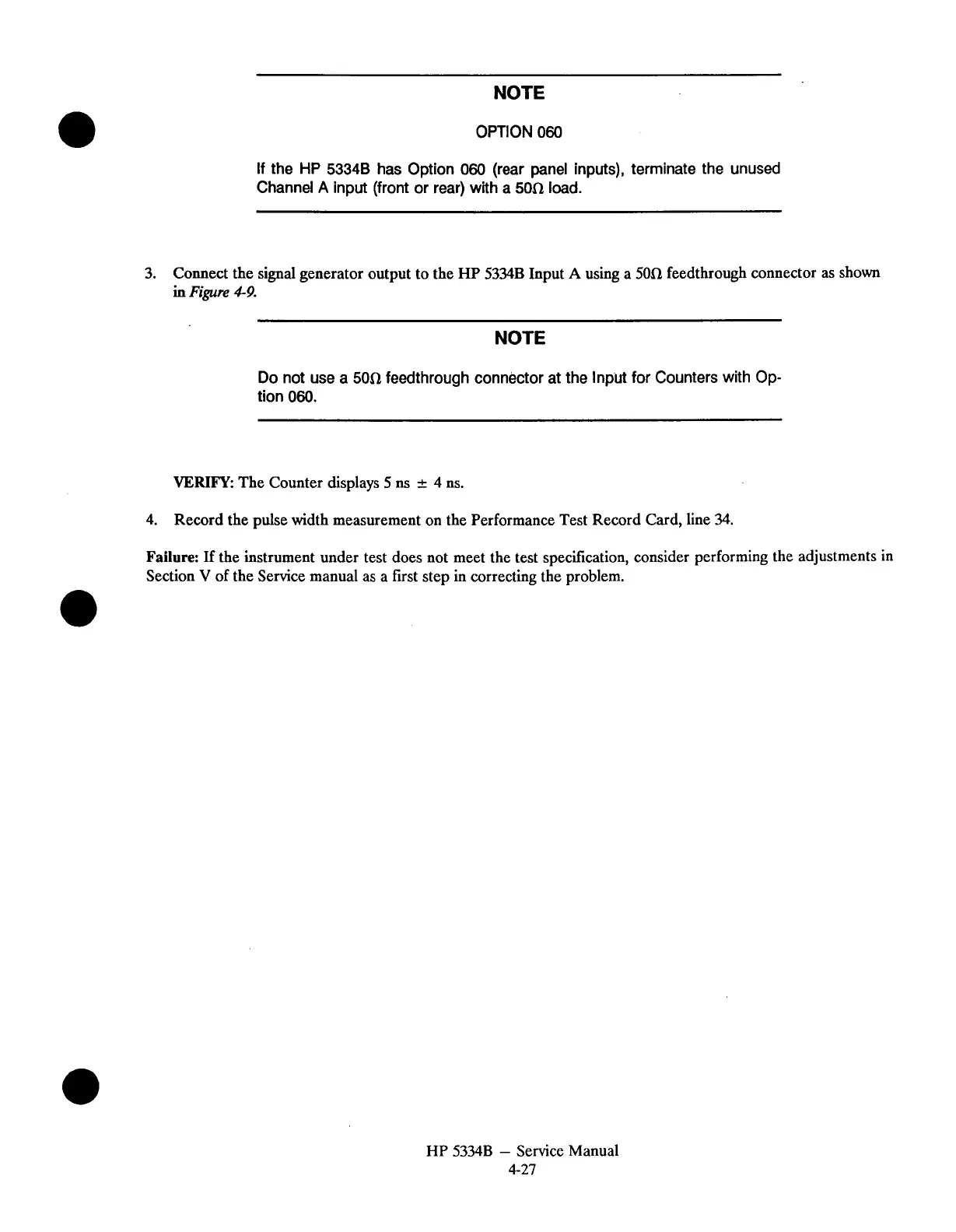

NOTE
OPTION 060
If the
HP
53348 has Option 060 (rear panel inputs), terminate the unused
Channel
A
input (front or rear) with a 50n load.
3.
Connect the signal generator output to the HP
5334B
Input
A
using a
50R
feedthrough connector as shown
in
Figure
4-9.
NOTE
Do not use a 50n feedthrough connector at the Input for Counters with
Op-
tion 060.
VERIFY:
The Counter displays
5
ns
-c
4
ns.
4.
Record the pulse width measurement on the Performance Test Record Card, line
34.
Failure:
If the instrument under test does not meet the test specification, consider performing the adjustments
in
Section
V
of the Service manual as a first step in correcting the problem.
HP
5334B
-
Service Manual
4-27
