HP 5334B Service Manual

10: 1 PROBE
I,
HP3325A
SYNTHESIZER/
FUNCTION GENERATOR
HP5334B
UNIVERSAL COUNTER
I I

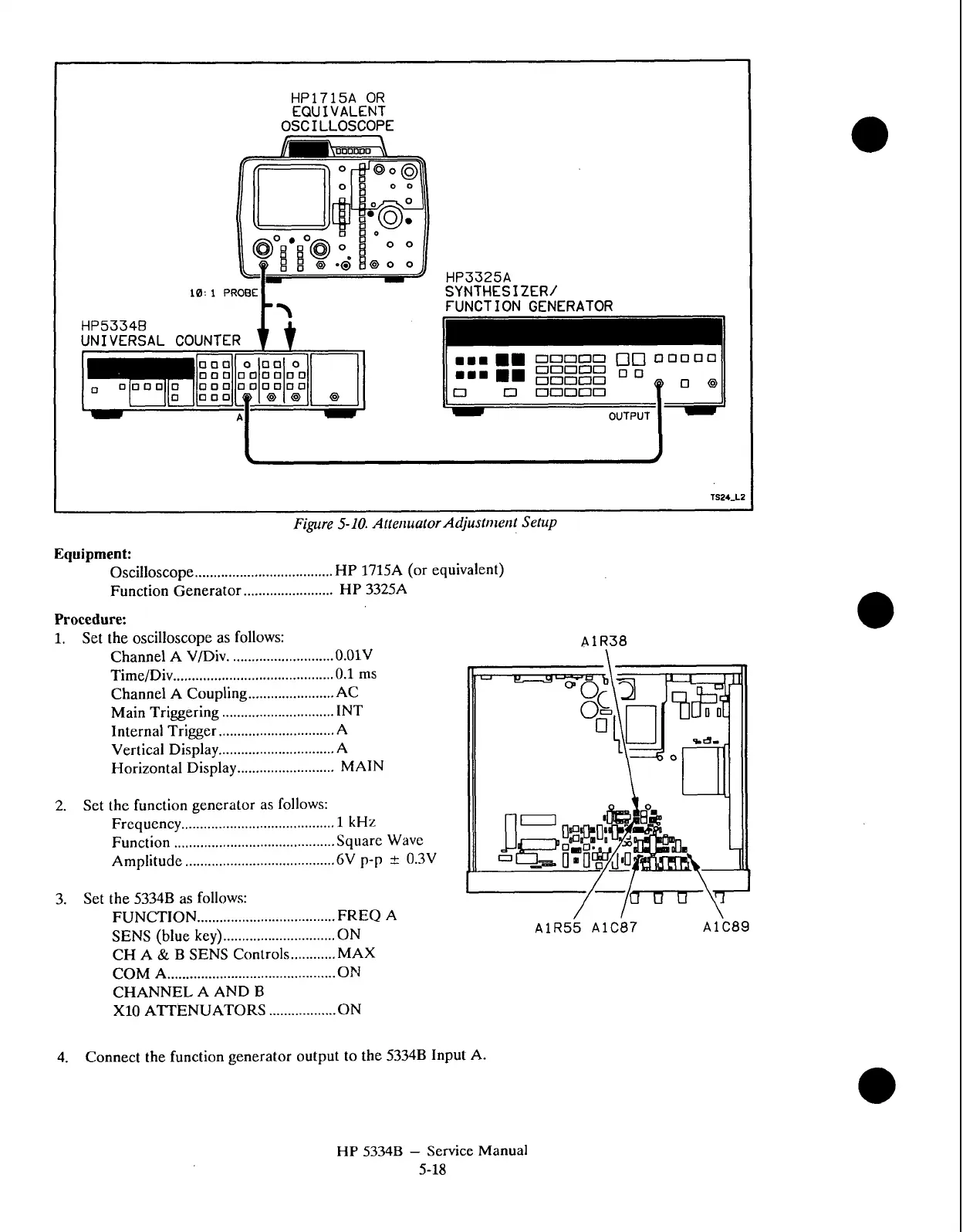

Figure 5-10. A f ferzuator Adjustrlzent Setup
Equipment:
Oscilloscope ..................................... HP 1715A (or equivalent)
........................
Function Generator HP 3325A
Procedure:
1. Set the oscilloscope as follows: A 1 R38
Channel A V/Div. ........................... 0.01V
...........................................
TimeJDiv 0.1 ms
Channel A Coupling ....................... AC
..............................
Main Triggering INT
...............................
Internal Trigger A
...............................
Vertical Display A
..........................
Horizontal Display MAIN
2.
Set the function generator as follows:
Frequency
......................................... 1 kHz
...........................................
Function Square Wave
........................................
Amplitude 6 p-p t 0.3V
3.
Set the 5334B as follows:
.....................................
FUNCTION FREQ A
..............................
SENS (blue key) ON
............
CH A & B SENS Controls
MAX
COM A ............................................. ON
CHANNEL A AND B
..................
XI0 ATTENUATORS ON
4.
Connect the function generator output to the 5334B Input A.
HP 5334B - Service Manual
5-18
