HP 5900 series - Track Configuration Examples; VRRP-Track-NQA Collaboration Configuration Example

134
Task Command
Display information about a specific or all track entries. display track { track-entry-number | all }
Track configuration examples
VRRP-Track-NQA collaboration configuration example
Network requirements
As shown in Figure 33:
• Host A requires access to Host B. The default gateway of Host A is 10.1.1.10/24.
• Switch A and Switch B belong to VRRP group 1. The virtual IP address of VRRP group 1 is 10.1.1.10.
Configure VRRP-Track-NQA collaboration to monitor the uplink on the master and meet the following
requirements:
• When Switch A operates correctly, packets from Host A to Host B are forwarded through Switch A.
• When NQA detects a fault on the uplink of Switch A, packets from Host A to Host B are forwarded
through Switch B.

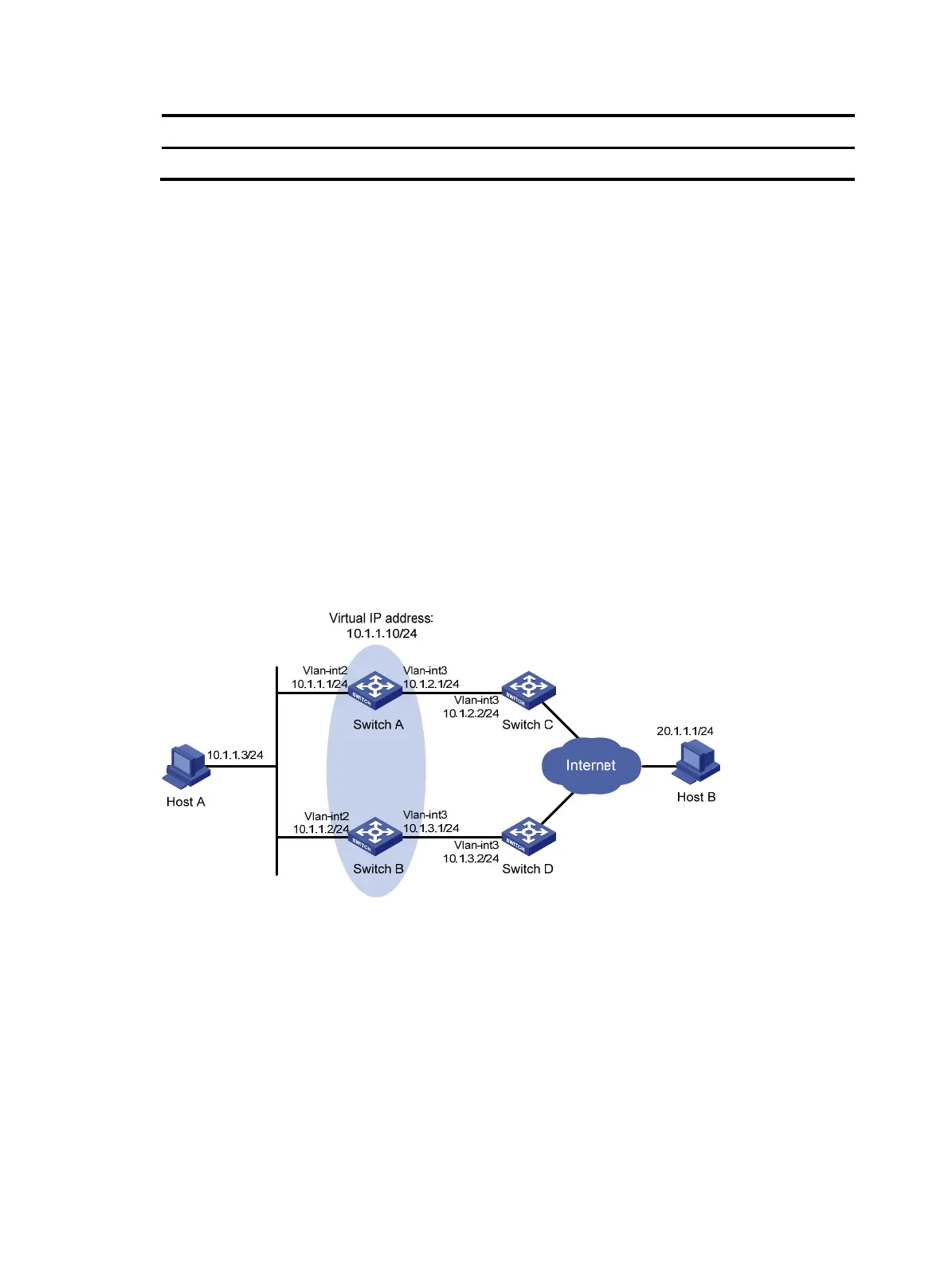

Figure 33 Network diagram
Configuration procedure
1. Create VLANs and assign ports to them. Configure the IP address of each VLAN interface as
shown in Figure 33. (Details not shown.)
2. Config
ure an NQA operation on Switch A:
# Create an NQA operation with the administrator name admin and the operation tag test.
<SwitchA> system-view
[SwitchA] nqa entry admin test
# Configure the operation type as ICMP echo.
[SwitchA-nqa-admin-test] type icmp-echo
# Configure the destination address as 10.1.2.2.
