Jetdirect Menus for Graphical Control Panels
Newer printer/MFP devices support graphical control panels, which may consist of a numeric keypad,
navigation buttons and touch-screen displays.
For Jetdirect menus, graphical control panels typically display 18 characters on a line, and as many as
four lines at a time. In addition, scrolling may be supported to allow display of additional lines.
NOTE: These menus apply to printers/MFPs with a Jetdirect embedded print server, or that
contain a EIO slot in which a Jetdirect EIO print is installed. The menu items displayed depend
on the features supported by the print server.

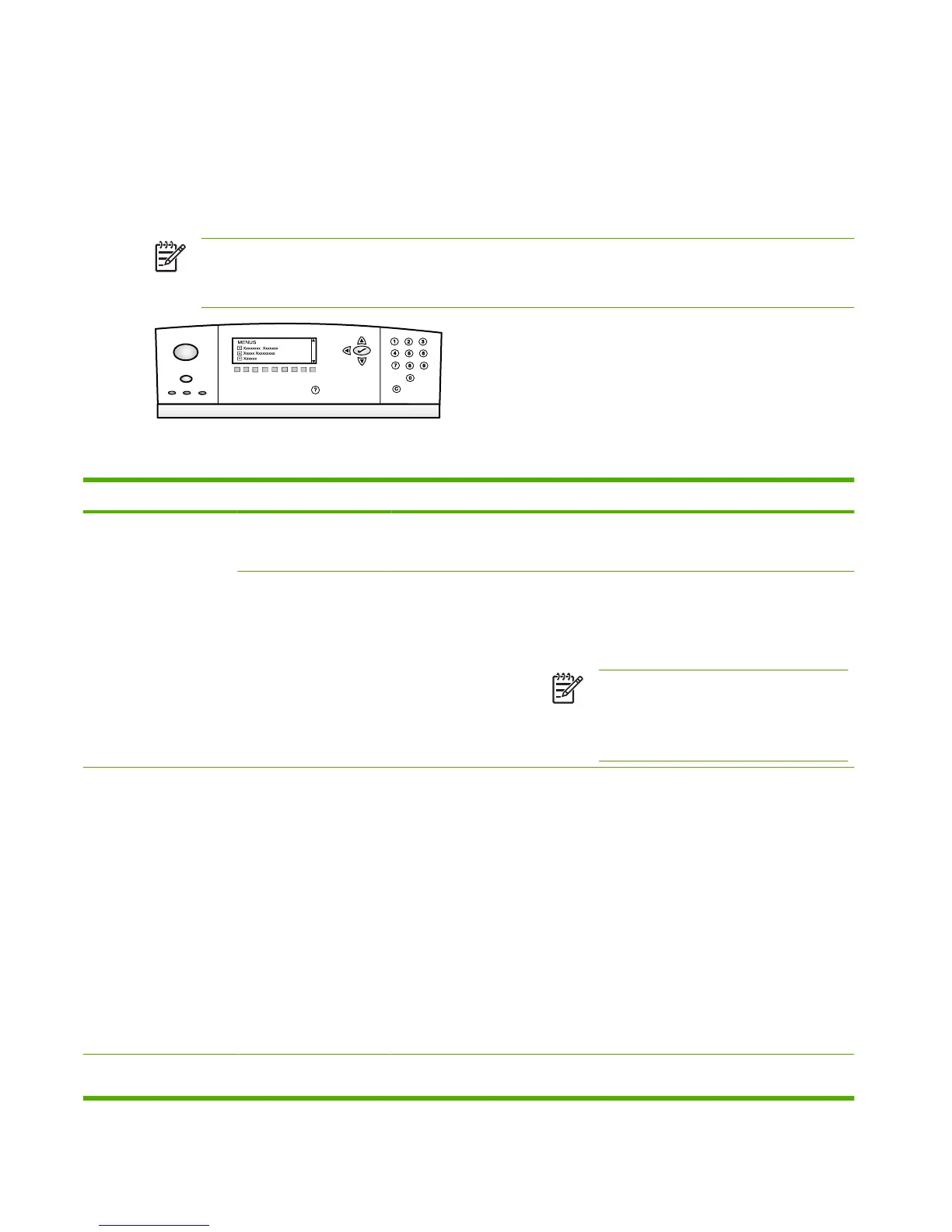

Figure C-1 Example of Graphical Control Panel
Table C-1 Jetdirect EIO Menu on Graphical Control Panel
Menu item Sub-menu item Sub-menu item Values and Description
TCP/IP Enable Off: Disable the TCP/IP protocol.
On (default): Enable the TCP/IP protocol.
Host Name An alphanumeric string, up to 32 characters, used to
identify the device. This name is listed on the
HP Jetdirect configuration page. The default host name
is NPIxxxxxx, where xxxxxx is the last six digits of the
LAN hardware (MAC) address.
NOTE: Names, such as host names, must
begin with a letter and can contain only letters,
numbers, periods (for domain names only), or
hyphens. The underline character (_) is not
allowed.
IPv4 Settings Config Method Specifies the method that TCP/IPv4 parameters will be
configured on the HP Jetdirect print server.
BootP: Use BootP (Bootstrap Protocol) for automatic
configuration from a BootP server.
DHCP (default): Use DHCP (Dynamic Host
Configuration Protocol) for automatic configuration
from a DHCPv4 server. If selected and a DHCP lease
exists, DHCP Release and DHCP Renew menus are
available to set DHCP lease options.
Auto IP: Use automatic link-local IPv4 addressing. An
address in the form 169.254.x.x is assigned
automatically.
Manual: Use the Manual Settings menu to configure
TCP/IPv4 parameters.
DHCP Release This menu appears if Config Method was set to
DHCP and a DHCP lease for the print server exists.
170 Appendix C HP Jetdirect Control Panel Menus (V.36.xx) ENWW
