the “arp” and “ping” commands, HP Web Jetadmin or other management software. For more information
on TCP/IP configuration options, see
TCP/IP Configuration on page 17.
When powered on, an HP Jetdirect print server that is unable to retrieve a valid IP address from the
network will automatically assign itself either a legacy default IPv4 address 192.0.0.192 or a link-local
address in the range 169.254.1.0 to 169.254.254.255. The IP address configured on your print server
can be determined by inspecting the Jetdirect configuration page for the print server. See
TCP/IP
Configuration on page 17 for more information.
If the legacy default IPv4 address 192.0.0.192 has been assigned, you must temporarily set up your
computer with the same IP network number or establish a route to the print server before you can gain
access to the embedded Web server.
To access the embedded Web server, perform the following steps:
1. Run a supported Web browser.
2. Enter the IP address or fully qualified domain name (FQDN) of the print server as the URL.
NOTE: For browsers that support direct IPv6 address entries, an IPv6 address is typically
enclosed in brackets ([ ]). See your system documentation.
If you do not know the FQDN for the device (for example, printer1.support.hp.com), enter
the host name (in this example, printer1). Your system may be able to resolve an IP address
for the device.

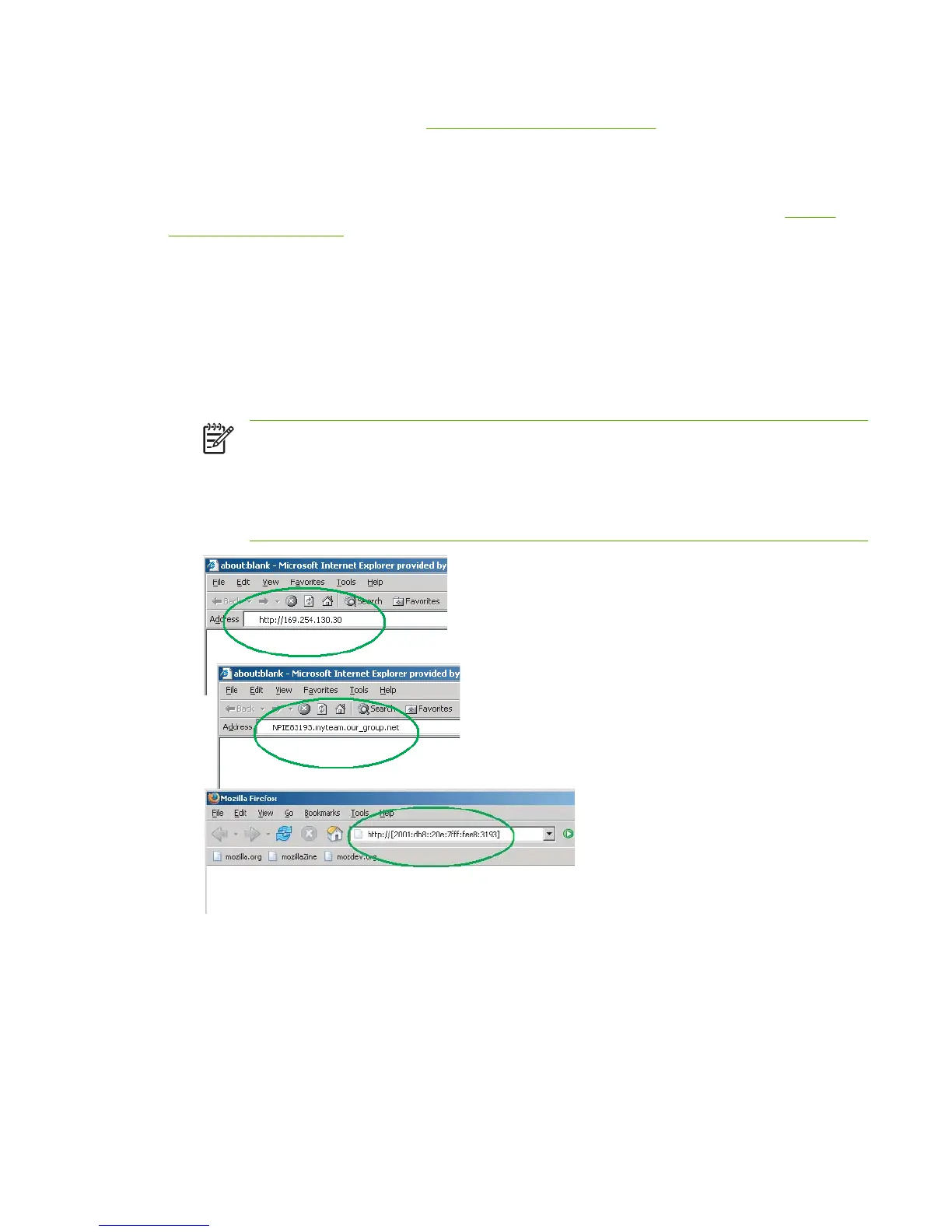

Figure 4-2 Entering an IP Address or Fully Qualified Domain Name
3. If prompted with security alerts, click Yes to proceed.
By factory default, HP Jetdirect print servers and printers/MFPs with IPsec support are configured
as a secure site, using an X.509v3-compliant certificate installed on the print server for
identification. Encrypted browser communications through HTTPS (secure HTTP) is required for
initial access.
ENWW Viewing the Embedded Web Server 63
