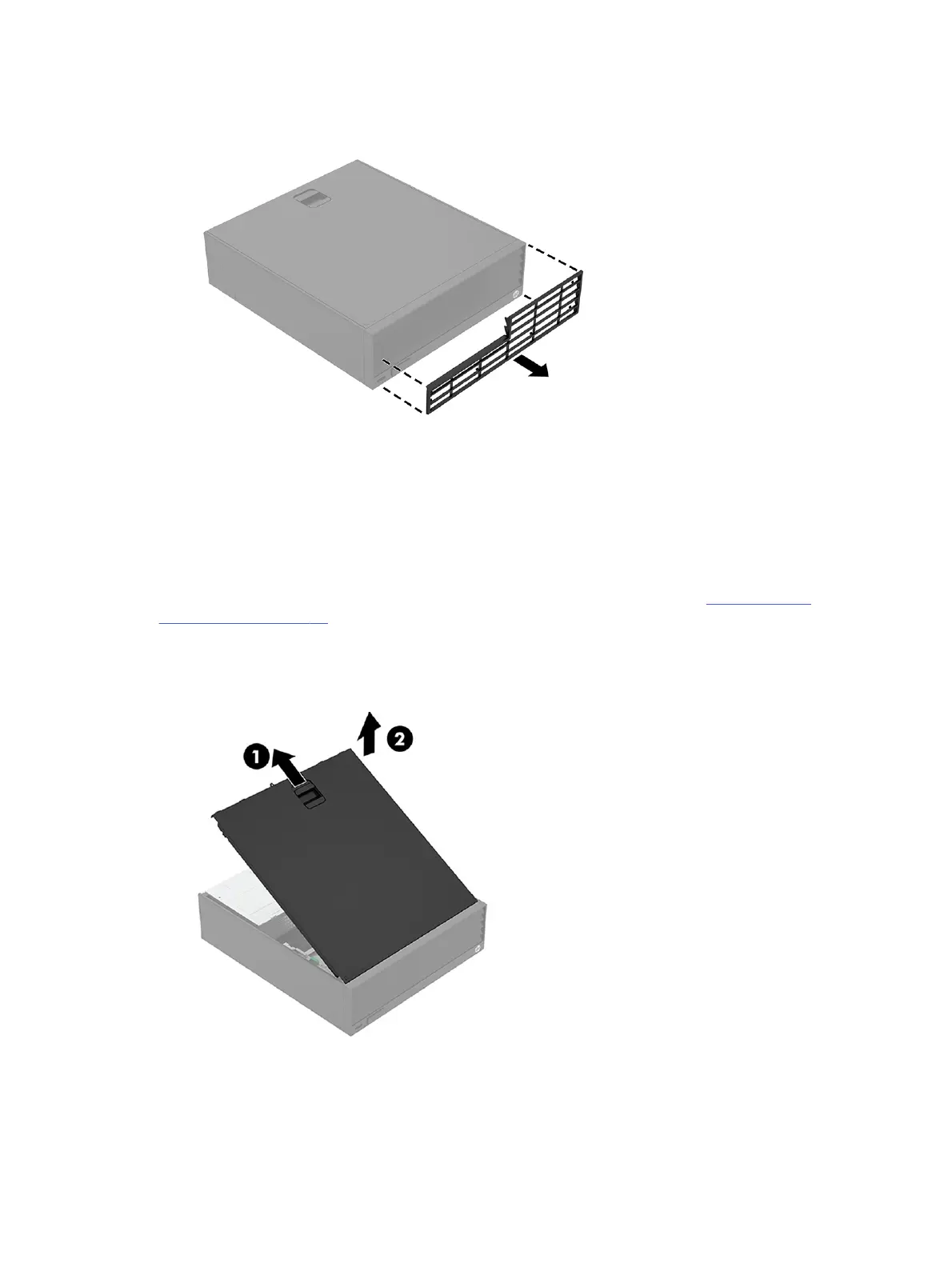

Pull the dust filter straight off the outside of the front bezel.
To install the dust filter, reverse the removal procedure.
Access panel
To remove the access panel, use this procedure and illustration.
Before removing the access panel, prepare the computer for disassembly (see Preparation for
disassembly on page 20).
Remove the access panel:
■
Slide the release latch (1), and then lift the panel (2) up and away from the computer.
To install the access panel, reverse the removal procedure.
Access panel
21
