Power States
The server has three power states:
• standby power
• full power
• off
To get to standby power state plug the power cord into the appropriate receptacle on the rear of
the chassis. The front panel Power button is not turned on.
Full power occurs when the power cord is plugged into the appropriate receptacle and either the
power is activated through the iLO 2 MP PC command, or the Power button is activated.
In the off state, the power cords are not plugged in.
Table 9 lists the server power states.
Table 9 Power States
dc Voltage
Applied
ac Voltage
Applied
Power Activated through the iLO 2 MP PC
Command; or Front Panel Power Button
Activated
Power Cable
Plugged Into
Receptacle
Power States
NoYesNoYesStandby power
YesYesYesYesFull power
NoNoNoNoOff
NOTE: If the power restore feature is set to Always On through the iLO 2 MP PR command, the
server can automatically power on to the full power state.
Figure 15 shows the rear panel power receptacles and power supply LEDs.

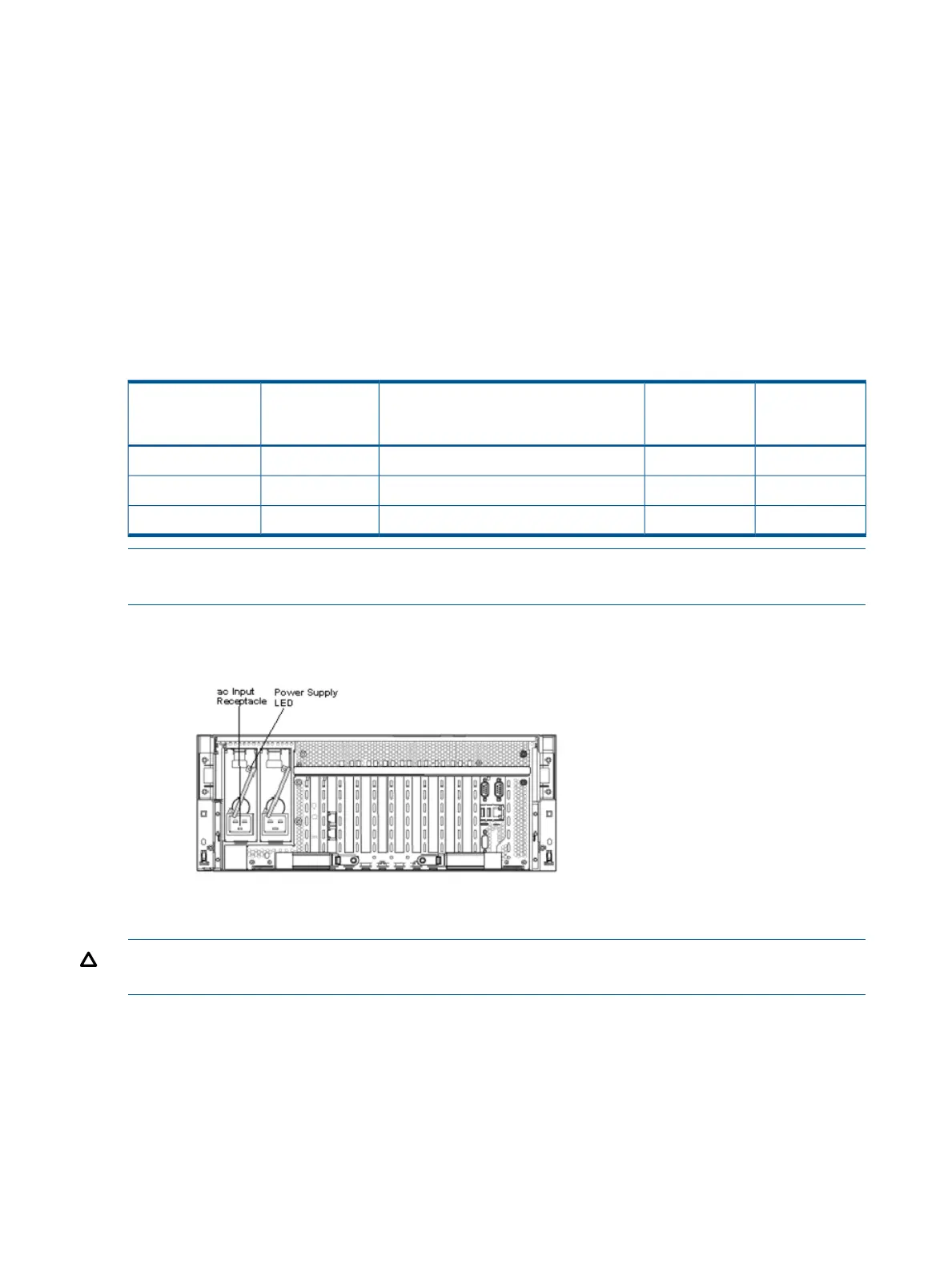

Figure 15 Rear Panel Power Receptacles and Power Supply LEDs
Attaching the Hook-and-Loop Strap to the Bulk Power Supply and Power Cord
CAUTION: If you do not fasten the hook-and-loop strap to the bulk power supply and the power
cord, the power cord might pop off the back.
To attach the hook-and-loop strap to the bulk power supplies and power cord, follow these steps:
1. Attach the hook-and-loop strap to the handle on the bulk power supply.
34 Installing the System
