HP J8697A Advanced Traffic Management Guide

6-26
Stack Management for the 3500, 3500yl, 6200yl and 6600 Switches
Configuring Stack Management

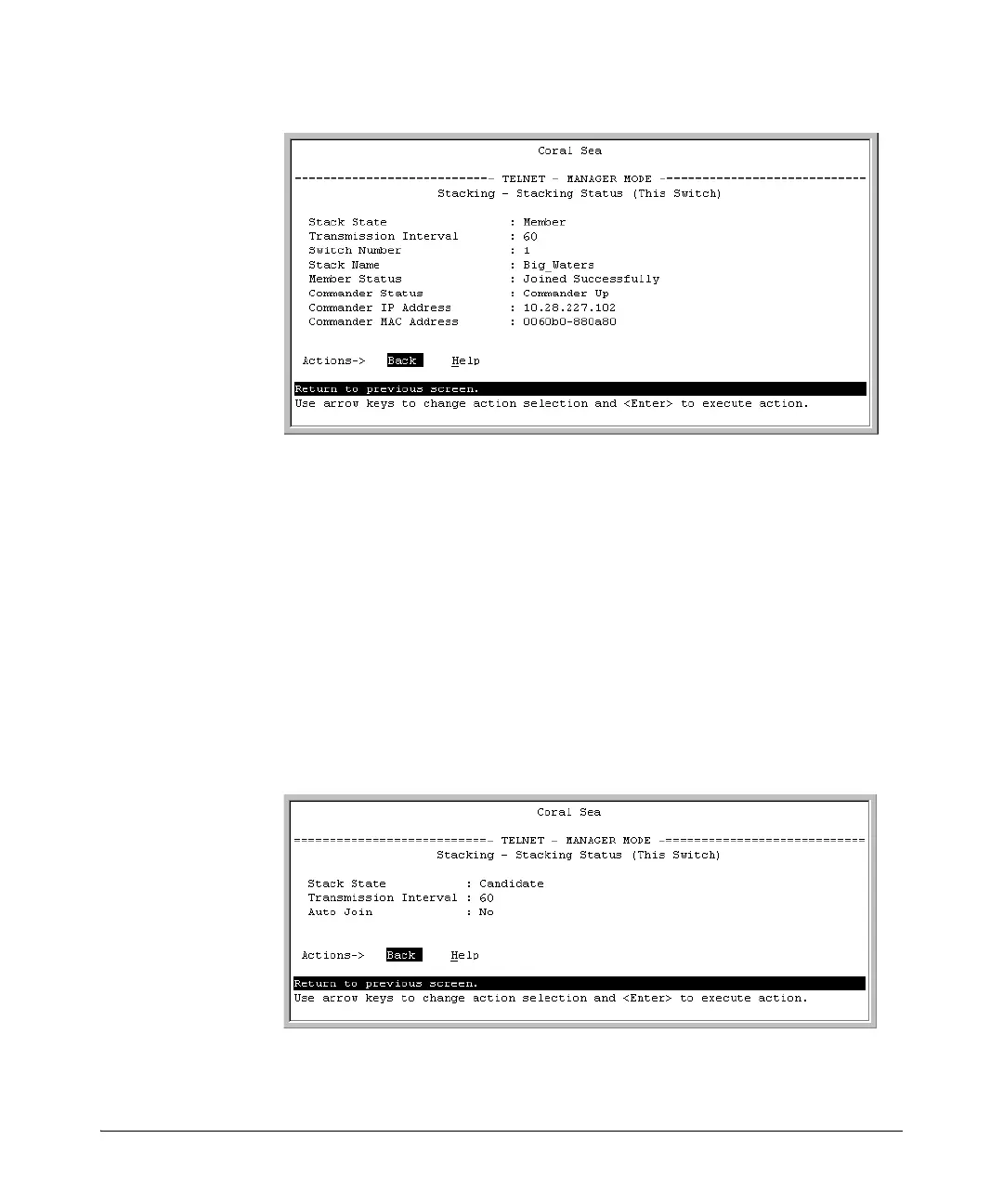

Figure 6-20. Example of a Member’s Stacking Status Screen
Viewing Candidate Status. This procedure displays the Candidate’s
stacking configuration.
To display the status for a Candidate:
1. Use Telnet (if the Candidate has a valid IP address for your network) or
a direct serial port connection to access the menu interface Main Menu
for the Candidate switch and select
9. Stacking ...
1. Stacking Status (This Switch)
You will then see the Candidate’s Stacking Status screen:
Figure 6-21. Example of a Candidate’s Stacking Screen

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
