12-50

Configuring for Network Management Applications

LLDP (Link-Layer Discovery Protocol)

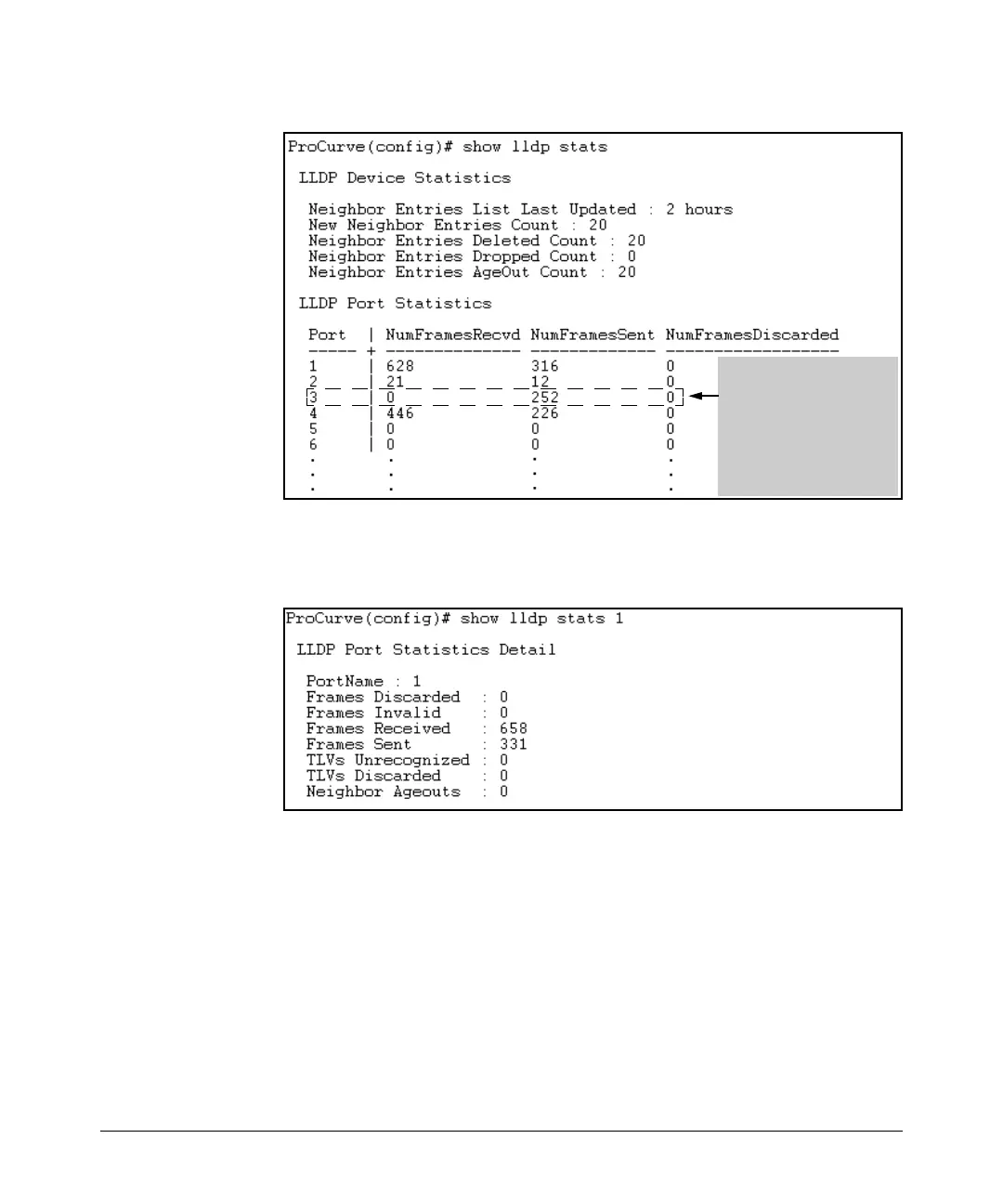

Figure 12-16. Example of a Global LLDP Statistics Display

Figure 12-17. Example of a Per-Port LLDP Statistics Display

Counters showing frames

sent on a port but no

frames received on that

port indicates an active

link with a device that

either has LLDP disabled

on the link or is not LLDP-

aware.
