HP ProCurve 2510-24 User Manual

B-21
Monitoring and Analyzing Switch Operation
Status and Counters Data

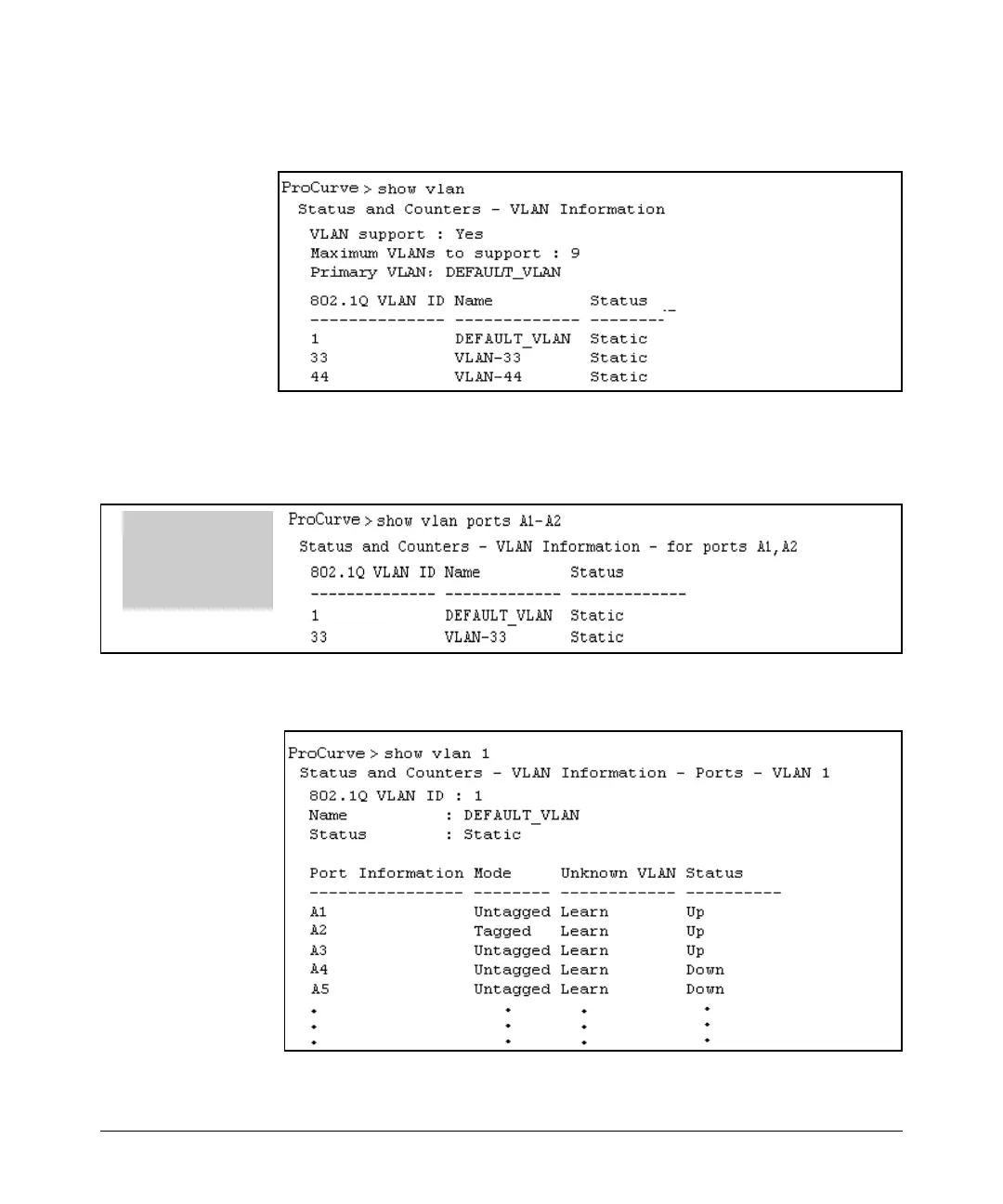

Listing the VLAN ID (VID) and Status for ALL VLANs in the Switch.
Figure B-15. Example of VLAN Listing for the Entire Switch
Listing the VLAN ID (VID) and Status for Specific Ports.
Figure B-16. Example of VLAN Listing for Specific Ports
Listing Individual VLAN Status.
Figure B-17. Example of Port Listing for an Individual VLAN
Because ports A1
and A2 are not
members of VLAN-
44, it does not appear
in this listing.

HP ProCurve 2510-24 Specifications

General

Model	HP ProCurve 2510-24
Switching Capacity	8.8 Gbps
Layer	Layer 2
Form Factor	Rack-mountable
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
Power	AC 120/230 V (50/60 Hz)
Management	Web, SNMP, CLI
Features	VLAN support, QoS
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Temperature	0 to 40 °C
Operating Humidity	15% to 95% (non-condensing)
Dimensions	44.25 x 17.3 x 4.45 cm
