10-4

Monitoring and Analyzing Switch Operation

Status and Counters Data

Monitoring and Analyzing

Switch Operation

Menu Access To Status and Counters

Beginning at the Main Menu, display the Status and Counters menu by select-

ing:

1. Status and Counters

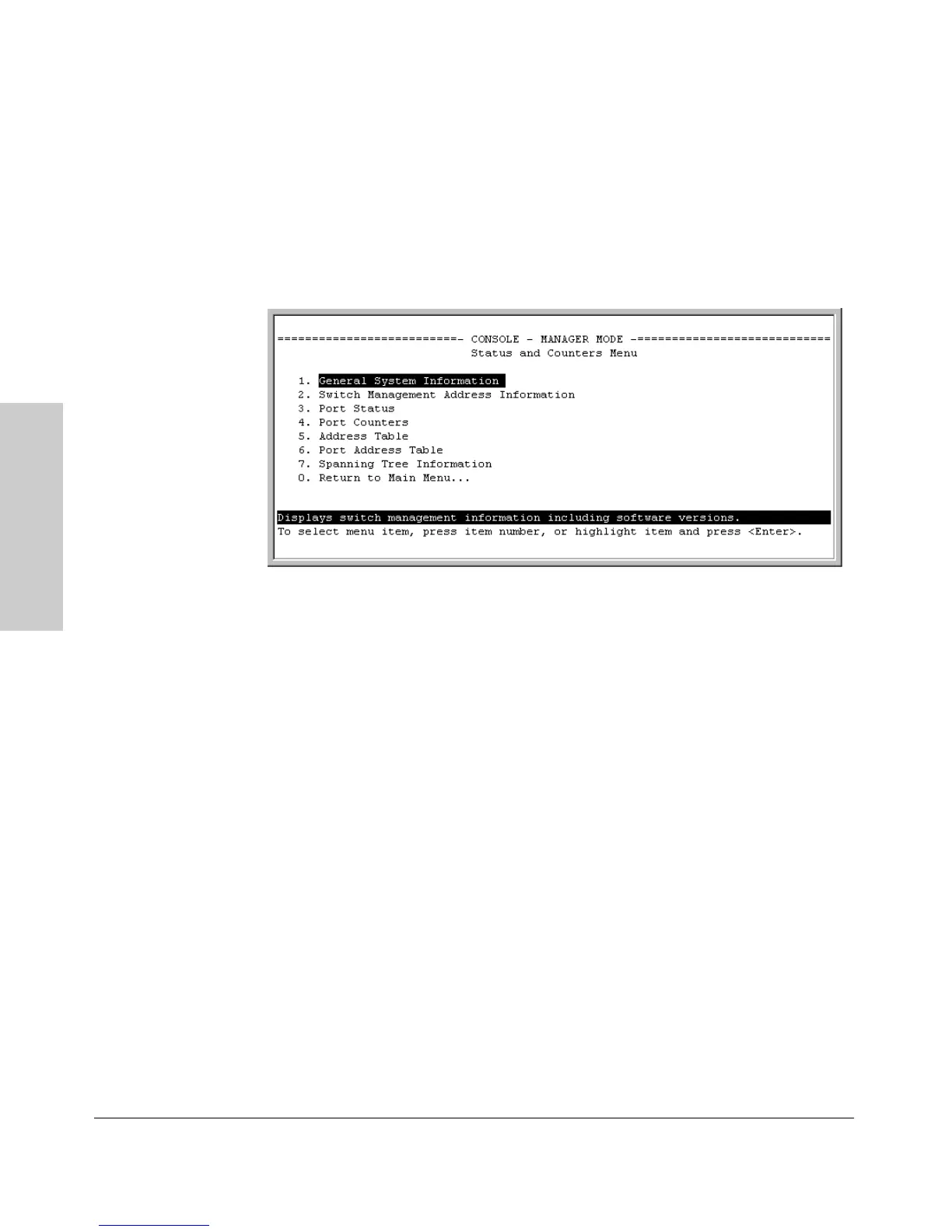

Figure 10-1. The Status and Counters Menu

Each of the above menu items accesses the read-only screens described on

the following pages. Refer to the online help for a description of the entries

displayed in these screens.
